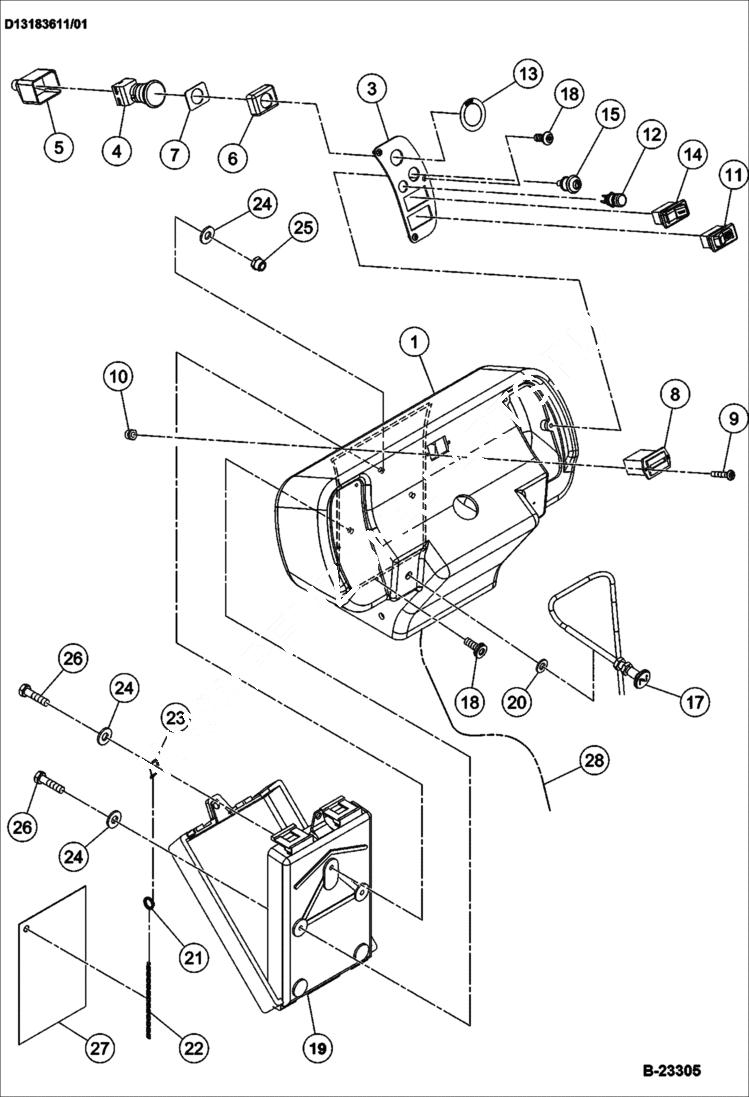

Запчасти Bobcat BCA12 INSTRUMENT PANEL ASSEMBLY CONSOLE

1

IR13165899

Panel Instrument

3

IR59184127

Panel emergency

4

STOP SWITCH NLA - Emergency Stop - Order IR43910579 (switch) & IR43910587 (washer)- Was IR59111450 - A

5

IR59108605

Dust Boot bottom

6

IR59108100

Dust Boot top

7

IR59109116

WASHER

8

IR59165001

HOURMETER

9

IR59229492

BOLT

10

IR59137448

LOCKNUT

11

IR13305420

SWITCH, PARK BRAKE Was IR59214734 - D

12

IR58771668

SWITCH push button

13

IR59239897

Decal stop

14

IR59214742

Switch brake test

15

IR59214726

Indicator warning

17

IR13186432

Choke Cable

18

IR13198015

BOLT

19

IR59185074

Manual Case

20

IR96714308

WASHER Was IR96741046 - A

21

IR58880303

Split Ring

22

IR58874389

CHAIN

23

IR58874397

RETAINING RING

24

IR95922324

WASHER

25

IR96704598

LOCKNUT

26

IR96714258

SCREW Was IR96701461 - A

27

IR59252833

Manual safety label

28

IR13179924

Harness console wire
