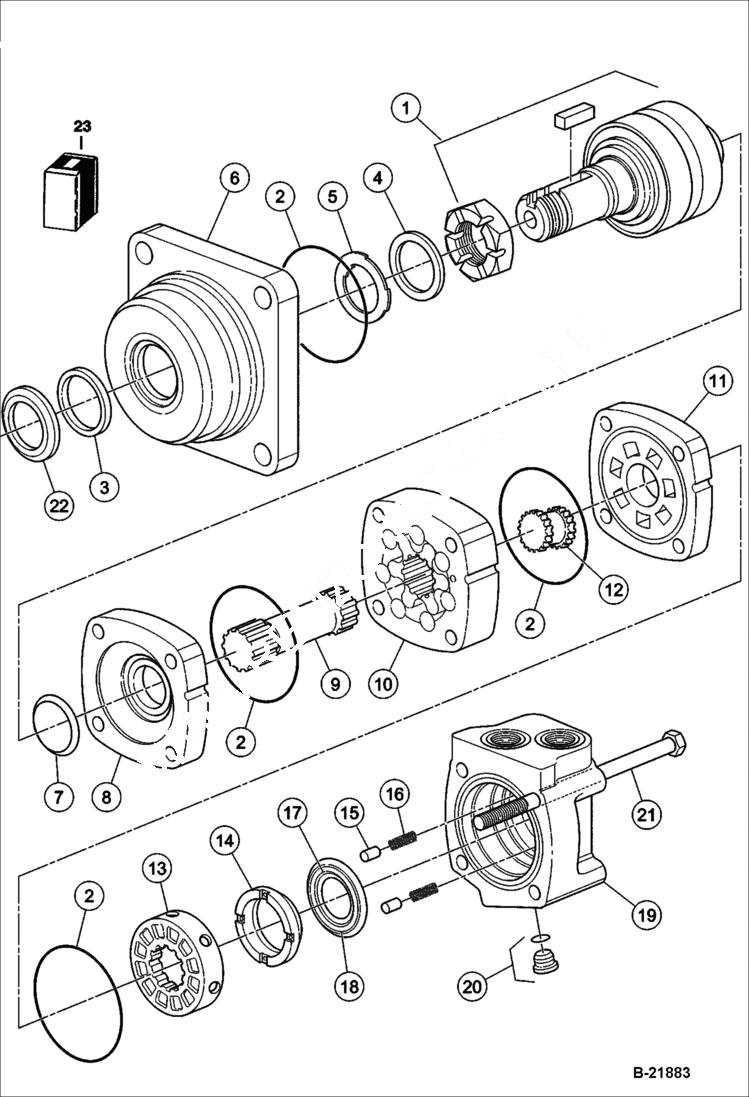

Запчасти Bobcat BCA12 DRIVE MOTOR (Internal Breakdown) DRUM

1

IR13247457

Kit shaft

2

IR54562798

Seal shaft exclusion

3

IR54562806

Seal shaft

4

IR54562806

Seal shaft

5

IR54562814

BackUp Ring

6

Plate NSS

7

IR54562855

Seal shaft face

8

Wear Plate NSS

9

IR54562897

DRIVE

10

Geroler Assy NSS

11

Plate NSS

12

IR54563002

Valve drive

13

IR54562921

VALVE

14

Plate NSS

15

IR54562970

PIN

16

IR54562988

SPRING

17

Seal NSS

18

IR13048566

Seal outer face

19

Housing NSS

20

IR54562996

PLUG

21

IR13104567

BOLT

22

IR13247853

Seal Guard

23

IR13247465

SEAL KIT Was IR13247435 - D
