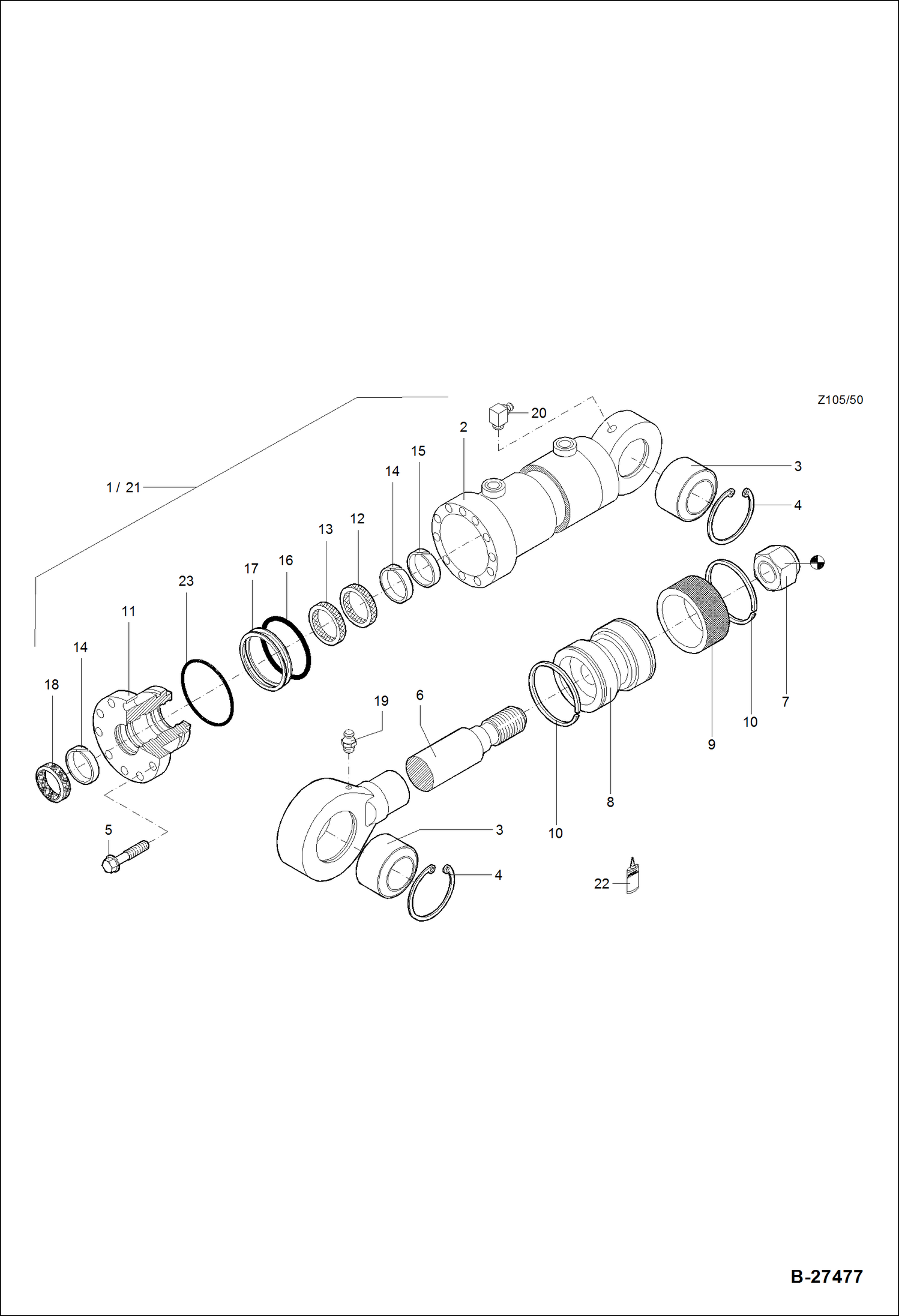

Запчасти Bobcat ZX75 HYDRAULIC CYLINDER-BOOM INTERMEDIATE CIRCULAR HYDRAULIC SYSTEM

1

6501059000

HYDR. CYLINDER W/Ref. 2-18, 23

2

6501059003

CYLINDER BARREL

3

1950000814

LINKAGE BEARING

4

1456622363

CIRCLIP

5

1017370230

BOLT M 12X40

6

6501059011

PISTON ROD

7

1212251832

NUT M 36X3

8

0501057015

PISTON

9

1634935036

PISTON SEAL

10

5074609210

SEGMENT

11

0501052017

HEAD

12

1965055050

SEAL

13

1960955050

GROOVE

14

5060501050

ROAD SEAL

15

5060502050

ROD SEAL

16

1971958518

O-RING 94,2X5,7

17

1966960109

BACK UP RING

18

1974950050

SCRAPER RING

19

1607003006

GREASE NIPPLE

20

1609003006

GREASE NIPPLE

21

1976999385

SEAL KIT

22

GLUE NLA - Was MCS001036A - A

23

1971956118

O-RING
