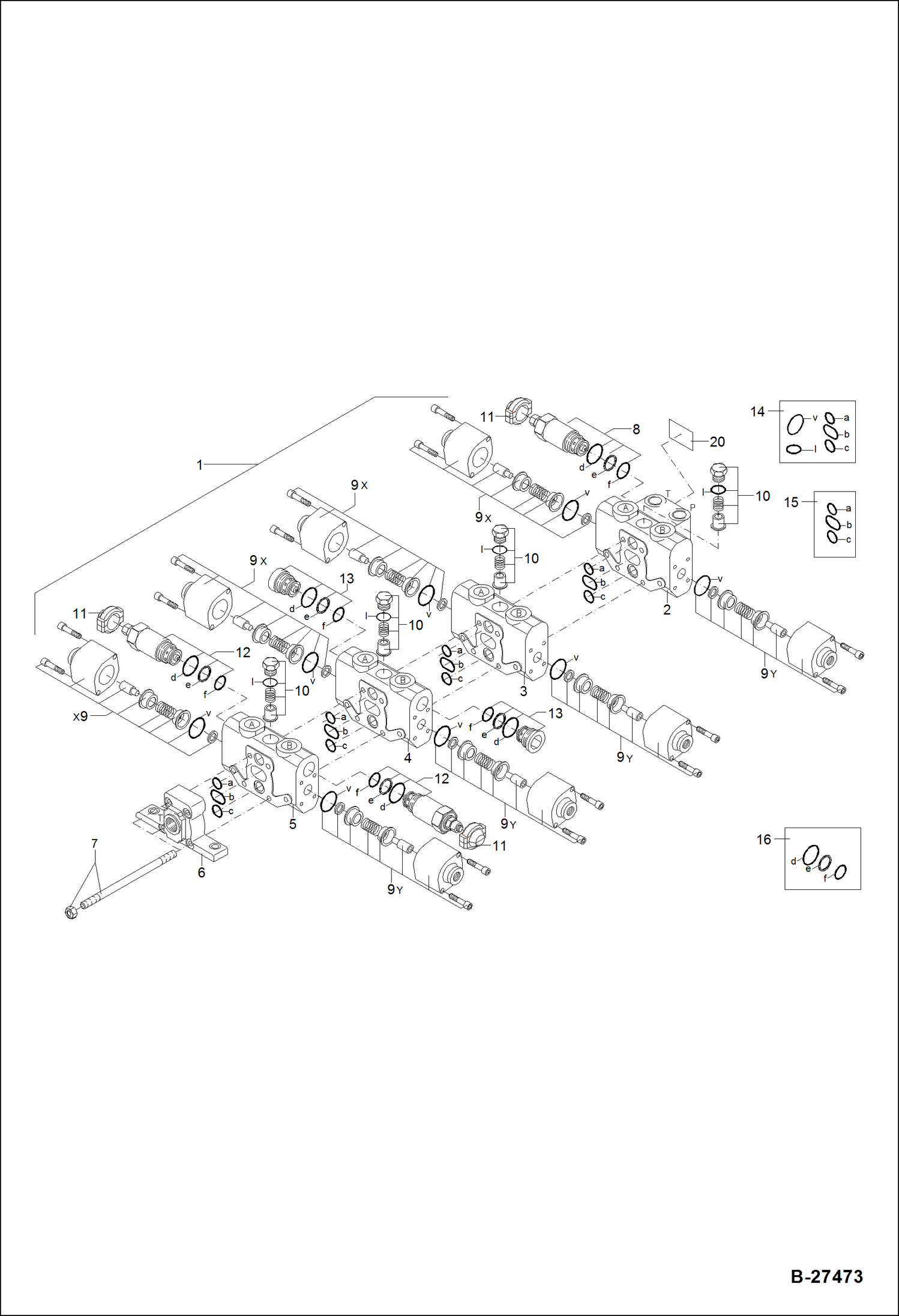

Запчасти Bobcat ZX75 VALVE BANK HYDRAULIC SYSTEM

1

5606660454

VALVE ASSY 4SM12 - 4 section valve bank - Ref. 2-7

2

5606664272

INLET VALVE W/Ref. 8-11

3

5606664178

DIRECTIONAL VALVE W/Ref. 9-10

4

5606664273

DIRECTIONAL VALVE W/Ref. 9-10,13

5

5606664304

DIRECTIONAL VALVE W/Ref. 9-12

6

5606664373

OUTLET VALVE

7

5606664268

TIE ROD KIT

8

5606664224

PRESSURE RELIEF VALVE 230bar

9

5606664182

HYD. OPERATION KIT left & right

10

5606656636

VALVE

11

5606664184

LOCKING COVER

12

5606664224

PRESSURE RELIEF VALVE 250bar

13

5606656717

ANTI-CAV VALVE

14

5606656639

SET OF SEALS

15

5606656908

SEAL KIT

16

5606664223

SEAL KIT

20

PLATE, NAME NLA
