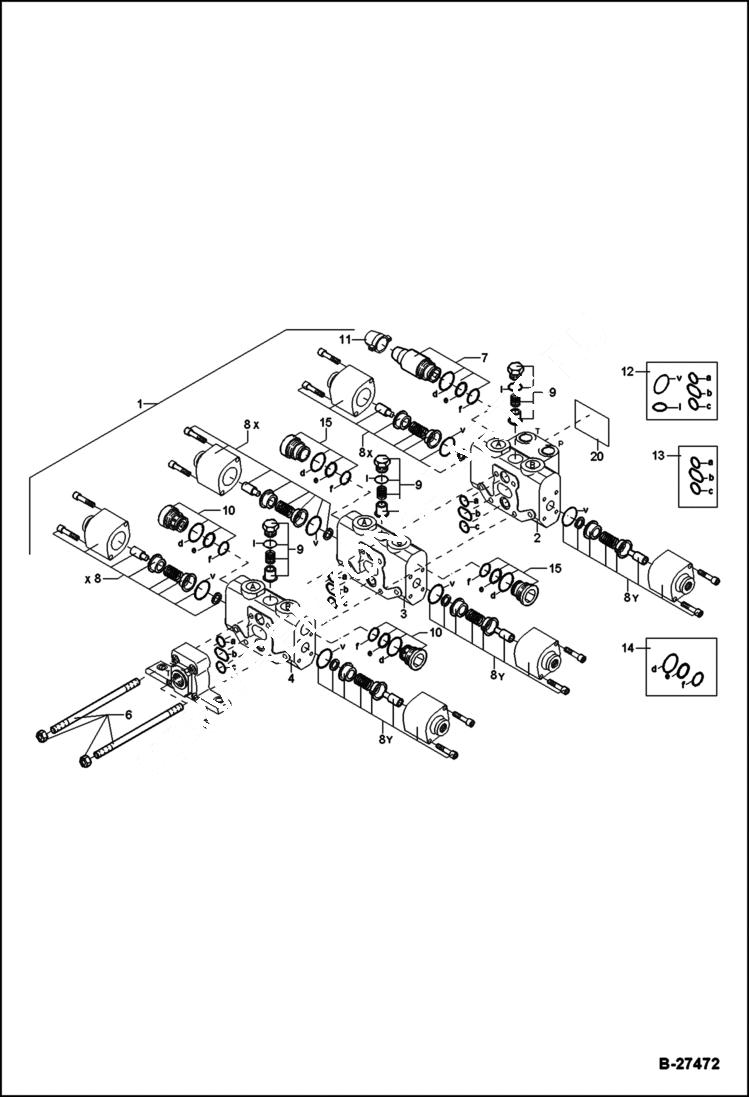

Запчасти Bobcat ZX75 VALVE BANK HYDRAULIC SYSTEM

1

5606665063

VALVE, CONTROL 3SM12 - 3 section valve bank - Ref. 2-6 - Was 5606660408 - A

2

5606664272

INLET VALVE W/Ref. 7-9,11

3

5606664178

DIRECTIONAL VALVE W/Ref. 8-9

4

5606664273

DIRECTIONAL VALVE W/Ref. 8-10

5

5606664180

OUTLET VALVE

6

5606664181

TIE ROD KIT

7

5606664224

PRESSURE RELIEF VALVE 230bar

8

5606664182

HYD. OPERATION KIT left & right

9

5606656636

VALVE

10

5606656717

ANTI-CAV VALVE

11

5606664184

LOCKING COVER

12

5606656639

SET OF SEALS

13

5606656908

SEAL KIT

14

5606664223

SEAL KIT

15

5606656769

VALVE TAPER

20

PLATE, NAME NLA
