Запчасти Bobcat ZX75 CONNECTION PLATE WITH VALVES HYDRAULIC SYSTEM

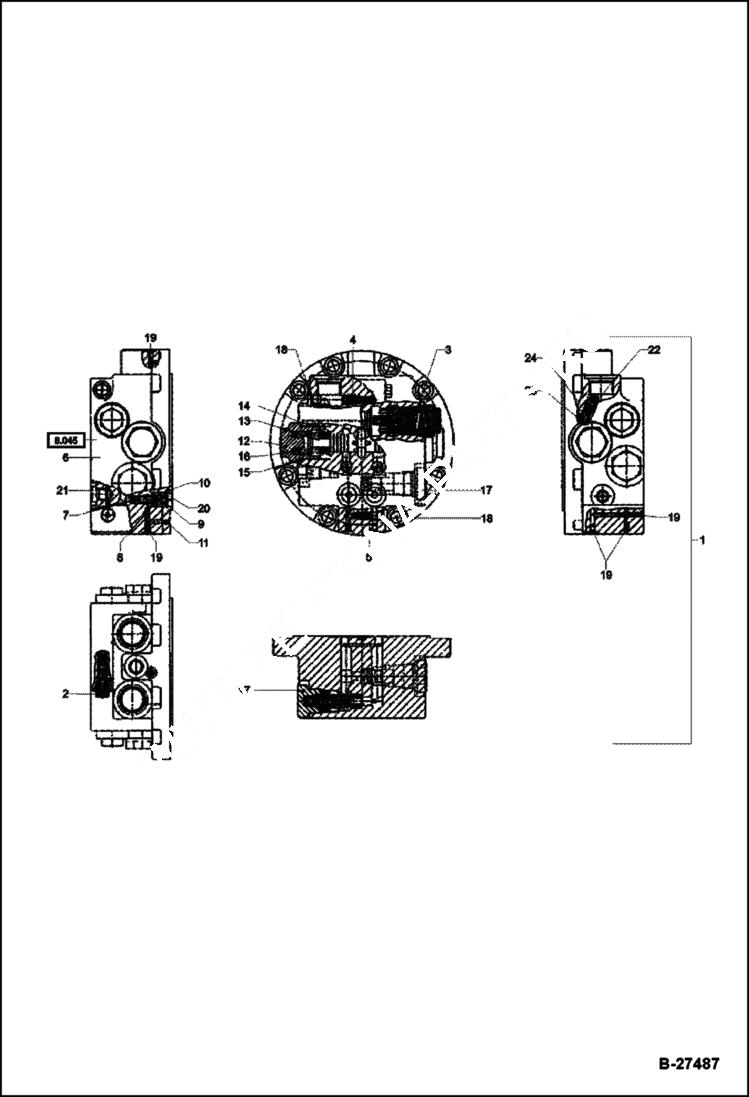

Схема запчастей Bobcat ZX75 - CONNECTION PLATE WITH VALVES HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5364663523

CONNECTION PLATE Ref. 2-23

2

5364663096

PRESS RELIEF VALVE

3

5364663388

CHECK VALVE

4

5364663095

COMPENSATION VALVE

5

5364663389

SHUTTLE VALVE

6

5364663390

CONNECTION PLATE

7

5364663391

PISTON VALVE

8

5364663392

SPRING PLATE

9

5364663393

SPRING PLATE

10

5364663394

PRESS SPRING

11

5364663395

NOZZLE

12

5364663396

PLUG

13

5364663397

PISTON VALVE

14

5364663398

SPRING PLATE

15

1971956229

O-RING 34,59X2,62

16

5364663399

PRESS SPRING

17

5364663524

PRESS RELIEF VALVE 300 BAR

18

5364663401

PLUG M 10X1

19

5364656173

PLUG

20

1456622716

CIRCLIP 16X1

21

5364663402

PLUG M 12X1,5

22

5364655902

BOLT

23

5364655903

THROTTLE

24

5364663403

THROTTLE PIN

Выбрано товаров: 24
