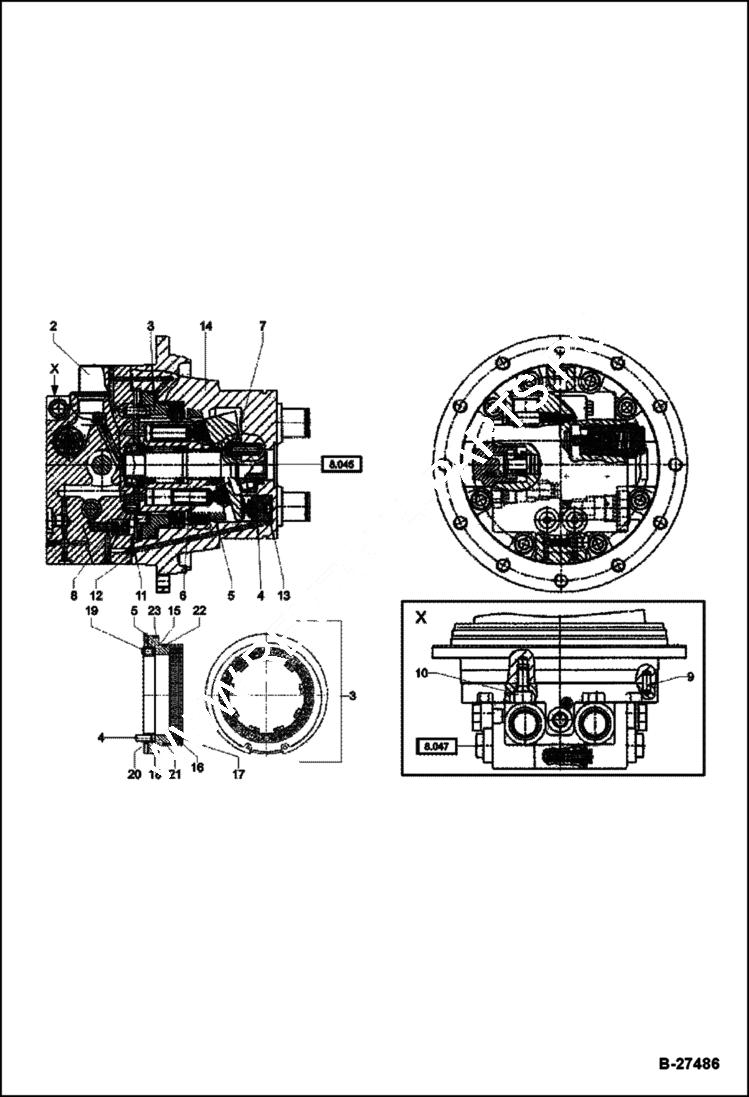

Запчасти Bobcat ZX75 TRAVEL DRIVE GEAR HYDRAULIC SYSTEM

2

5364663523

CONNECTION PLATE See Illustration CONNECTION PLATE WITH VALVES/ B27487 300BAR

3

5364663097

PRESS RING POS.15-25

4

5364663387

PIN

5

1455622982

CIRCLIP 155X4

6

DRIVING GEAR NLA - Was 5364663377 - A

7

5364663379

ROTATING BALL

8

1381000730

PIN

9

1371450930

PIN

10

1045707529

BOLT M 12X25

11

5364663092

O-RING S-FPM9 158,42X2,62

12

5364663091

SEAL RING 7,65X1,68

13

5364663380

PRESS SPRING

14

AXLE NLA - Was 5364663381 - A

15

5364663382

PRESS RING

16

5364663522

DISK

17

5364663098

OUTER RING

18

5364663101

BACK UP RING

19

5364663383

PRESS SPRING

20

5364663384

GUIDE RING

21

5364663100

BACK UP RING

22

5364663385

SEAL SQUARE CUT

23

5364663386

SEAL SQUARE CUT
