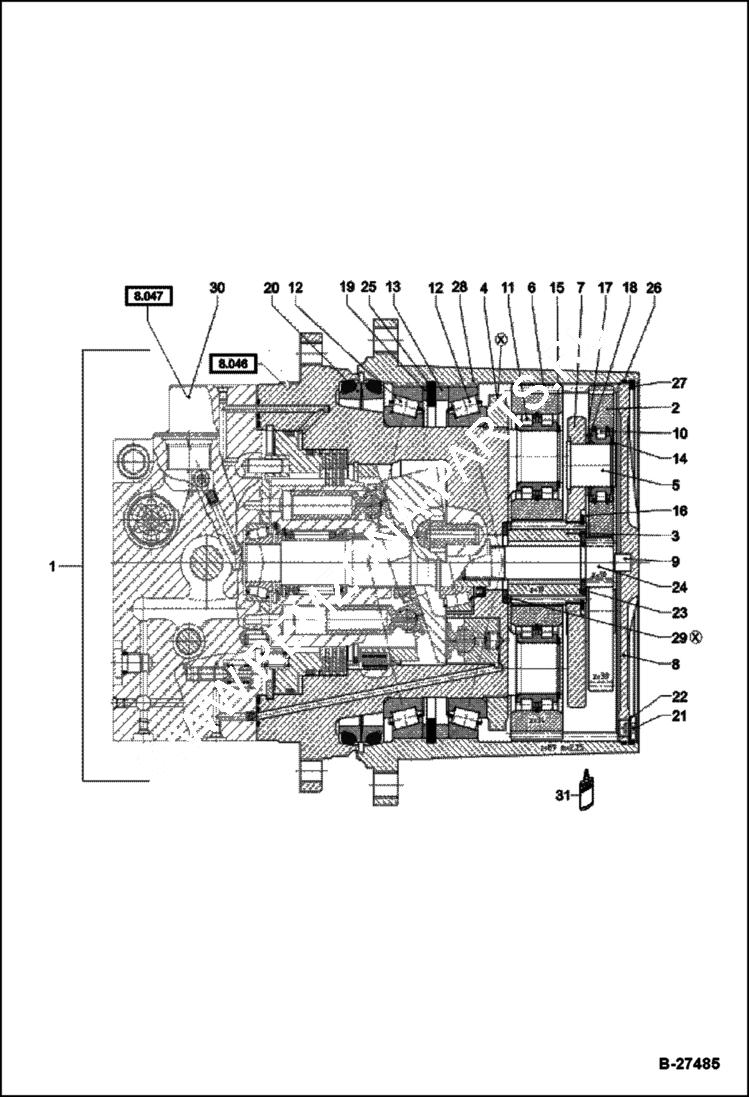

Запчасти Bobcat ZX75 TRAVEL DRIVE HYDRAULIC SYSTEM

1

5459660217

MOTOR, DRIVE HYD 300 BAR - Was 5999991227 - D

2

5459661101

PLANETARY WHEEL

3

5459661102

SUN WHEEL

4

5459661103

SHAFT NUT

5

5459661104

PIN

6

5459661100

PLANETARY GEAR

7

5459661105

PLANETARY NOSE

8

5459661106

COVER

9

5459661107

CYLINDER ROLL

10

5459661076

BEARING

11

5459661095

BEARING

12

5459661081

TAP.ROLLER BEARING

13

5459661114

RING,INTERMEDIATE

14

1455622927

CIRCLIP 25X1,2

15

1455622233

CIRCLIP 30X1,5

16

1455622349

CIRCLIP 48X1,75

17

1309412824

SHIM 25X35X2

18

1309412119

ADJ WASHER 25X35X1,5

19

5459661115

INTERMEDIATE RING

20

5459661093

FLOATING SEAL

21

1148201413

PLUG M 10X1

22

1636815229

SEAL 10X13,5X1

23

5459661112

MODULATED WASHER

24

SUN WHEEL SHAFT NLA - Was 5459661113 - A

25

5459661111

SNAP RING 205X5

26

5459661096

O-RING 210X2

27

5459661094

SNAP RING

28

5459661109

RING GEAR

29

5459661108

DISK CASE

30

5459660217

MOTOR, DRIVE HYD See Illustration TRAVEL DRIVE GEAR/ B27486 - Was 5999991227 - D

31

GLUE NLA - Was MCS001036A - A
