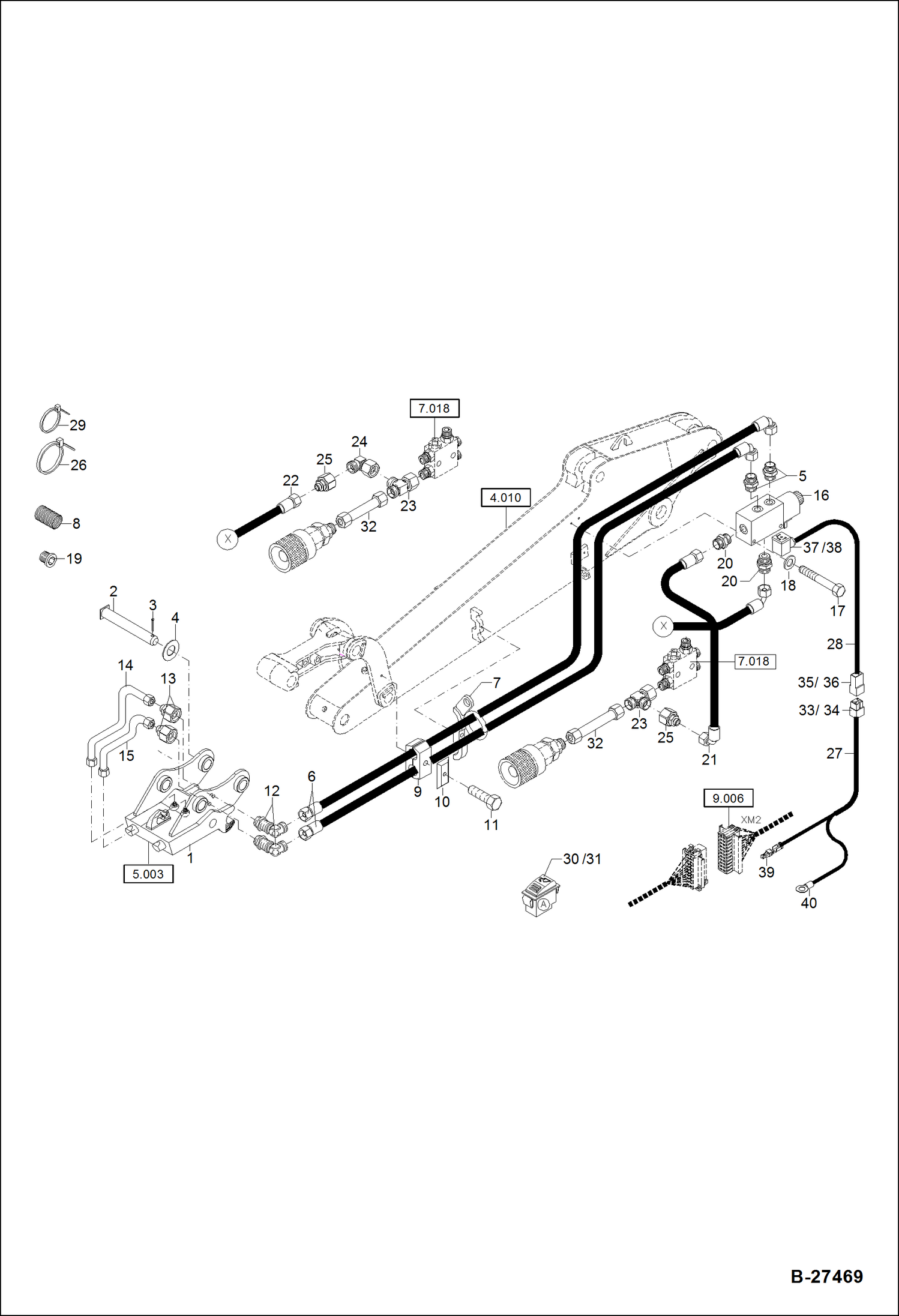

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - QUICK MOUNT HITCH Lehnhoff HM08 W/Circular Boom HYDRAULIC SYSTEM

1

HITCH, MOUNT QUICK See Illustration HYDRAULIC QUICK MOUNT HITCH - HM08/ B27391 - NLA - HM08

2

0211005045

PIN

3

1395707642

COTTER PIN 10X80

4

1309412430

WASHER 50X75X2,

5

1915060256

FITTING

6

4256217371

HOSE

7

6209748010

PIPE CLIP

8

5000068300

WIRING HARNESS

9

5660199884

HOSE CLIP

10

5660200230

COVER PLATE

11

1007707619

BOLT M 8X55

12

1931060151

FITTING

13

1934000089

FITTING

14

0209329006

TUBING

15

0209329008

TUBING

16

5572100035

CONTROL BLOCK

17

1007707719

BOLT M 8X60

18

1343707057

WASHER 8,4

19

1912060217

SCREW CONNECTOR

20

1915060258

FITTING

21

4158046351

HOSE

22

4158180373

HOSE

23

1919060355

FITTING

24

1924060155

FITTING

25

1934060162

FITTING

26

5653093560

BINDER 4,8X200

27

0190131020

WIRE HARNESS

28

0190131021

WIRE HARNESS

29

5350650294

BINDER 2,5X142

30

5050651364

ROCKER SWITCH

31

5358650288

SYMBOL 3.STEUERKREIS/ZUSATZ

32

6234328010

TUBING

33

5350246805

TERMINAL FEMALE

34

5350249513

PLUG 2-FACH

35

5350249534

FLAT PLUG 2-FACH

36

5350247311

TERMINAL MALE

37

5552659550

BOX

38

5552659513

SEAL

39

5350249552

CONNECTOR

40

5350246610

CABLE CONNECTOR
