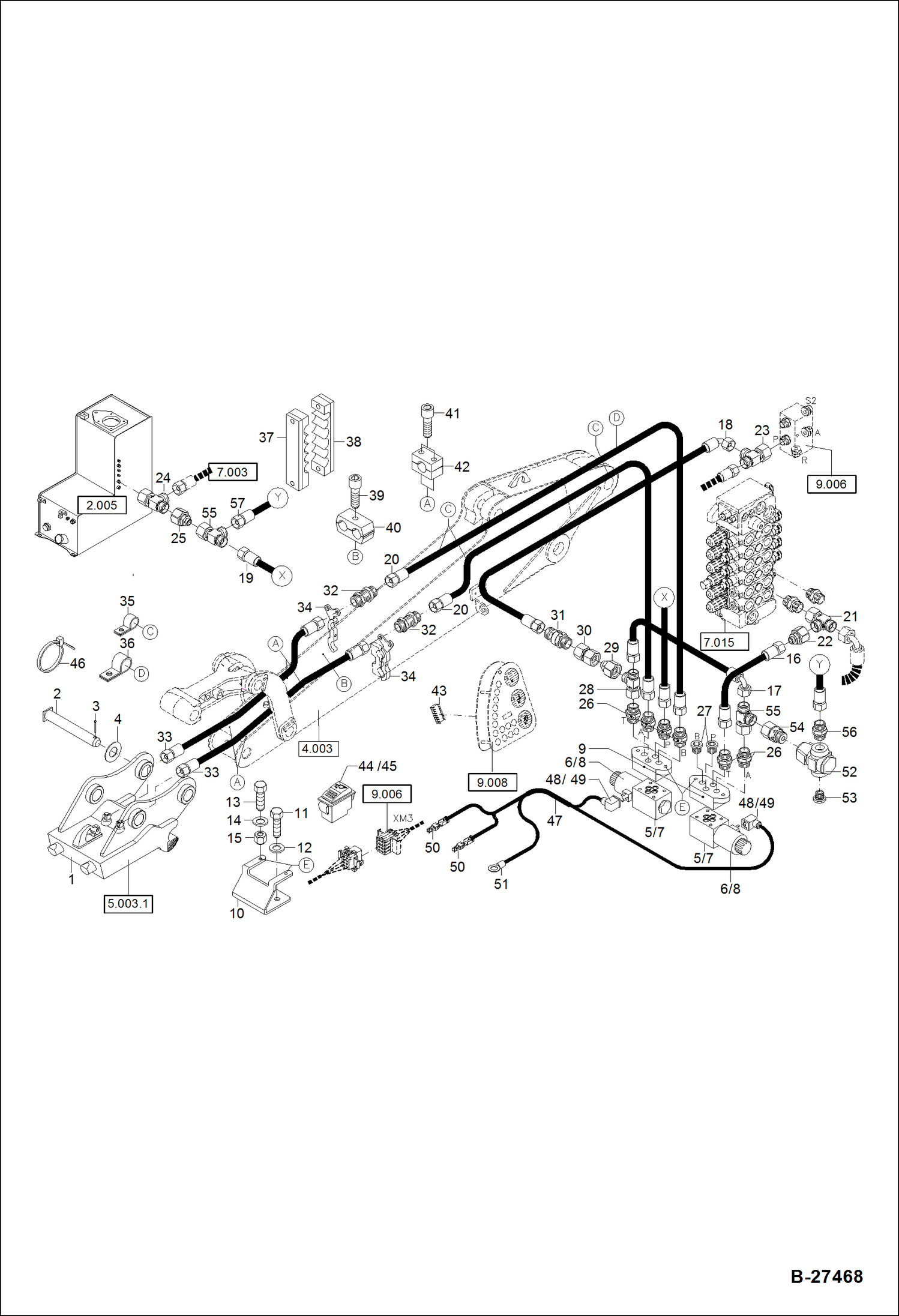

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - QUICK MOUNT HITCH Lehnhoff HS08 W/Mono Boom New Version HYDRAULIC SYSTEM

1

5455660730

MOUNT, HITCH QUICK See Illustration HYDRAULIC QUICK MOUNT HITCH - HS08/ B27392 HS08

2

0211005045

PIN

3

1395707642

COTTER PIN 10X80

4

1309412430

WASHER 50X75X2,

5

5003700013

DIRECT CONTR VALVE

6

5003700025

COIL

7

5003700026

NUT W/SEAL

8

5003700027

SEAL KIT

9

5003700003

CONNECTING PLATE

10

0209248026

VALVE BRACKET

11

1008707018

BOLT M 8X20

12

1343707057

WASHER 8,4

13

1008707513

BOLT M 6X25

14

1290707014

WASHER 6,4

15

1212251009

NUT M 6

16

4158145240

HOSE

17

4158046351

HOSE

18

4506140371

HOSE

19

4158070240

HOSE

20

4158810301

HOSE

21

1919060355

FITTING

22

1934060162

FITTING

23

1919060351

FITTING

24

1919060353

FITTING

25

1934060155

FITTING

26

1915060257

FITTING

27

1912060452

PLUG

28

1919060352

FITTING

29

1934060152

FITTING

30

1915060157

FITTING

31

1915991752

ONE-WAY VALVE

32

1913060152

FITTING

33

4906135308

HOSE

34

0238337005

HOSE CLAMP Was 6238337005

35

5000095200

HOSE CLIP

36

5000096800

HOSE CLAMP

37

0190126013

CLIP

38

0190126014

CLIP

39

1045707618

BOLT M 8X30

40

5660199766

HOSE CLIP

41

1045707713

PAN HEAD SCREW M 6X30

42

5660199611

HOSE CLAMP

43

E-PROM NLA

44

5050651370

ROCKER SWITCH

45

5358650288

SYMBOL 3.STEUERKREIS/ZUSATZ

46

5653093560

BINDER 4,8X200

47

0234221020

WIRE HARNESS

48

5552659550

BOX

49

5552659513

SEAL

50

5350249552

CONNECTOR

51

5350246610

CABLE CONNECTOR

52

5050052420

VALVE, LIMITATION PRESSURE 190 BAR

53

1912060105

PLUG

54

1938060452

FITTING

55

1919060352

FITTING

56

1915060558

FITTING

57

4158070240

HOSE
