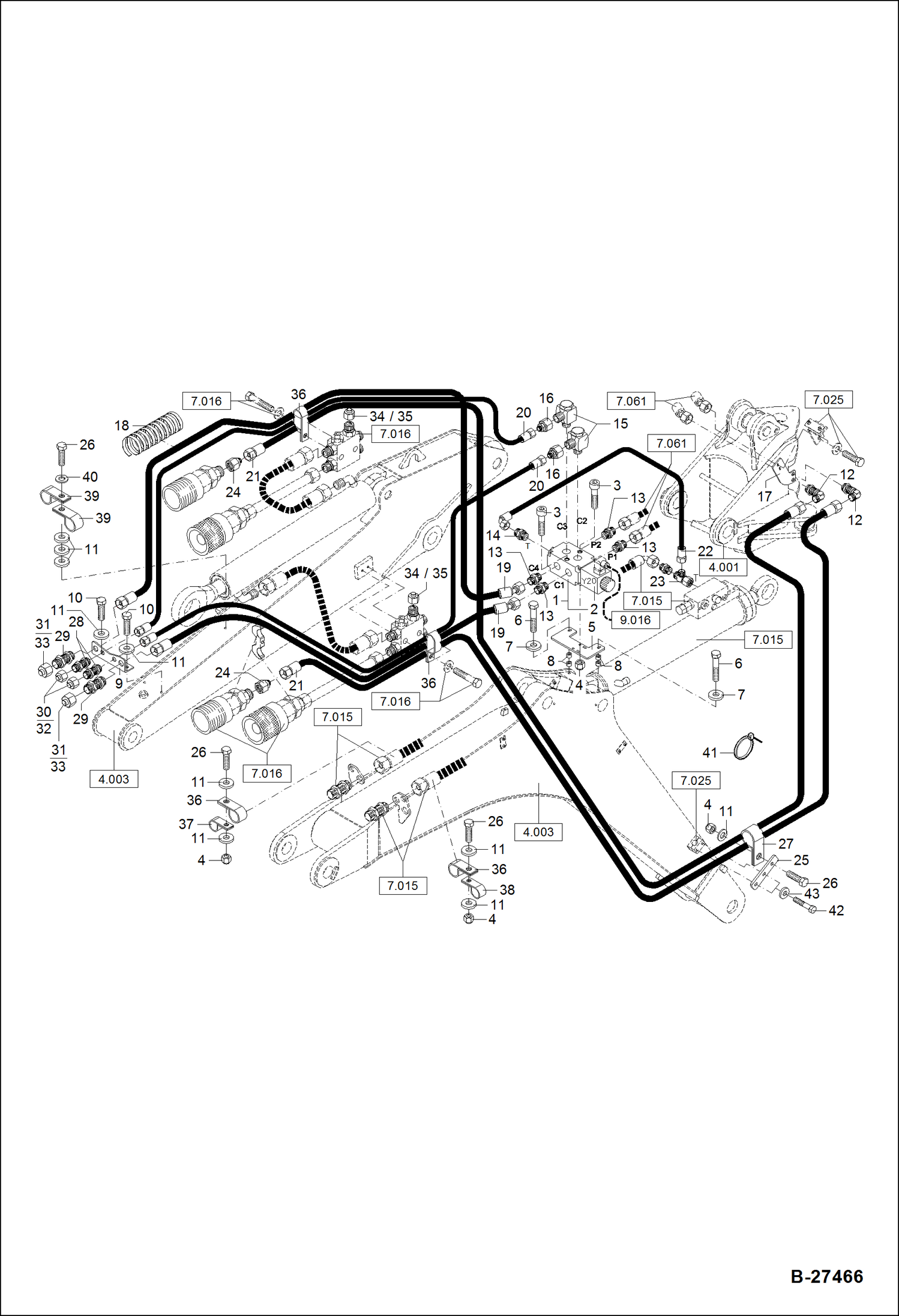

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION 3rd+4th Additional Circuit Mono Boom HYDRAULIC SYSTEM

1

5167659818

REVERSING VALVE 12V - W/Ref. 2

2

5167660119

SOLENOID

3

1045707120

BOLT M8X80

4

1212251011

NUT M8

5

0239306006

BRACKET, VALVE

6

1007707424

BOLT M10X40

7

1343707059

WASHER 10,5X25X4

8

0162203521

SPACER 16X2,5X8

9

0234306010

BRACKET, FITTINGS

10

1008707817

BOLT M8X16

11

1343707057

WASHER 8,4

12

1931060153

FITTING

13

1915060262

FITTING

14

1915060255

FITTING

15

1921060559

FITTING

16

1934060157

FITTING

17

0190303006

BRACKET

18

5000068300

WIRING HARNESS

19

4260385367

HOSE

20

4256385356

HOSE

21

4910565359

HOSE

22

4506130351

HOSE ASSEMBLY CPL.

23

1919060351

FITTING

24

1934060195

FITTING

25

0190303007

BRACKET

26

1008707318

BOLT M8X25

27

5000210410

HOSE CLIP 31,8

28

1913060151

FITTING

29

1913060153

FITTING

30

1911060154

UNION NUT M8-L M14X1,5

31

1911060156

UNION NUT M12-L M18X1,5

32

1912060354

PLUG 8-L/S

33

1912060356

PLUG 12-L/S

34

1911060169

NUT, ADAPTER M20-S M30X2

35

1912060369

PLUG 20-S

36

5000210420

HOSE CLIP 38,0

37

5000210463

HOSE CLIP 30,2

38

5000210400

HOSE CLIP 23,0

39

5000096800

HOSE CLAMP 25,4

40

1290707018

WASHER 8,4

41

5350650280

BINDER 7,8X360

42

1007707414

BOLT M 6X55

43

1343707055

WASHER 6,4
