Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION 3rd+4th Additional Circuit Pilot Control - Mono Boom HYDRAULIC SYSTEM

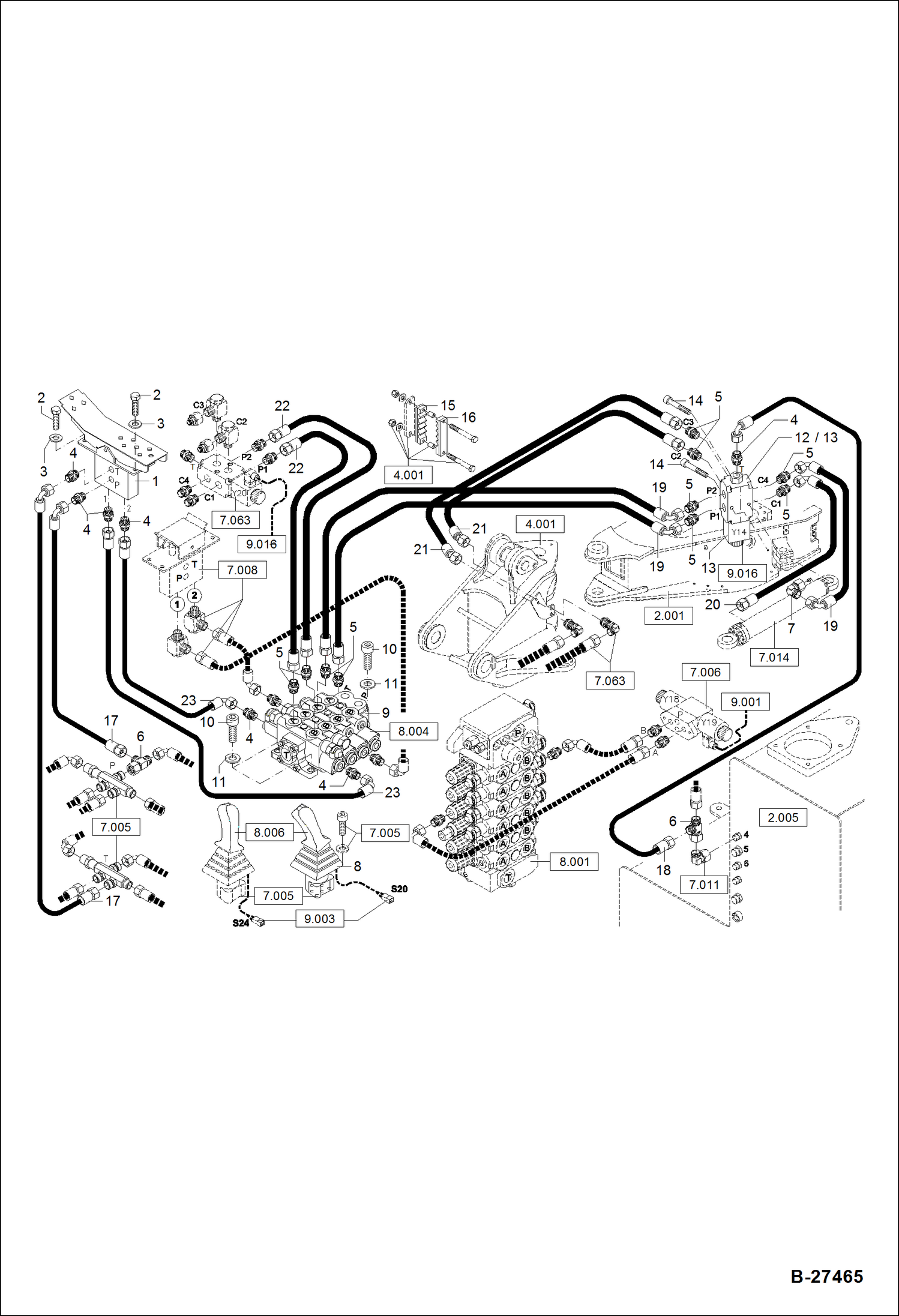

Схема запчастей Bobcat ZX75 - HYDRAULIC INSTALLATION 3rd+4th Additional Circuit Pilot Control - Mono Boom HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5606658700

REMOTE CONTROL PEDAL

2

1008707018

BOLT M8X20

3

1290707018

WASHER 8,4

4

1915060255

FITTING

5

1915060262

FITTING

6

1919060351

FITTING

7

1924060153

FITTING

8

5606658880

JOYSTICK LH 4 TH5

9

5606660454

VALVE ASSY See Illustration VALVE BANK/ B27473 - 4SM12 - 4 section valve bank

10

1045707124

BOLT M10X30

11

1290707020

WASHER 10,5

12

5167659818

REVERSING VALVE 12V - W/Ref. 13

13

5167660119

SOLENOID

14

1045707919

BOLT M8X70

15

0190126013

CLIP

16

0190126014

CLIP

17

4506085351

HOSE

18

4506130351

HOSE ASSEMBLY CPL.

19

4260168374

HOSE

20

4910196374

HOSE

21

4260190367

HOSE

22

4910420374

HOSE

23

4506320371

HOSE

Выбрано товаров: 23
