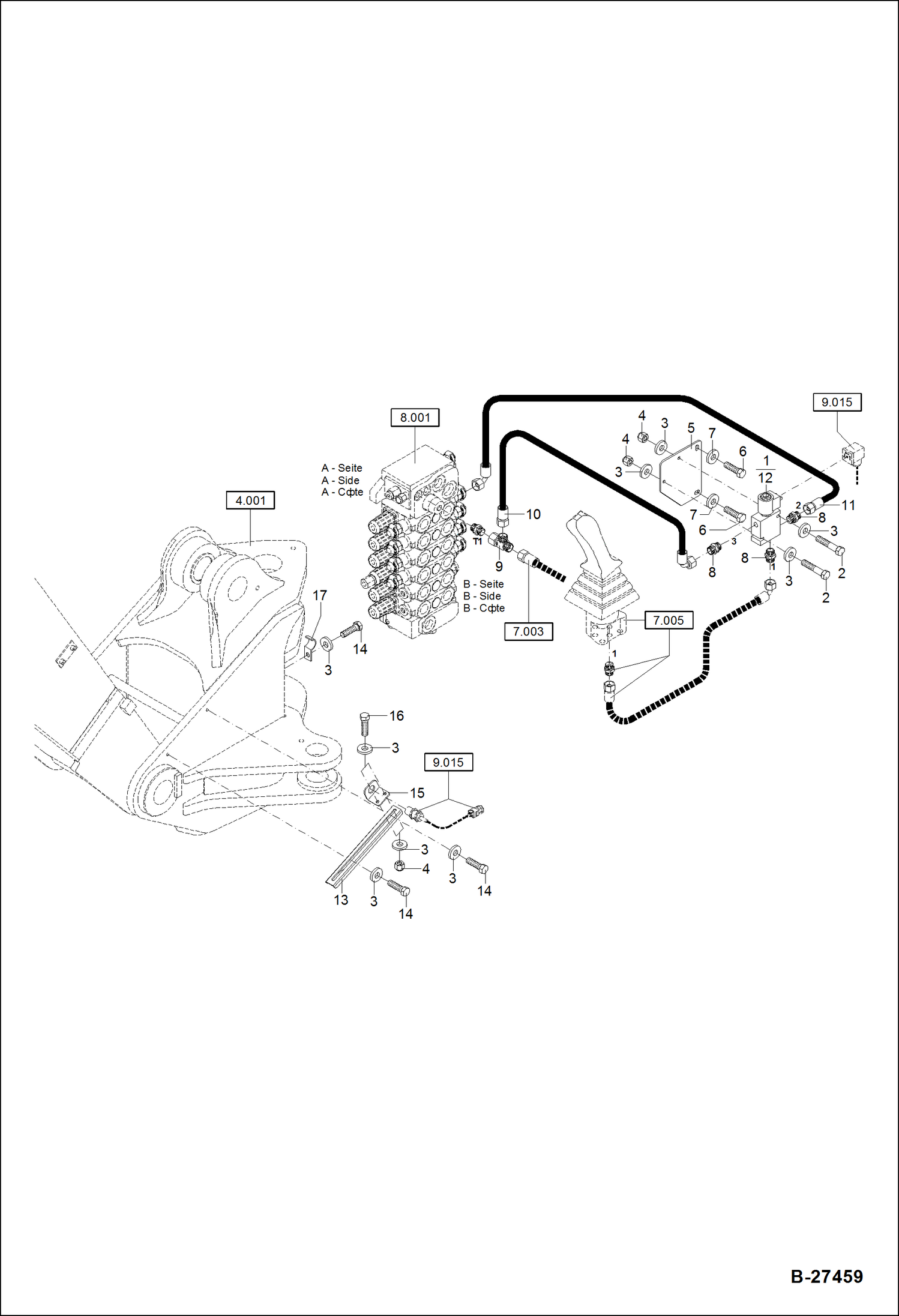

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - BOOM HIGHT LIMITATION Mono Boom - Previous Version HYDRAULIC SYSTEM

1

5320001001

CONTROL VALVE W/Ref. 12

2

1007707514

BOLT M 6X60

3

1343707055

WASHER 6,4

4

1212251009

NUT M 6

5

6190241017

MOUNTING PLATE

6

1008707018

BOLT M 8X20

7

1343707057

WASHER 8,4

8

1915060255

FITTING

9

1919060351

FITTING

10

4256033371

HOSE, HYD Was 4506033351 - A

11

4506115351

HOSE ASSEMBLY CPL.

12

5320001002

SOLENOID CARTRIDGE

13

6190241015

BRACKET

14

1008707612

BOLT M 6X12

15

6190241016

ANGLE

16

1008707213

BOLT M 6X20

17

1901003709

PIPE CLIP
