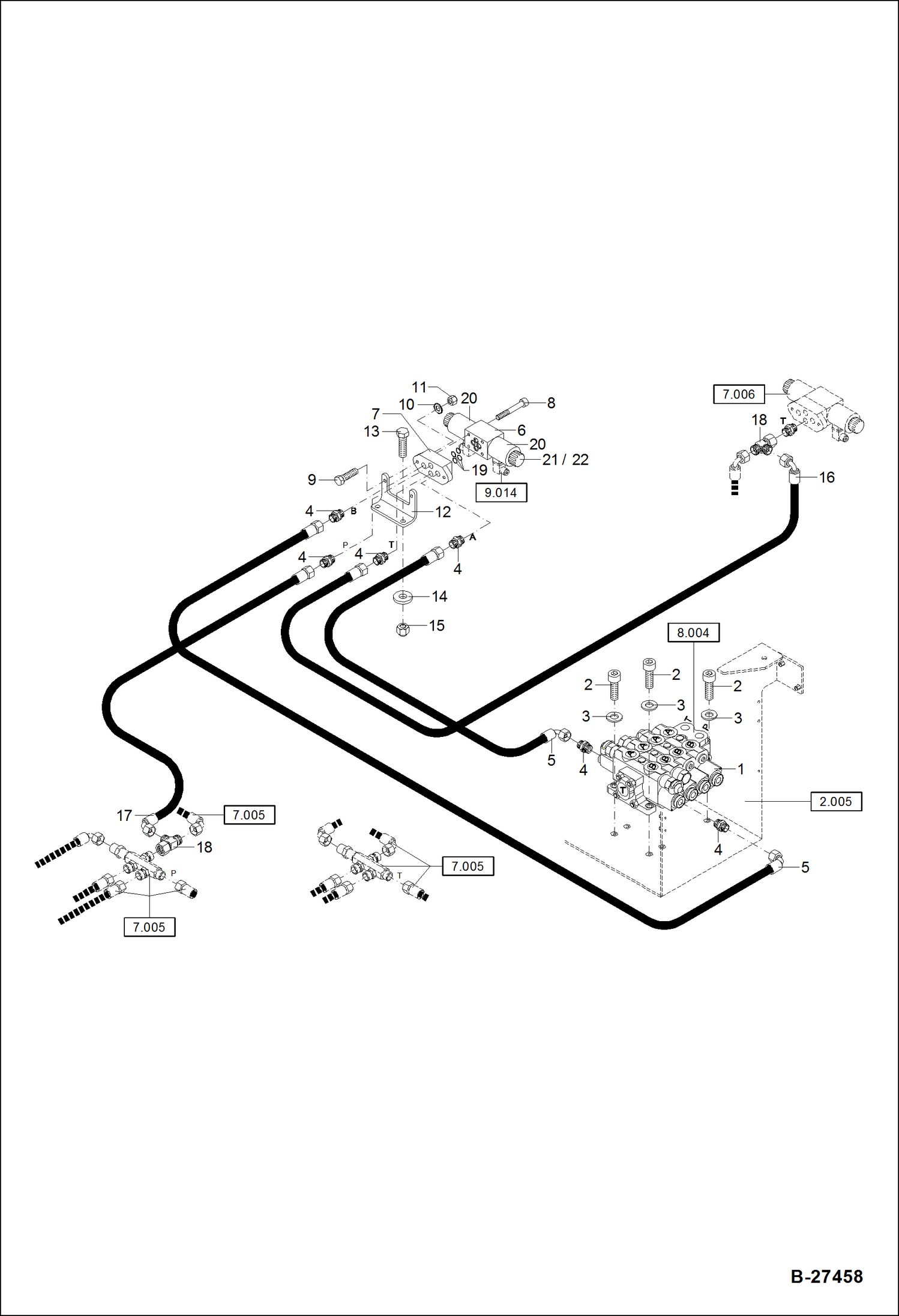

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - ADDITIONAL CIRCUIT Control Unit HYDRAULIC SYSTEM

1

5606660454

VALVE ASSY See Illustration VALVE BANK/ B27473 - 4SM12 - 4 section valve bank

2

1045707124

BOLT M 10X30

3

1290707020

WASHER 10,5

4

1915060255

FITTING

5

4506235351

HOSE

6

5003700001

DIRECT CONTR. VALVE 12V - W/Ref. 19-21

7

5003700003

CONNECTING PLATE G1/4Z

8

1045907011

BOLT M 5X45

9

1008707513

BOLT M 6X25

10

1290707014

WASHER 6,4

11

1212251009

NUT M 6

12

0199006025

BRACKET

13

1008707618

BOLT M 8X30

14

1343707057

WASHER 8,4

15

1212251011

NUT M 8

16

4256033371

HOSE, HYD Was 4506033351 - A

17

4506205351

HOSE

18

1919060351

FITTING

19

5003700027

SEAL KIT

20

5003700025

COIL

21

5003700026

NUT W/SEAL W/Ref. 22

22

1970956810

O-RING
