Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION -LOAD HOLDING VALVE Dipper Arm HYDRAULIC SYSTEM

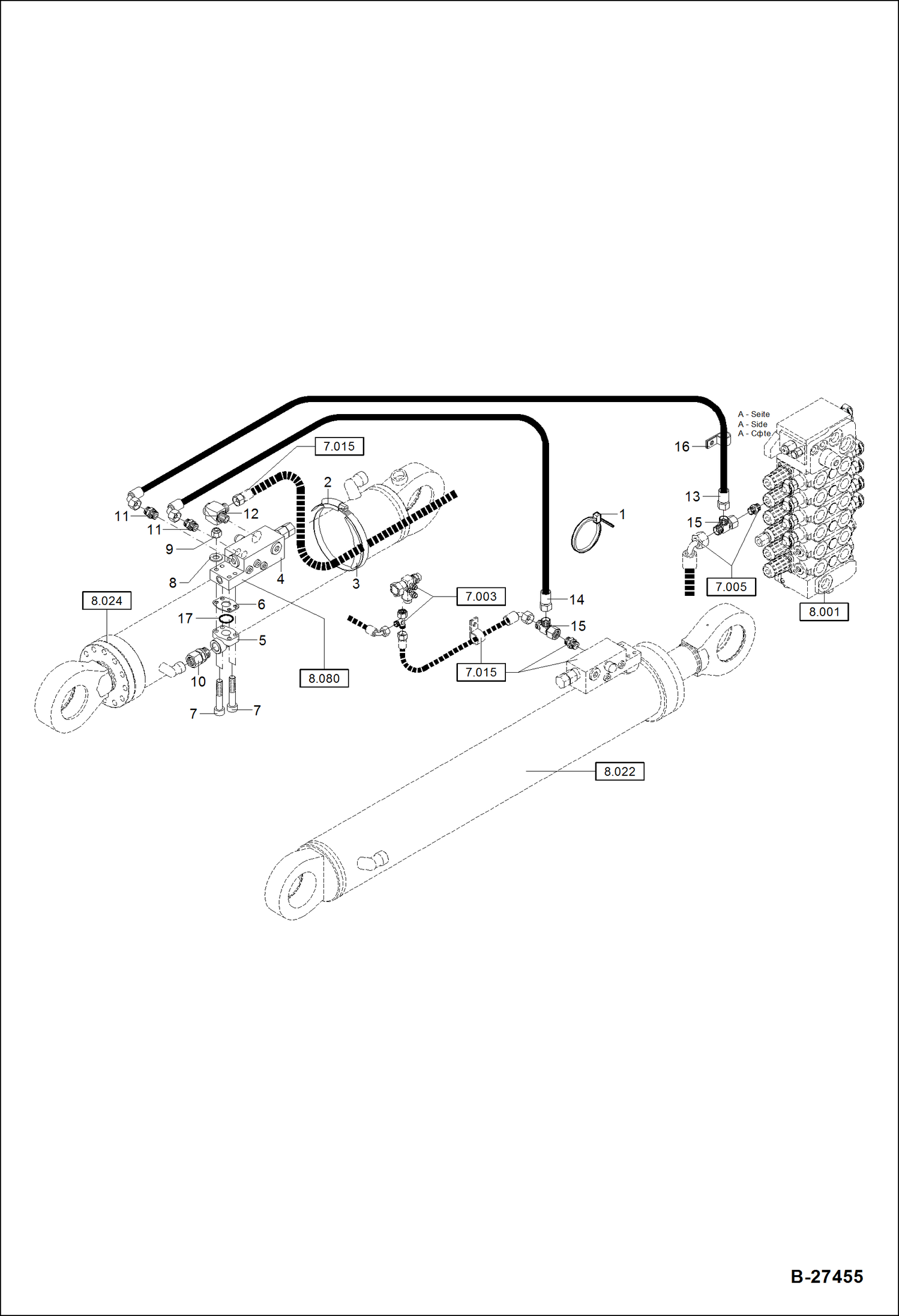

Схема запчастей Bobcat ZX75 - HYDRAULIC INSTALLATION -LOAD HOLDING VALVE Dipper Arm HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5653093560

BINDER

2

5660095200

HOSE CLIP

3

0110012050

RUBBER LAYER

4

5167659758

LOAD CHECK VALVE See Illustration LOAD CHECK VALVE/ B27491

5

5000261400

FLANGE W/Ref. 17

6

5000281401

SPACER

7

1045707719

BOLT M 8X60

8

1290707018

WASHER 8,4

9

1212251011

NUT M 8

10

1938060167

SCREWED SOCKET

11

1915060255

FITTING

12

1921060570

FITTING

13

4506540371

HOSE

14

4506215351

HOSE

15

1919060351

FITTING

16

5000095200

HOSE CLIP 14,3

17

1971956010

O-RING 18,66X3,53

Выбрано товаров: 17
