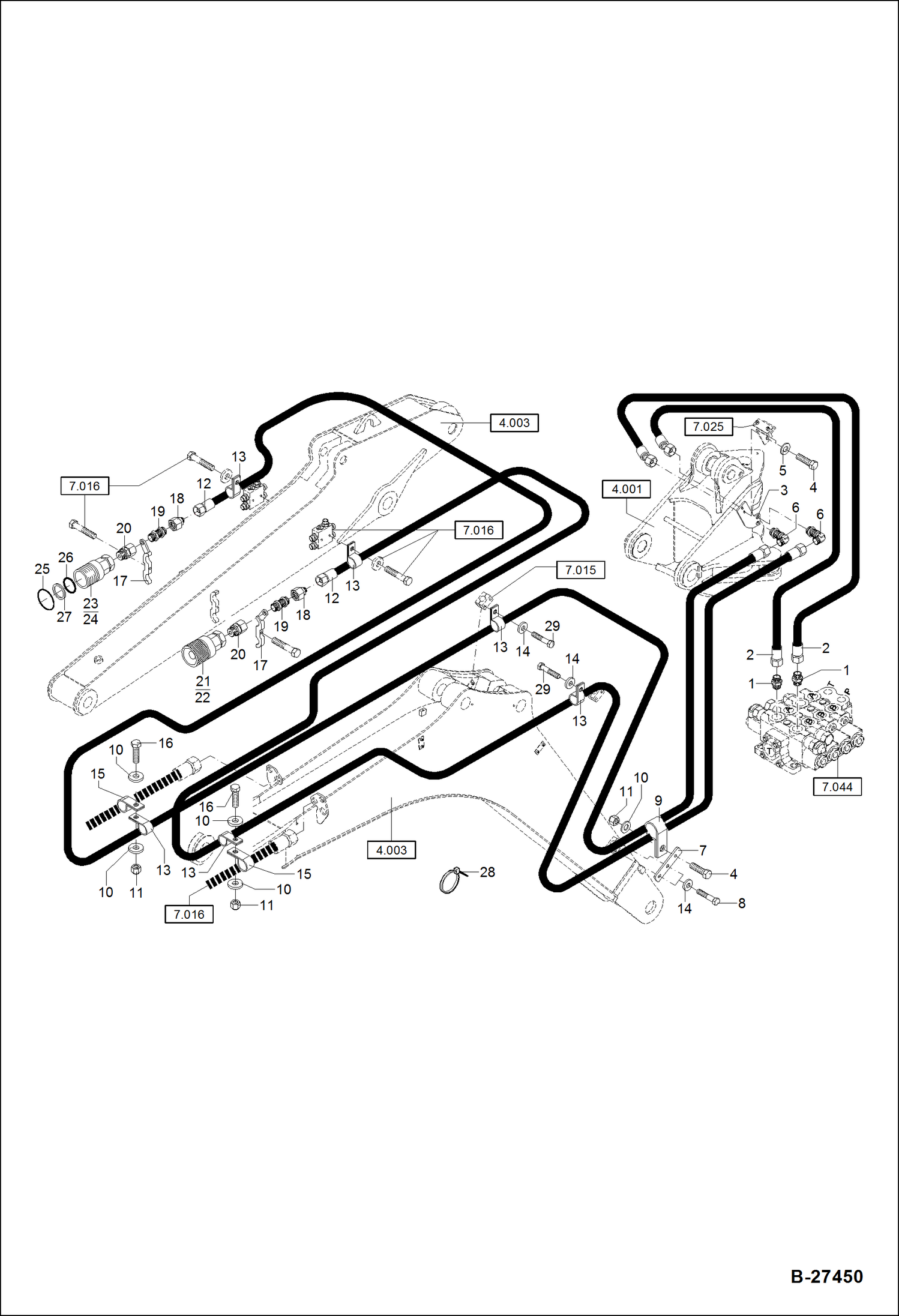

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - ADDITIONAL CIRCUIT Mono Boom HYDRAULIC SYSTEM

1

1915060359

FITTING

2

4158215366

HOSE

3

0190303006

BRACKET

4

1008707018

BOLT M 8X20

5

1290707018

WASHER 8,4

6

1931060152

FITTING

7

0190303007

BRACKET

8

1007707414

BOLT M 6X55

9

5000210463

HOSE CLIP 29-27

10

1343707057

WASHER 8,4

11

1212251011

NUT M 8

12

4158565301

HOSE

13

5000095200

HOSE CLIP 14,3

14

1343707055

WASHER 6,4

15

5000210400

HOSE CLIP 23,0

16

1008707318

BOLT M 8X25

17

6190303010

PIPE CLIP

18

1934060155

FITTING

19

1913060153

FITTING

20

1938060459

FITTING

21

5260301135

COUPLING PLUG

22

5260301139

PLUG

23

5260301130

COUPLING SOCKET W/Ref. 25,26,27

24

5260301137

COVER NUT

25

1970956929

O-RING 30X3X36

26

1970956828

O-RING 22X3X28

27

5260301136

BACK UP RING

28

5350650280

BINDER 7,8X290

29

1008707314

BOLT M 6X50

30

1970956719

O-RING 18X2,5X23
