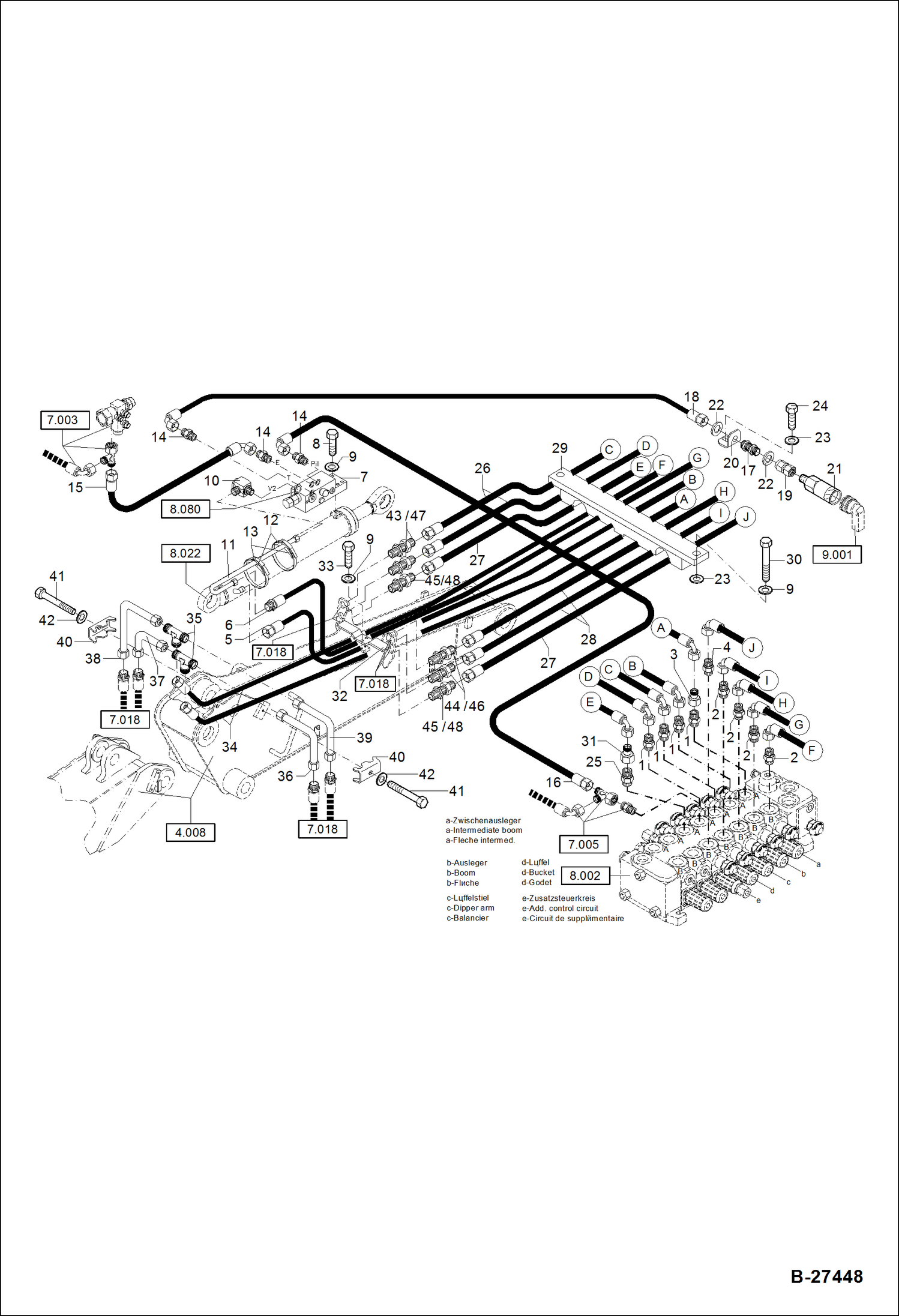

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - CIRCULAR BOOM, PART 1 HYDRAULIC SYSTEM

1

0190008015

SCREWED SOCKET

2

1915060476

FITTING

3

1934060219

FITTING

4

1915060470

FITTING

5

4466370512

HOSE

6

4462365483

HOSE

7

5167659758

LOAD CHECK VALVE See Illustration LOAD CHECK VALVE/ B27491

8

1008707019

BOLT M 8X40

9

1290707018

WASHER 8,4

10

1921060570

FITTING

11

0190107010

TUBING S3B2N

12

0110012050

RUBBER LAYER

13

5660095200

HOSE CLIP

14

1915060255

FITTING

15

4506366351

HOSE

16

4506290351

HOSE

17

1913060151

FITTING

18

5066315843

HOSE

19

1943000101

CONNECTION

20

6203212010

ANGLE

21

5124650507

PRESSURE, ABSORPTION

22

1290707025

WASHER 15

23

1343707057

WASHER 8,4

24

1008707018

BOLT M 8X20

25

1915060266

FITTING

26

4466295512

HOSE

27

4266281376

HOSE

28

4462285441

HOSE

29

0190126011

CLIP

30

1008707019

BOLT M 8X40

31

1934060170

FITTING

32

6190105030

BRACKET

33

1008707817

BOLT M 8X16

34

4462420441

HOSE

35

1914060125

FITTING

36

0190126026

TUBELINE

37

0190126028

TUBELINE

38

0190126030

TUBELINE

39

0190126032

TUBELINE

40

6176106060

PIPE CLIP

41

1007707524

BOLT M 10X45

42

1343707059

WASHER 10,5X25X4

43

1913060166

FITTING

44

1913060165

FITTING

45

1913060155

FITTING

46

1636815578

SEAL RING

47

1636815281

SEAL RING

48

1636815379

SEAL RING
