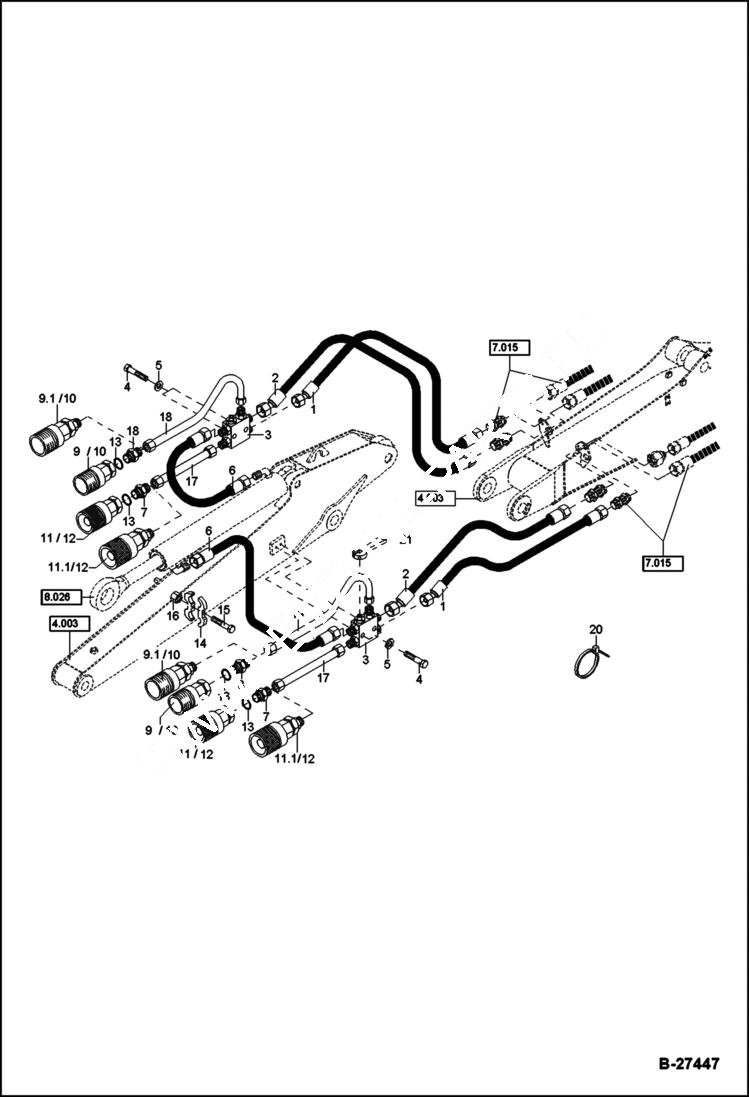

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION -DIPPER ARM - MONO HYDRAULIC SYSTEM

1

4266120404

HOSE

2

4466123501

HOSE

3

5001207159

DISTRIBUTOR BLOCK

4

1007707724

BOLT M 10X55

5

1343707059

WASHER 10,5X25X4

6

4466075500

HOSE

7

1915060566

FITTING

8

FITTING NLA - Use Kit 6501661503 - Was 1915060677 - A

9

5260301140

COUPLING SOCKET

9

5260308016

COUPLING SOCKET

10

5260301147

COVER NUT

11

5260301145

COUPLING PLUG

11

5260308014

COUPLING PLUG

12

5260301149

PLUG

13

1970956719

O-RING 18X2,5X23

14

0190106020

PIPE CLIP 20X33X169

15

1007707025

BOLT M 10X70

16

1212251013

NUT M 10

17

0203220020

TUBING L2B2N

18

0190107018

TUBING S4B2N

19

0190107020

TUBING S4B2N

20

5653093560

BINDER 4,8X200

21

5001207157

HANDLE
