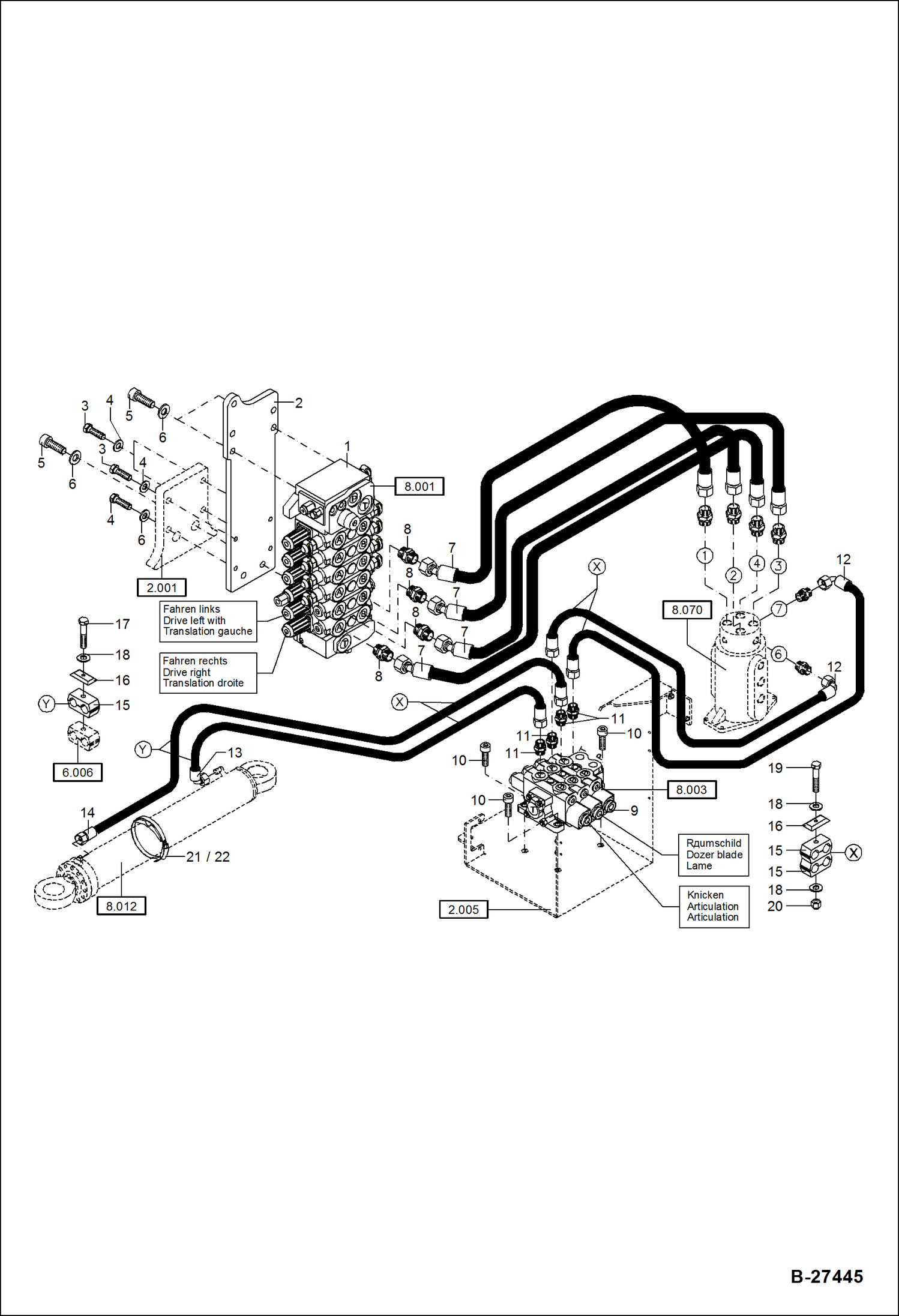

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - ARTICULATION & DRIVE HYDRAULIC SYSTEM

1

5606660410

VALVE, CONTROL See Illustration VALVE BANK/ B27470 - 6SX14 - 6SX14 - 6 section valve bank - Includes Ref. 2-9

2

0190008010

VALVE, BRACKET

3

1008707230

BOLT M 12X40

4

1290707022

WASHER 13

5

1045707036

BOLT M 14X40

6

1290707025

WASHER B15

7

4266052404

HOSE

8

1915060470

FITTING

9

5606665063

VALVE, CONTROL See Illustration VALVE BANK/ B27472 - 3SM12 - 3 swction valve bank - Was 5606660408 - A

10

1045707124

BOLT M 10X30

11

1915060262

FITTING

12

4260150374

HOSE

13

4260232374

HOSE

14

4260244359

HOSE

15

5660199785

HOSE CLIP

16

5660200230

COVER PLATE

17

1007707220

BOLT M 8X85

18

1290707018

WASHER 8,4

19

1007707520

BOLT M 8X100

20

1212251011

NUT M 8

21

5660095400

HOSE CLIP 110-130

22

0110012050

RUBBER LAYER
