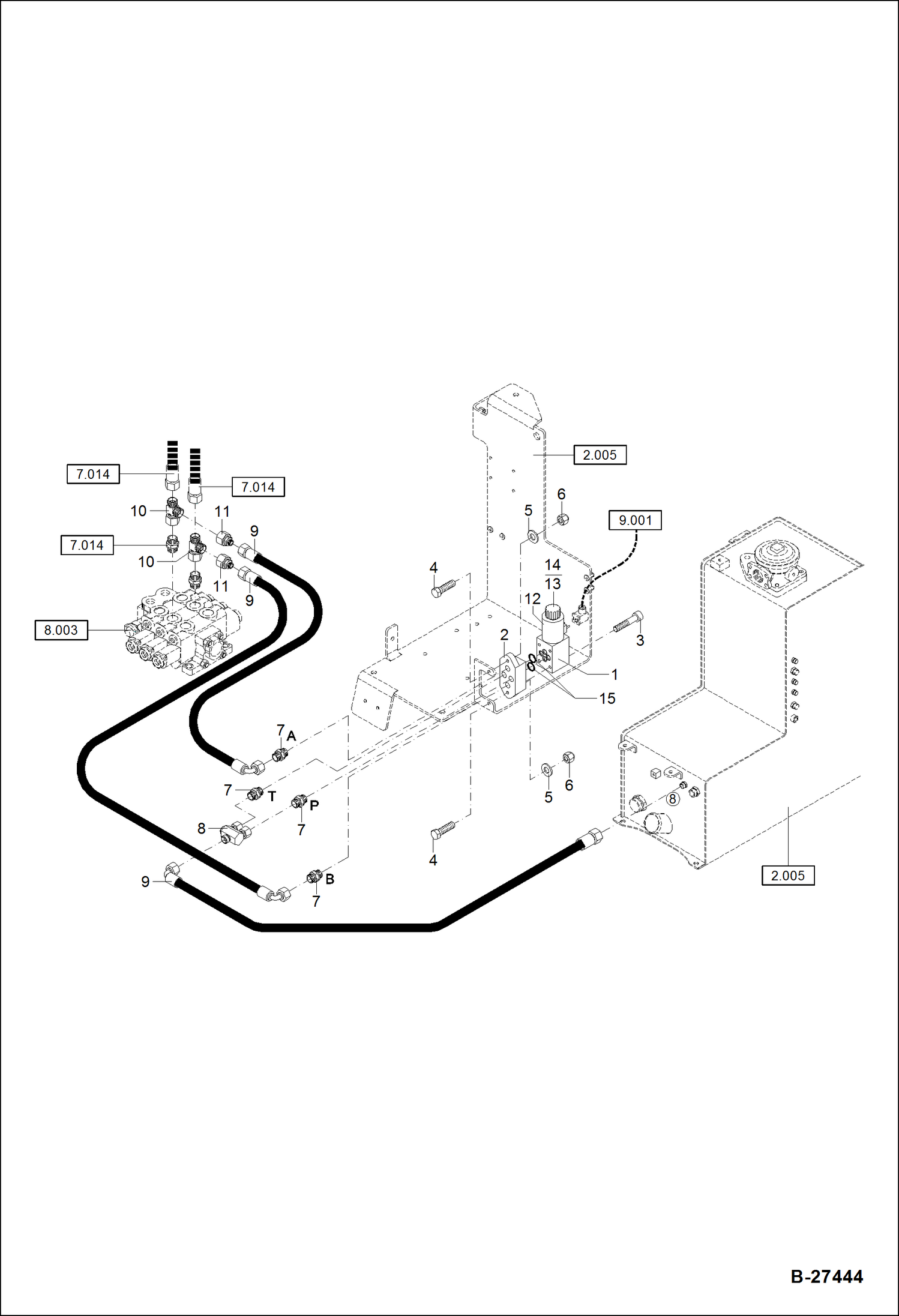

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - DOZER BLADE Float Postion HYDRAULIC SYSTEM

1

5003700002

DIRECT CONTR. VALVE NG06 W/Ref. 12-15

2

5003700003

CONNECTING PLATE

3

1045907011

BOLT M 5X45

4

1008707513

BOLT M 6X25

5

1290707014

WASHER 6,4

6

1212251009

NUT M 6

7

1915060257

FITTING

8

1919060352

FITTING

9

4158046351

HOSE

10

1919060353

FITTING

11

1934060155

FITTING

12

5003700025

COIL

13

5003700026

NUT W/SEAL W/Ref. 14

14

1970956810

O-RING

15

5003700027

SEAL KIT
