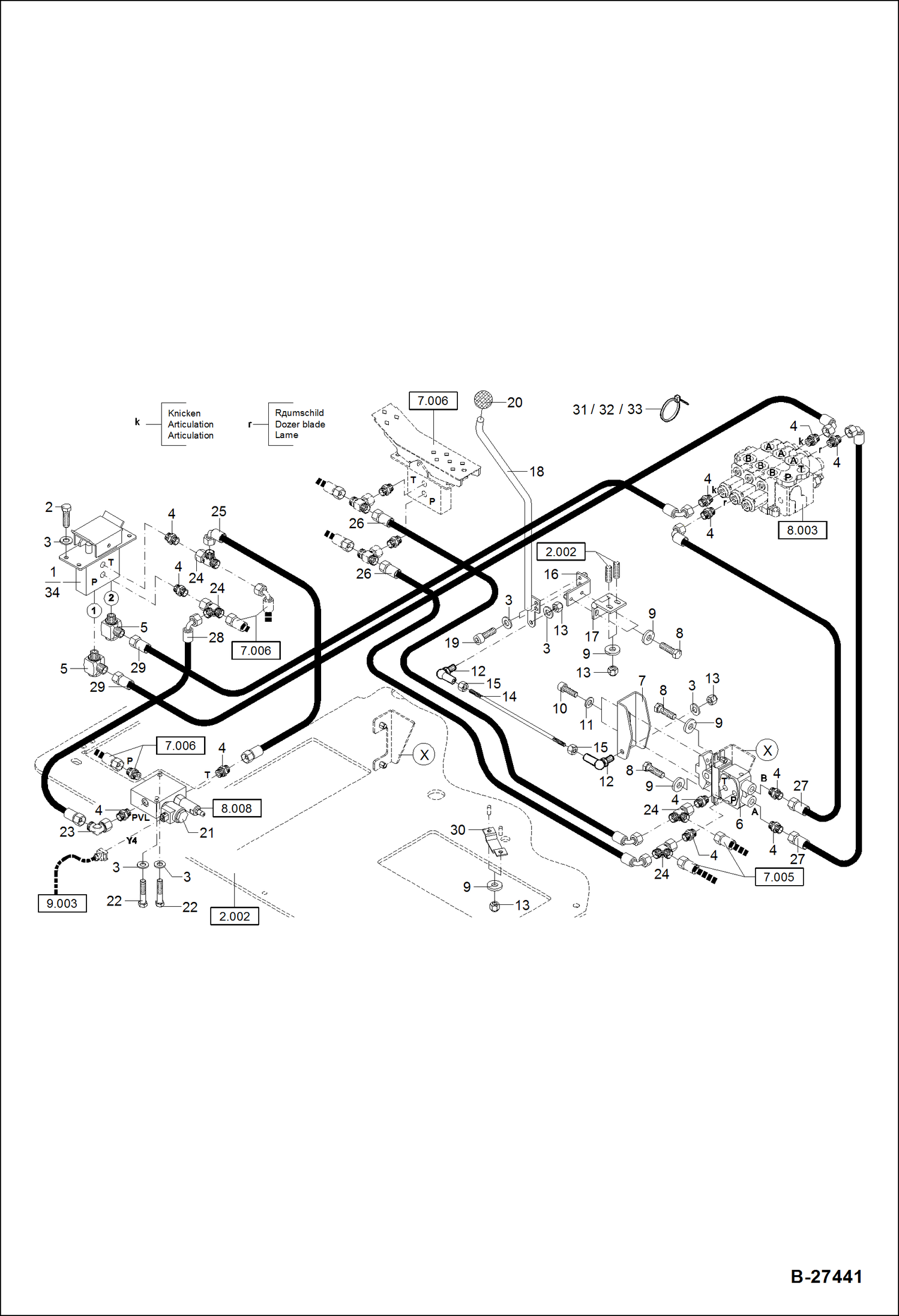

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - PILOT CONTROL Dozer Blade & Articulation S/N XXXX/2841 & Bel HYDRAULIC SYSTEM

1

5606658830

PEDAL PEDAL-WIPPE - W/Ref. 34

2

1008707018

BOLT M 8X20

3

1290707018

WASHER 8,4

4

1915060255

FITTING

5

1921060555

FITTING

6

5167659756

PILOT CONTR. VALVE

7

6189609024

MOUNT

8

1008707318

BOLT M 8X25

9

1343707057

WASHER 8,4

10

1045707612

BOLT M 6X12

11

1290707014

WASHER 6,4

12

1798707104

ANGLE JOINT

13

1212251011

NUT M 8

14

0190008052

THREADED ROD

15

1210707011

NUT M 8

16

6189609035

BRACKET

17

5426585596

HINGE

18

6189609036

LEVER

19

1045707018

BOLT M 8X20

20

1541930726

BALL KNOB

21

5368632565

VALVE ASSEMBLY

22

1007707619

BOLT M 8X55

23

1924060151

FITTING

24

1919060351

FITTING

25

4256033371

HOSE, HYD Was 4506033351 - A

26

4506040351

HOSE

27

4506380371

HOSE

28

4506047351

HOSE

29

4506320351

HOSE

30

6190026143

CLIP

31

5350650280

BINDER 7,8X290

32

5653093560

BINDER 4,8X200

33

5350650294

BINDER 2,5X142

34

5606658830

PEDAL
