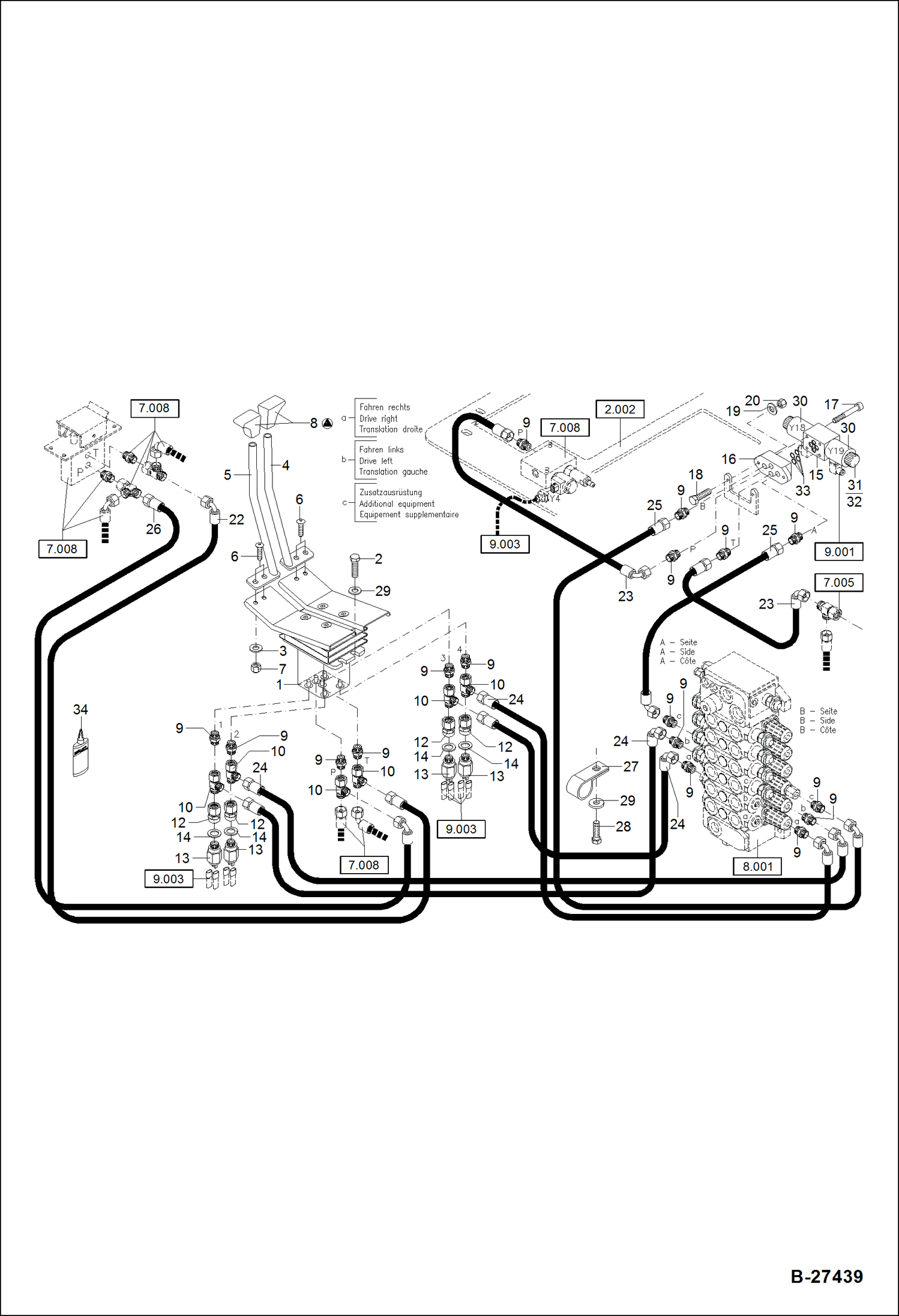

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - PILOT CONTROL Travel & Additional Outlet S/N XXXX/2842 & Abv HYDRAULIC SYSTEM

1

5606658896

PEDAL PEDAL

2

1008707318

BOLT M 8X25

3

1290707018

WASHER 8,4

4

0216009071

LEVER, TRAVEL RH RH

5

0216009070

LEVER, TRAVEL LH LH

6

1069020018

BOLT M 8X20

7

1212251011

NUT M 8

8

1576000512

HANDLE

9

1915060255

FITTING

10

1919060351

FITTING

12

1943000101

CONNECTION

13

5050143175

PRESSURE SWITCH SCHLIESSER 16BAR

14

1636815155

SEAL RING 14X18X1,5

15

5003700001

DIRECT CONTR. VALVE 12V - W/Ref. 30-32

16

5003700003

CONNECTING PLATE

17

1045907011

BOLT M 5X45

18

1008707513

BOLT M 6X25

19

1290707014

WASHER 6,4

20

1212251009

NUT M 6

22

4506040351

HOSE

23

4506140371

HOSE

24

4506270371

HOSE

25

4506180351

HOSE

26

4256033371

HOSE, HYD Was 4506033351 - A

27

5000210462

HOSE CLIP

28

1008707817

BOLT M 8X16

29

1343707057

WASHER 8,4

30

5003700025

COIL

31

5003700026

NUT W/SEAL W/Ref. 32

32

1970956810

O-RING

33

5003700027

SEAL KIT

34

MCS001040A

GLUE
