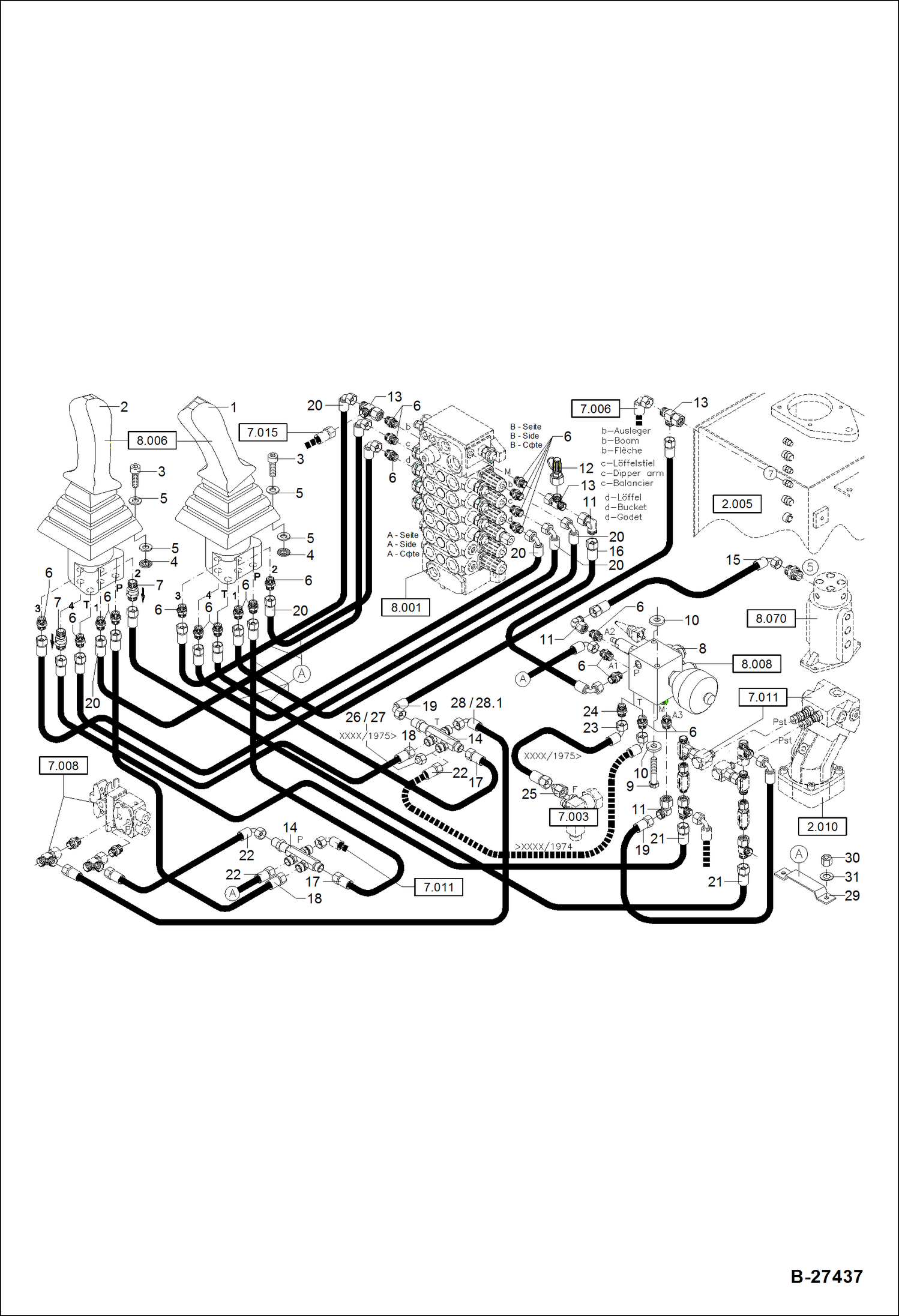

Запчасти Bobcat ZX75 HYDRAULIC INSTALLATION - PILOT CONTROL Work Equipment HYDRAULIC SYSTEM

1

5606658882

JOYSTICK RH See Illustration PILOT-OPERATED VALVE - JOY STICK/ B27474

2

5606658880

JOYSTICK LH See Illustration PILOT-OPERATED VALVE - JOY STICK/ B27474

3

1045707213

BOLT M 6X20

4

1290940014

WASHER 6,4

5

1290707014

WASHER 6,4

6

1915060255

FITTING

7

5260310222

ONE WAY VALVE

8

5368632563

VALVE ASSEMBLY See Illustration PILOT-OPERATED VALVE - SO-BLOCK/ B27475

9

1008707825

BOLT M 10X120

10

1343707059

WASHER 10,5X25X4

11

1924060151

FITTING

12

5066234200

METER CONNECTION

13

1919060351

FITTING

14

5260310255

MANIFOLD

15

4506235351

HOSE

16

4256320371

HOSE

17

4506090240

HOSE

18

4506137240

HOSE

19

4506320351

HOSE

20

4506450351

HOSE

21

4506400356

HOSE

22

4256033371

HOSE, HYD Was 4506033351 - A

23

4010370374

HOSE

24

1915060260

FITTING

25

1934060163

FITTING

26

1912060354

PLUG

27

1911060154

UNION NUT

28

4256033371

HOSE, HYD Was 4506033351 - A

28

4506040351

HOSE

29

0183526010

HOSE CLIP

30

1212251011

NUT M 8

31

1343707057

WASHER 8,4
