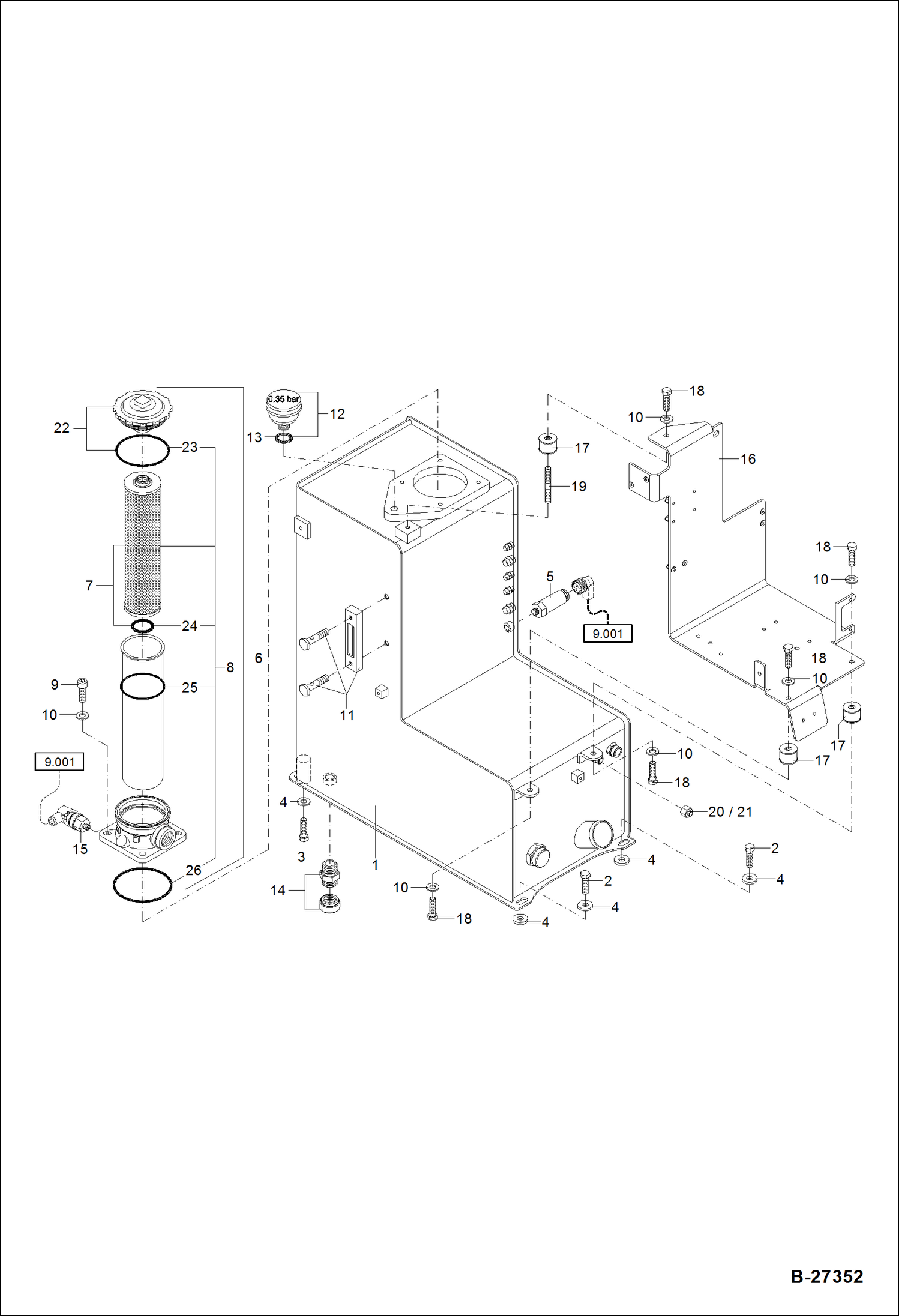

Запчасти Bobcat ZX75 HYDRAULIC OIL TANK HYDRAULIC SYSTEM

1

6234013002

TANK HYD OIL

2

1008707230

BOLT M 12X40

3

1008707630

BOLT M 12X50

4

1343707061

WASHER 13

5

5091661776

OIL LEVEL SENSOR M 14X1,5

6

5368632567

RETURN FILTER ASSY W/Ref. 7-8

7

5368632568

FILTER, OIL HYD TANK

8

5368655681

SEAL KIT

9

1045707923

BOLT M 10X25

10

1290707020

WASHER 10,5

11

5368632243

OIL GAUGE

12

5501655650

BREATHER CAP 0,35 BAR - W/Ref. 13

13

5501655651

O-RING

14

5366654593

DRAIN PLUG

15

5380660832

SWITCH, PRESS Was 5380660831 Was 5380660831 - A

16

6234008012

MOUNT VALVE

17

BEARING NLA - Was 5101290966 - A

18

1008707423

BOLT M 10X16

19

1133907324

STUD M 10X35

20

1912060355

PLUG

21

1911060155

UNION NUT M 10-L M16X1,5

22

5368655686

COVER

23

5712656976

O-RING 110,72X3,53

24

1970956943

O-RING 40X3,5

25

1971956240

O-RING 94,92X2,62

26

1971956337

O-RING 136,12X3,53
