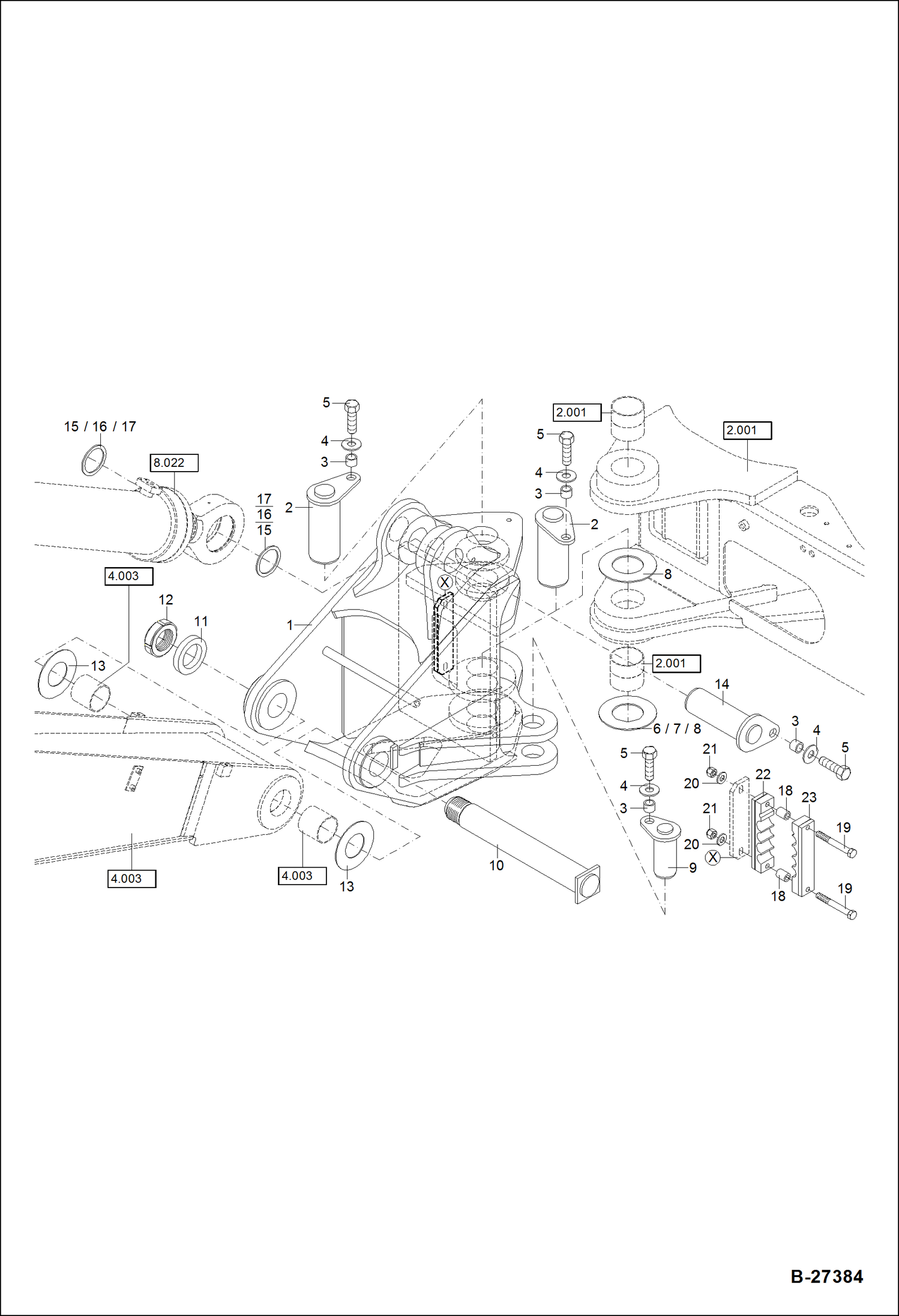

Запчасти Bobcat ZX75 KING POST - BOOM MONO WORK EQUIPMENT

1

0190024002

PIVOT POST

2

6190024050

PIN

3

0156029033

SPACER

4

1343707061

WASHER 13

5

1008707829

BOLT M 12X30

6

0202524052

WASHER 70,5XD25X2

7

0202524057

WASHER 70,5X125X2,5

8

0202524053

WASHER 70,5X125X3

9

0203024024

PIN 50X124

10

0209127041

PIN

11

0209127045

ZINC COATED RING

12

1212707446

SLOTTED NUT M 56X2

13

0202524050

WASHER 60,5X120X2

14

0190024020

PIN Was 6190024020 - A

15

1309412013

SHIM 60X75X1

16

1309412825

SHIM 60X75X2

17

1309412834

SHIM 60X75X3

18

0209124023

DISTANCE SLEEVE

19

1007707725

BOLT M 10X110

20

1290707020

WASHER 10,5

21

1212251013

NUT M 10

22

0190024041

CLIP

23

0190024042

CLIP
