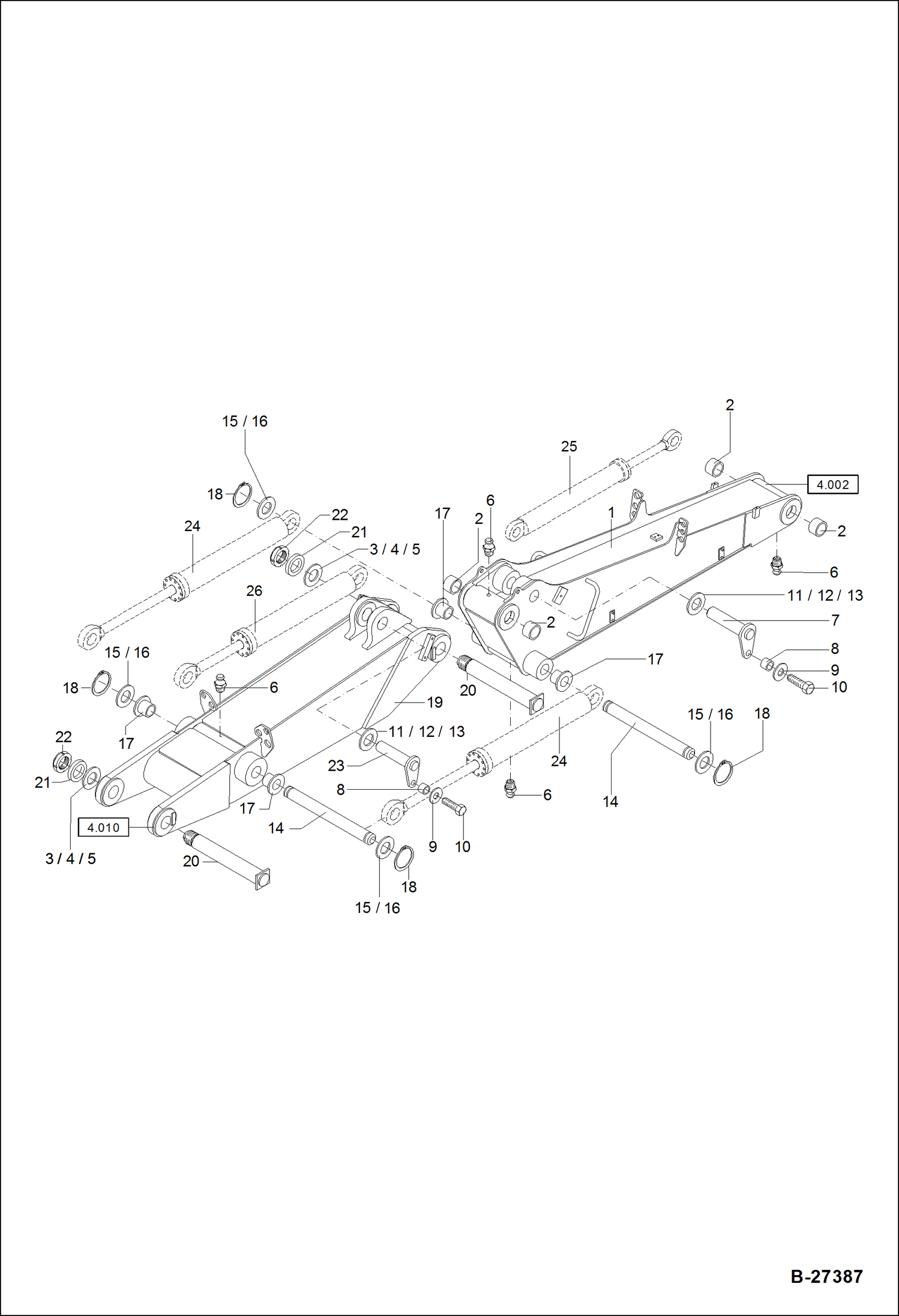

Запчасти Bobcat ZX75 WORKING EQUIPMENT - CIRCULAR BOOM WORK EQUIPMENT

1

0190122002

BOOM, ARM DIPPER

2

5809625667

BUSHING 60X65X60

3

0202524050

WASHER 60,5X120X2

4

0203024057

WASHER 60,5X120X2,5

5

0202524051

WASHER 60,5X120X3

6

1607003010

GREASE NIPPLE M 10X1

7

0155128043

PIN

8

0156029033

SPACER

9

1343707061

WASHER 13

10

1008707829

BOLT M 12X30

11

1309412013

SHIM 60X75X1

12

1309412825

SHIM 60X75X2

13

1309412834

SHIM 60X75X3

14

0190122015

PIN, BOOM CYL

15

1309412425

SHIM 50X62X2

16

1309412434

SHIM 50X62X3

17

5809625686

BUSHING 50X55X65X50

18

1455622750

SNAP RING

19

0190123002

INTERMEDIATE BOOM Was 6190123002 - A

20

0209127041

PIN

21

0209127045

ZINC COATED RING

22

1212707446

SLOTTED NUT

23

0176105230

PIN

24

CYLINDER, INTERMEDIATE BOOM See Illustration HYDRAULIC CYLINDER-BOOM INTERMEDIATE CIRCULAR/ B27477

25

CYLINDER, DIPPER ARM See Illustration HYDRAULIC CYLINDER - BOOM/ B27478

26

CYLINDER, BOOM See Illustration HYDRAULIC CYLINDER - DIPPER ARM/ B27479
