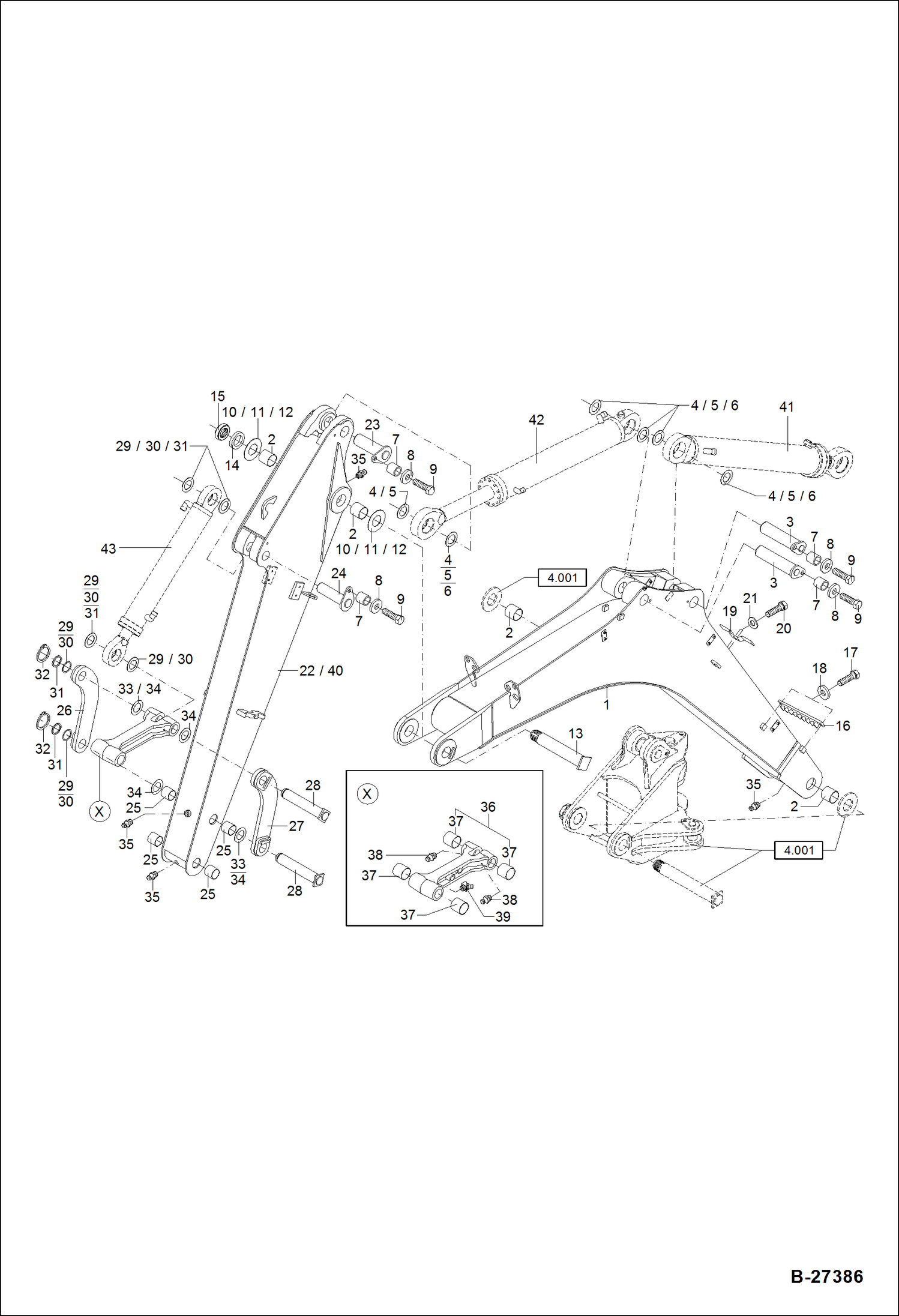

Запчасти Bobcat ZX75 BOOM, DIPPER ARM - MONO WORK EQUIPMENT

1

0190105002

BOOM

2

5809625667

BUSHING

3

0155128043

PIN

4

1309412013

SHIM 60X75X1

5

1309412825

SHIM 60X75X2

6

1309412834

SHIM 60X75X3

7

0156029033

SPACER

8

1343707061

WASHER 13

9

1008707829

BOLT M 12X30

10

0202524050

WASHER 60,5X120X2

11

0203024057

WASHER 60,5X120X2,5

12

0202524051

WASHER 60,5X120X3

13

0190105020

PIN 60X370

14

0209127045

ZINC COATED RING

15

1212707446

SLOTTED NUT M 56X2

16

0190105025

HOSE CLIP

17

1008707618

BOLT M 8X30

18

1343707057

WASHER 8,4

19

6190105030

BRACKET

20

1008707018

BOLT M 8X20

21

1290707018

WASHER 8,4

22

0190106502

DIPPER ARM 2200mm

23

0176106055

PIN

24

0156132075

PIN

25

5809625553

BUSHING, PRESS FIT 1.98'' ID, 2.17'' OD

26

0176106065

TILTING LEVER

27

0176106070

TILTING LEVER

28

0211007110

PIN

29

1309412412

SHIM 50X62X1

30

1309412425

SHIM 50X62X2

31

1309412434

SHIM 50X62X3

32

1455622750

SNAP RING 50X3

33

0194019025

WASHER 50,5X100X2

34

0194002226

WASHER 50,5X100X3

35

1607003010

GREASE NIPPLE M 10X1

36

0209129055

GUIDE LINK ASSY W/Ref. 37

37

5809625675

BUSHING 50X55X60

38

1607010010

GREASE ZERK M 10X1

39

1608010010

GREASE ZERK M 10X1 45?

40

0190112002

DIPPER ARM 2200MM

41

CYLINDER, BOOM See Illustration HYDRAULIC CYLINDER - BOOM/ B27478

42

CYLINDER, DIPPER ARM See Illustration HYDRAULIC CYLINDER - DIPPER ARM/ B27479

43

CYLINDER, BUCKET See Illustration HYDRAULIC CYLINDER - BUCKET/ B27480
