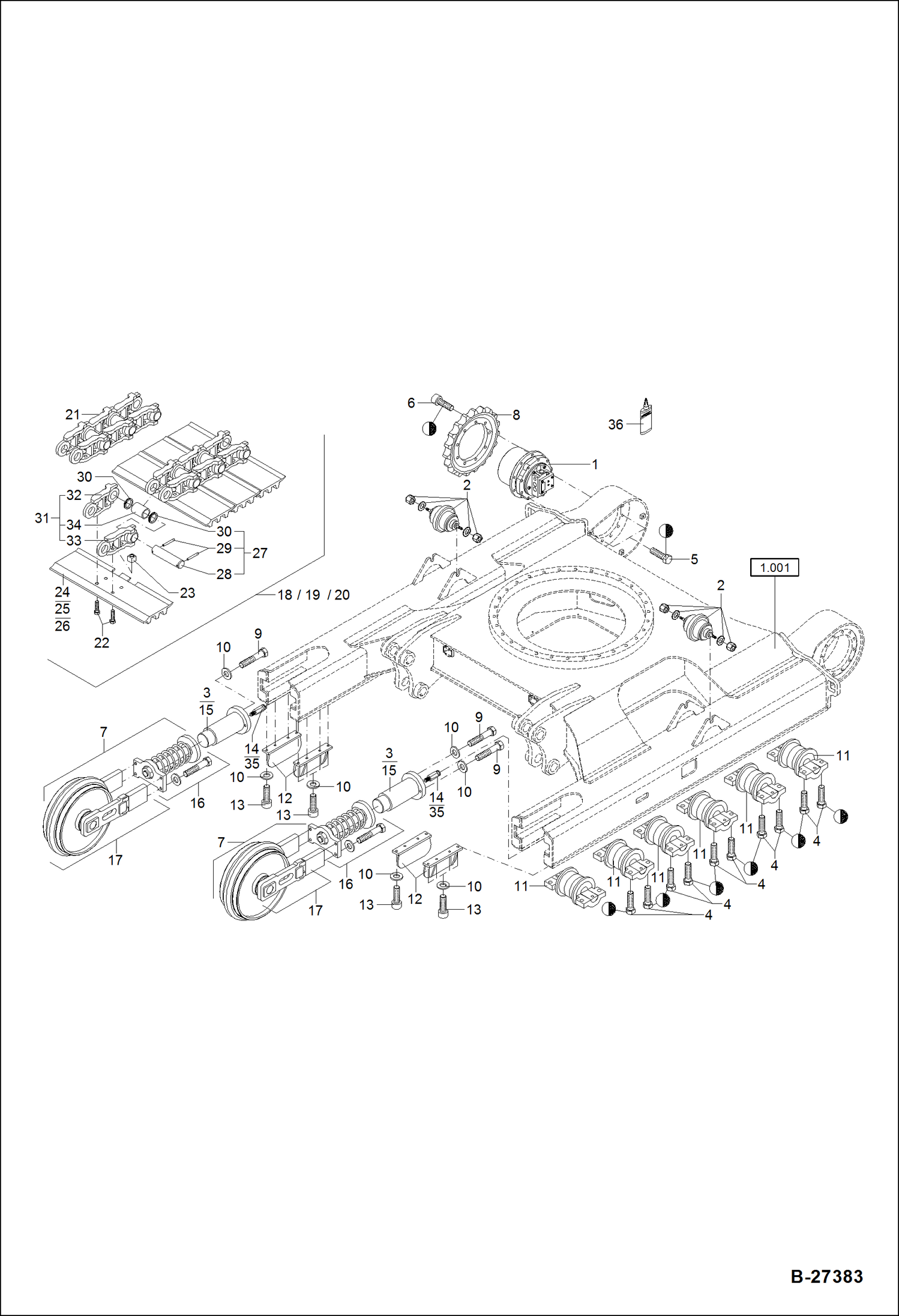

Запчасти Bobcat ZX75 TRACK VERSION, STEEL TRACK UNDERCARRIAGE

1

5459660217

MOTOR, DRIVE HYD See Illustration TRAVEL DRIVE/ B27485 - Was 5999991227 - D

2

5527640005

ROLLER

3

5671663035

CYLINDER W/Ref. 15 - Was 5671658430 - A

4

1007707630

BOLT M 12X50

5

1008907036

BOLT M 14X40

6

1045907041

BOLT M 16X40

7

5671663003

IDLER, TRACK FRONT W/Ref. 16 & 17 - Was 5671658434 - A

8

5671658426

SPROCKET STEEL CRAWLERS

9

1007707430

BOLT M 12X45

10

1290707022

WASHER 13

11

5671658420

TRACK ROLLER

12

6190002060

IDLER COVER

13

1045707829

BOLT M 12X30

14

5382211542

NIPPLE

15

5671658512

SEAL KIT

16

SPRING, TENSION NLA - Order Ref. 7 - Was 5671660290

17

IDLER NLA - Order Ref. 7 - Was 5671660289

18

5671658424

TRACK, STEEL 450mm - Ref. 21-23,24

19

5671658475

STEEL TRACK 500mm - Ref. 21-23,25

20

5671658485

STEEL TRACK 600mm - Ref. 21-23,26

21

5671660266

STEEL TRACK

22

5671658333

BOLT

23

5671658334

NUT

24

5671660285

GROUSER 500mm

25

5671658332

TRACK SHOE (600MM) 600mm

26

5671660269

TRACK SHOE (450MM) 450mm

27

5671658508

PIN Ref. 28-30

28

PIN NLA - Order Ref. 27

29

PIN, COTTER NLA - Order Ref. 27

30

RING, SPACER NLA - Order Ref. 27

31

5671658510

REPAIR LINK ASSY Ref. 32-34

32

LINK, TRACK LH NLA - Order Ref. 31

33

LINK, TRACK RH NLA - Order Ref. 31

34

BUSHING, TRACK NLA - Order Ref. 31

35

1955005118

SEAL RING 17,4X24X1,5

36

MCS001035A

GLUE
