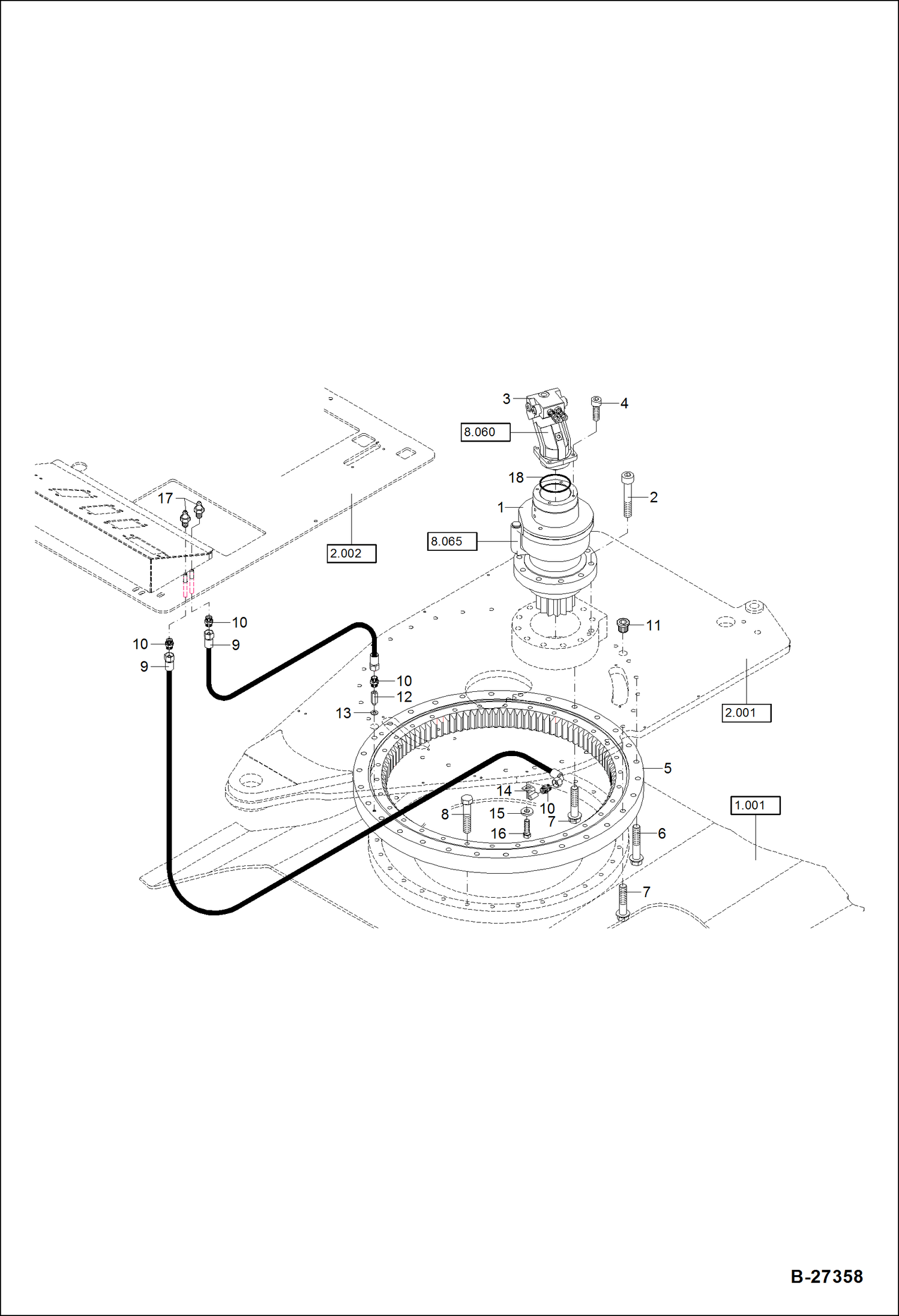

Запчасти Bobcat ZX75 SLEW EQUIPMENT UNDERCARRIAGE

1

5904670005

SLEW GEAR See Illustration SLEW GEAR / B27489

2

1045707642

BOLT M 16X120

3

5364664075

TRAVEL MOTOR See Illustration HYDRAULIC MOTOR - ROTARY DRIVE/ B27488

4

1047341124

BOLT M 10X30

5

5609661455

SLEW RING

6

1017341841

BOLT M 16X80

7

1017341641

BOLT M 16X70

8

1007341242

BOLT M 16X100

9

0190006008

HOSE ASSEMBLY CPL.

10

1915060553

FITTING

11

1912060451

PLUG

12

0209006040

ADAPTER

13

1636815272

SEAL RING 10X14X2

14

0176006010

NOZZLE

15

1343707057

WASHER 8,4

16

1008707018

BOLT M 8X20

17

1607003010

GREASE NIPPLE M 10X1

18

1970956336

O-RING 98X3
