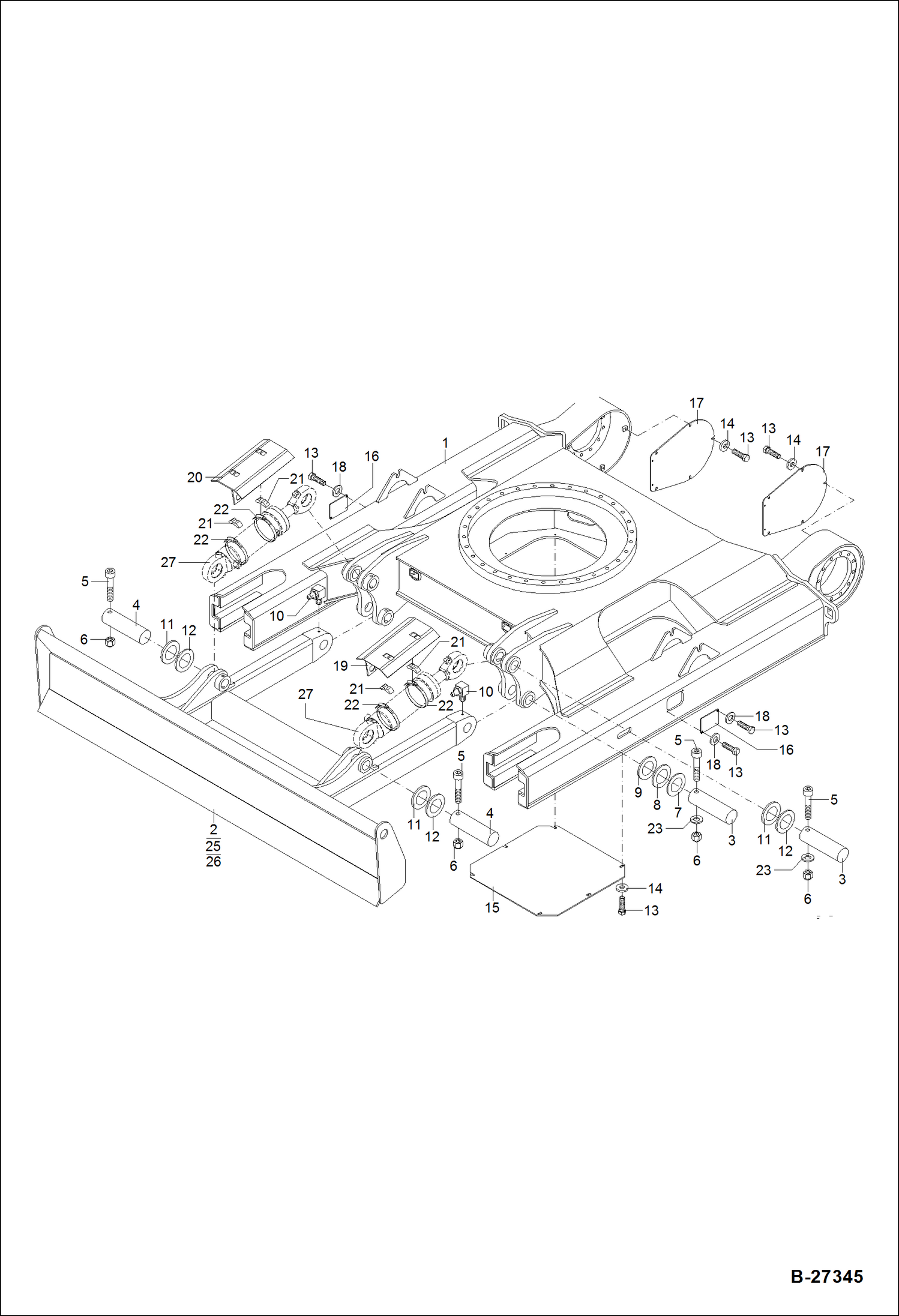

Запчасти Bobcat ZX75 UNDER CARRIAGE, SUPPORT BLADE, COVER UNDERCARRIAGE

1

6190001005

UNDERCARRIAGE

2

0190002030

SUPPORT BLADE 2330MM

3

0205209020

PIN

4

0205209021

PIN

5

1045707631

BOLT M 12X100

6

1212251014

NUT M 12

7

0194019227

WASHER 50,5X100X1,5

8

0194019025

WASHER 50,5X100X2

9

0194002226

WASHER 50,5X100X3

10

1608003010

GREASE NIPPLE M 10X1

11

1309412434

SHIM 50X62X3

12

1309412425

SHIM 50X62X2

13

1008707018

BOLT M 8X20

14

1343707057

WASHER 8,4

15

6190002011

COVER

16

6189602020

COVER RUNNING WHEE

17

6190002010

COVER

18

1290707018

WASHER

19

0190002055

SHIELD

20

0190002051

PROTECTION

21

0110012050

RUBBER LAYER

22

5660095400

HOSE CLIP

23

1290707022

WASHER 13

25

0190319002

SUPPORT BLADE 2480MM

26

0190315002

SUPPORT BLADE

27

CYLINDER, SUPPORT BLADE See Illustration HYDRAULIC CYLINDER - SUPPORT BLADE/ B27481
