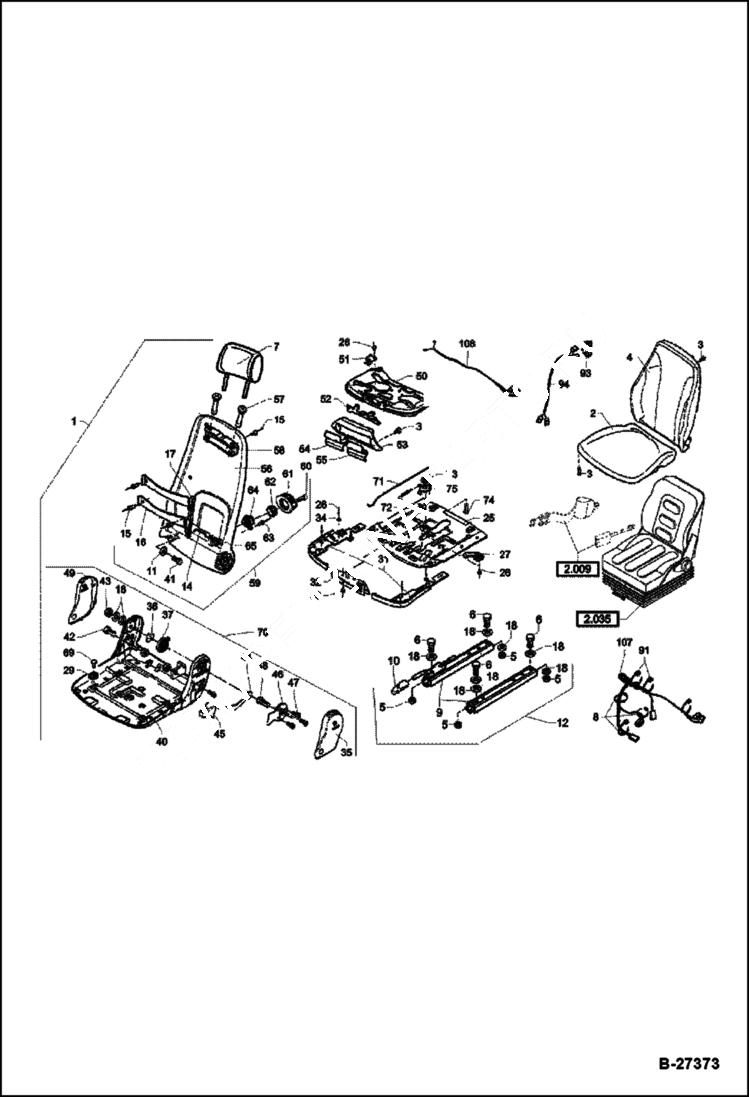

Запчасти Bobcat ZX75 OPERATORS SEAT WITH SEAT HEATING - MSG 95 MAIN FRAME
№
Артикул
Название
Примечание
Количество
1
5305661755
SEAT CPL Ref. 2-108 & Ref. 1-94 on ILL. B27374
2
5305670202
PAD, SEAT W/Ref. 3
3
5305670026
BOLT M 5X16
4
5305670201
PAD, BACKREST W/Ref. 3
5
1210707011
NUT M 8
6
1008707817
BOLT M 8
7
5305670101
HEADREST
8
5305670203
TIE STRAP
9
5305670204
ADJUSTABLE RAIL W/Ref. 10
10
5305670190
HANDLE
11
5305670104
WASHER 8,4
12
5305670205
MOUNTING PARTS CPL. Ref. 5,6,11,18
14
5305670206
ROD
15
5305670134
RIVET
16
5305670207
PLATE
17
5305670208
BRACKET
18
5305670200
WASHER 8,4
25
5305670137
PLATE W/Ref. 26,27,32
26
5305670138
RIVET
27
5305670139
SUSPENSION PLATE
29
5305670140
SLIDING BLOCK
31
5305670141
COVER W/Ref. 26,34
32
5305670032
HANDLE W/Ref. 33
33
5305670142
RIVET
34
5305670209
WASHER 4,3
35
5305670280
COVER
36
5305670143
BEARING
37
5305670034
SPRING W/Ref. 26,27,32
40
5305670144
SEAT PLATE ASSY W/Ref. 29,69
41
1008707019
BOLT M 8X40
42
1008707318
BOLT M 8X25
43
1212251011
NUT
44
5305670035
LEVER
45
5305670036
HANDLE
46
5305670037
ADAPTER PLATE
47
5305670038
BOLT M 6X10
49
5305670282
COVER RIGHT
50
5305670145
ROCKER CPL W/Ref. 3, 51
51
5305670146
SUSPENSION PLATE W/Ref. 26
52
5305670040
LEVER W/Ref. 14-17,61-65
53
5305670147
COVER W/Ref. 3
54
5305670041
HANDLE W/Ref. 51
55
5305670042
HANDLE
56
5305670194
BACK REST W/Ref. 15,63
57
5305670149
SLEEVE
58
5305670150
BRACKET
59
5305670211
BACK SUPPORT ASSY W/Ref. 14-15,61-65
60
1045707512
BOLT M 6X10
61
5305670212
HANDLE CPL W/Ref. 60
62
5305670213
PINION
63
5305670214
RIVET
64
5305670215
BRAKE
65
5305670216
BRACKET
68
5305670152
BOLT M 8X18
69
5305670153
RIVET
70
5305670154
MOUNTING PARTS BACKR Ref. 11,36,37,41-47,68
71
5305670155
ROD
72
5305670043
SPRING
73
5305670156
RING
74
5305670157
BOLT M 8X12
75
5305670195
LEVER W/Ref. 72-74
91
5305670220
TIE STRAP
93
5305670096
SWITCH FLIP
94
5305670222
WIRE HARNESS
107
5305670223
WIRE HARNESS
108
0190117010
WIRE HARNESS
Выбрано товаров: 66
