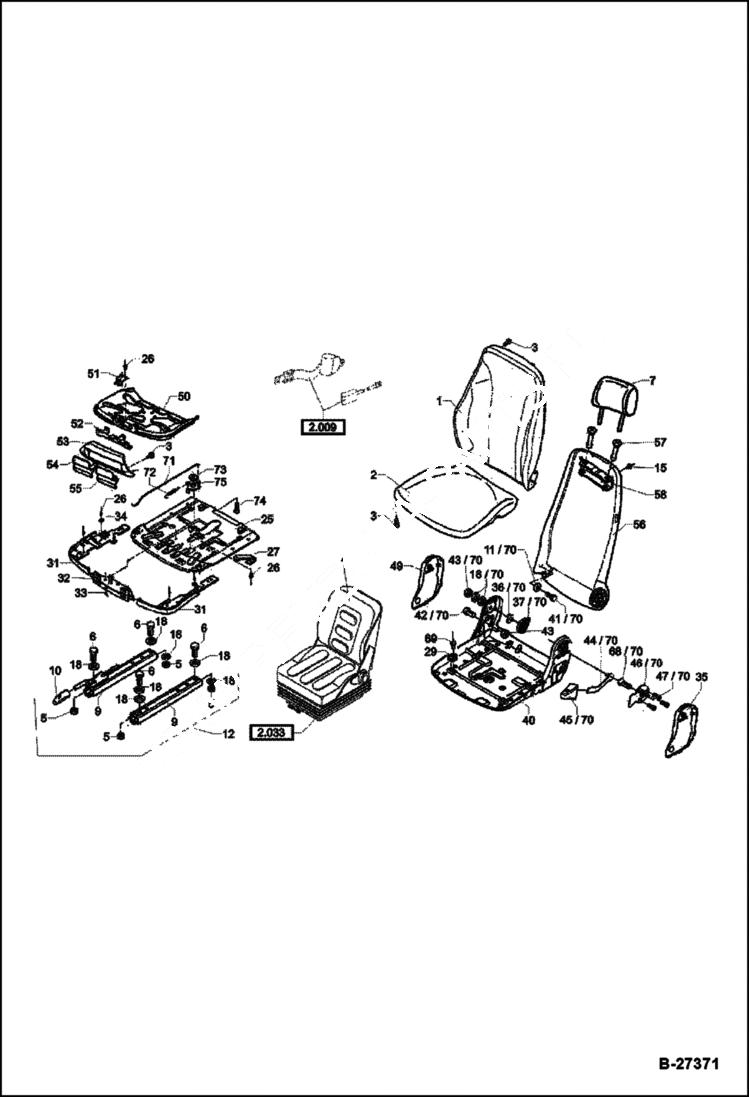

Запчасти Bobcat ZX75 OPERATORS SEAT - MSG 85 MAIN FRAME

1

5305670188

CUSHION BACK REST W/Ref. 3

2

5305670189

CUSHION SEAT W/Ref. 3

3

5305670026

BOLT

4

5305661655

OPERATORS SEAT MSG85/7 Ref. 1-3, 5-75 & Ref. 2-52 on ILL. B27372

5

1210707011

NUT M 8

6

1008707817

BOLT M 8X16

7

5305670101

HEADREST

9

5305670186

ADJUSTING RAIL W/Ref. 10

10

5305670190

HANDLE

11

5305670104

WASHER 8,4

12

5305670191

MOUNTING PARTS Ref. 5, 6, 11 & 18

15

5305670134

RIVET

18

5305670200

WASHER 8,4

25

5305670137

PLATE W/Ref. 26, 27,.32

26

5305670138

RIVET

27

5305670139

SUSPENSION PLATE

29

5305670140

SLIDING BLOCK

31

5305670141

COVER W/Ref. 26, 34

32

5305670032

HANDLE W/Ref. 33

33

5305670142

RIVET

34

1307707010

WASHER 4,3

35

5305670280

COVER

36

5305670143

BEARING

37

5305670034

SPRING

40

5305670144

SEAT PLATE ASSY W/Ref. 29,69

41

1008707019

BOLT M 8X40

42

1008707318

BOLT M 8X25

43

1212251011

NUT M 8

44

5305670035

LEVER

45

5305670036

HANDLE

46

5305670037

ADAPTER PLATE

47

5305670038

BOLT M 6X10

49

5305670282

COVER RIGHT

50

5305670193

ROCKER W/Ref. 3,51

51

5305670146

SUSPENSION PLATE W/Ref. 26

52

5305670040

LEVER

53

5305670147

COVER W/Ref. 3

54

5305670041

HANDLE W/Ref. 71

55

5305670042

HANDLE

56

5305670194

BACK REST W/Ref. 15, 63

57

5305670149

SLEEVE

58

5305670150

BRACKET

68

5305670152

BOLT M 8X18

69

5305670153

RIVET

70

5305670154

MOUNTING PARTS BACKR Ref. 11,18,36,37,41-47,68

71

5305670155

ROD

72

5305670043

SPRING

73

5305670156

RING

74

5305670157

BOLT M 8X12

75

5305670195

LEVER W/Ref. 72, 73, 74
