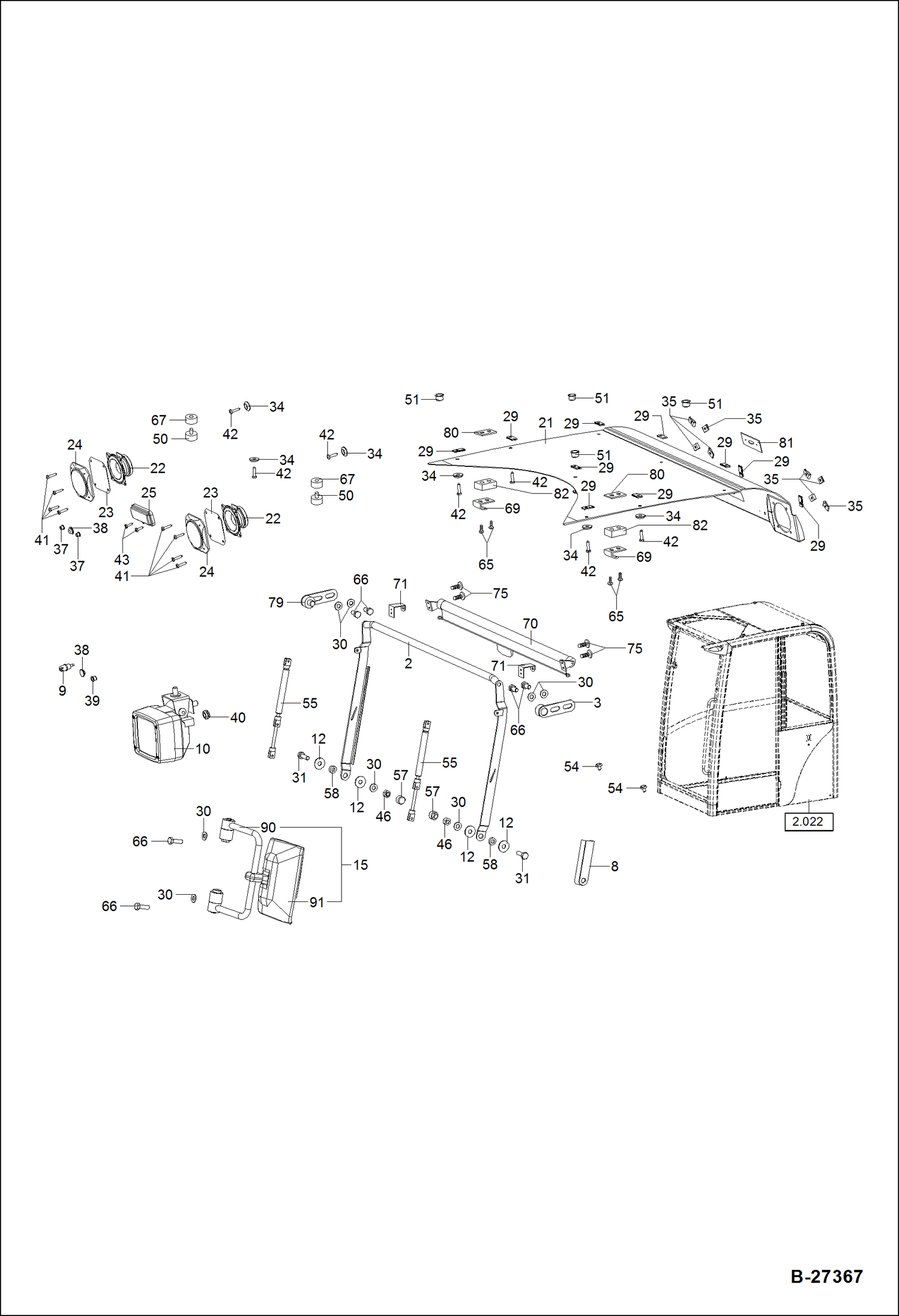

Запчасти Bobcat ZX75 OPERATORS CAB - EQUIPMENT 2 MAIN FRAME

2

5388665063

FRAME RAL 9005

3

5388665061

HOLDER RAL 9005

8

5388665160

PROTECTION COVER

9

5388662108

NOZZLE

10

5350661223

WORKING LIGHT Was 5388660811 - A

12

1307707018

WASHER

15

5388662087

MIRROR Ref. 90 & 91

21

5388665161

COVERING

22

5388662550

LOUDSPEAKER

23

5388662814

DUST PROTECTION

24

5388662575

LOUDSPEAKER COVER

25

5388662690

INTERIOR LIGHT

29

5388662515

CLIP

30

1290707018

WASHER

31

1008707318

BOLT M 8X25

34

5388662561

WASHER

35

5388662687

CLIP

37

5388662794

CAP

38

5388662057

PLUG

39

5388662649

CAP

40

5388661429

WASHER RUBBER

41

5388662945

BOLT 4,2X22

42

5388662046

BOLT 4;8X22

43

5388662796

BOLT 4,2x16

46

5388662946

NUT M 8

50

5388662947

STOP

51

5388662323

COVER

54

5388661482

RUBBER BLOCK

55

5388662572

GAS PRESSURE SPR.

57

5388661422

GUARD CAP

58

5388662892

BUSHING

65

5388665162

BOLT 3,5X32

66

1008707018

BOLT M 8X20

67

5388662777

SPACER RING

69

5388665045

HOLDER

70

5388665044

SUN VISER

71

5388665043

HOLDER

75

5388662880

BOLT M 4X16

79

5388665046

HOLDER

80

5388665163

PLATE

81

5388665164

PLATE

82

5388665165

BLOCK

90

5388661453

ROD MIRROR

91

5388661484

MIRROR
