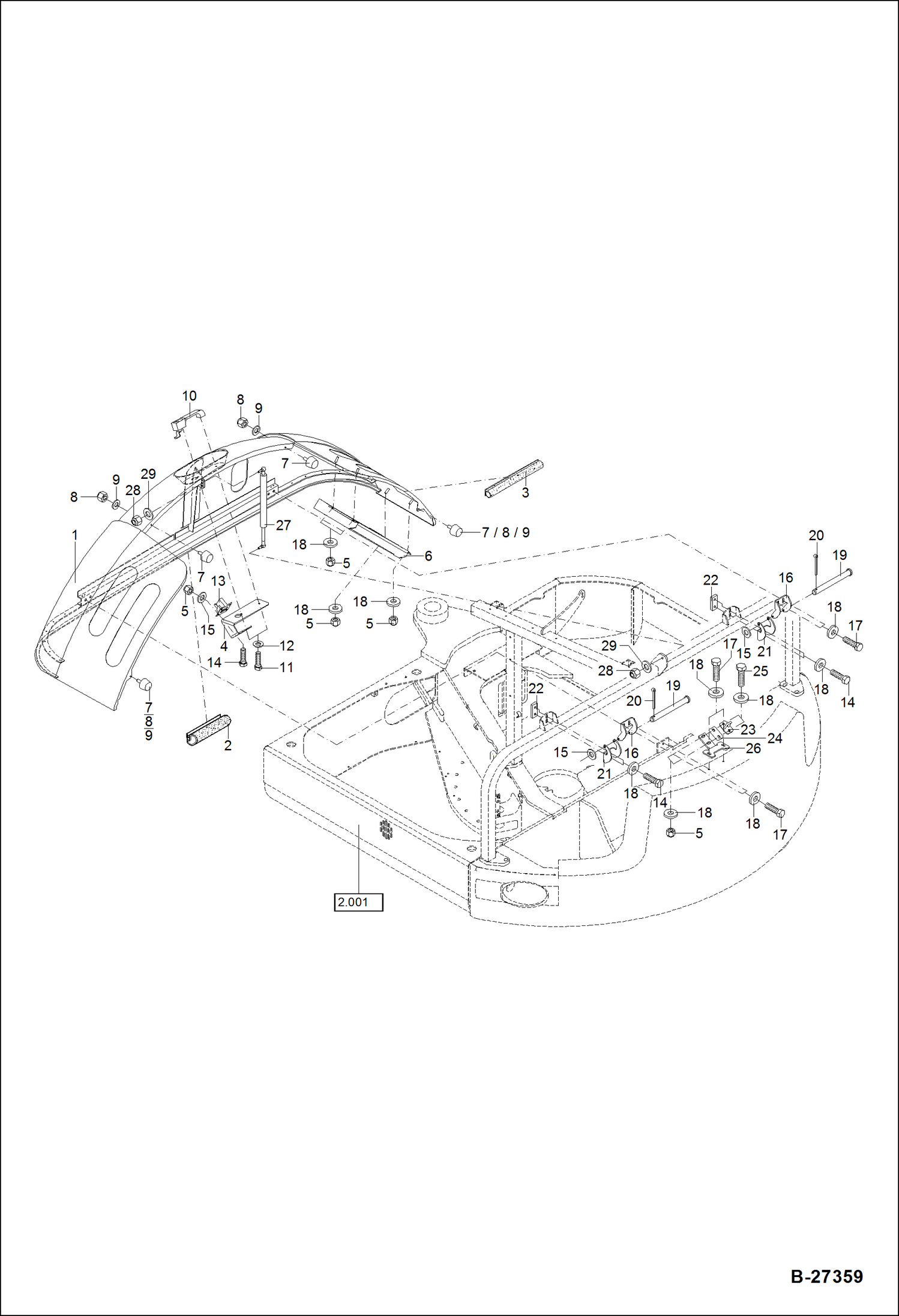

Запчасти Bobcat ZX75 BACK HOOD MAIN FRAME

1

0190028106

BACK HOOD

2

7025098

SEAL, BULK/MTR - A

3

7024438

SEAL - A

4

6190028030

BRACKET

5

1212251011

NUT M 8

6

6190028090

GRID

7

5101290955

STOP

8

1212251009

NUT M 6

9

1307707014

WASHER 6,4

10

5354604442

PLASTIC HANDLE

11

1008707712

BOLT M 6X14

12

1290707014

WASHER 6,4

13

5354604335

HOOD LATCH

14

1008707018

BOLT M 8X20

15

1290707018

WASHER 8,4

16

0190028029

HINGE

17

1008707318

BOLT M 8X25

18

1343707057

WASHER 8,4

19

1360707139

PIN

20

1395707017

COTTER PIN

21

6190028028

HINGE

22

0187528017

THREADED PLATE

23

5354604338

COTTER

24

6176028067

FLAP

25

1008707618

BOLT M 8X30

26

6190028032

ANGLE PLATE

27

5696636600

GAS SPRING Was 5696636625 - A

28

1212251013

NUT M 10

29

1290707020

WASHER 10,5
