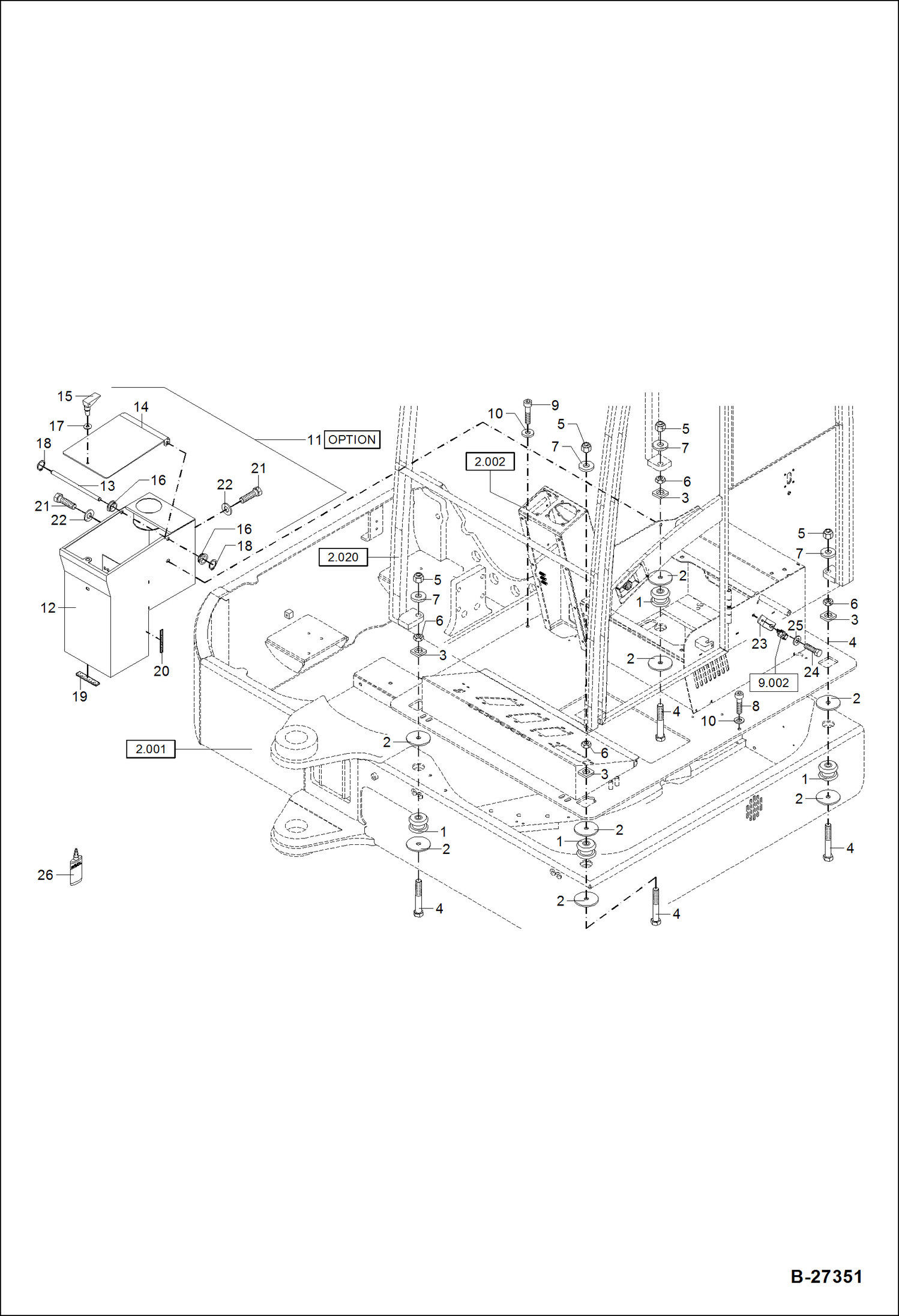

Запчасти Bobcat ZX75 CAB MOUNTING MAIN FRAME

1

5101290962

RUBBER MOUNT

2

5153656312

SHIM 16X80X5

3

0190026081

TORSION LOCK

4

1007707237

BOLT M 14X100

5

1212251015

NUT M 14

6

1211707015

NUT M 14

7

1343707063

WASHER 15

8

1045707430

BOLT M 12X45

9

1045707730

BOLT M 12X55

10

1343707061

WASHER 13

11

6190026068

BOX Ref. 12-18 OPTION

12

6190026070

BOX

13

0190026077

SHAFT

14

6190026078

COVER

15

5354606001

LOCKING

16

5657199001

PLAIN BEARING

17

1307707014

WASHER 6,4

18

1455622311

CIRCLIP 12X1

19

5354640120

RUBBER

20

5354600020

RUBBER 1=1 METER

21

1008707018

BOLT M 8X20

22

1290707018

WASHER 13

23

6190026032

BRACKET

24

1008707213

BOLT M 6X45

25

1290707014

WASHER 6,4

26

THREADLOCK NLA - Was 5075632325 - A
