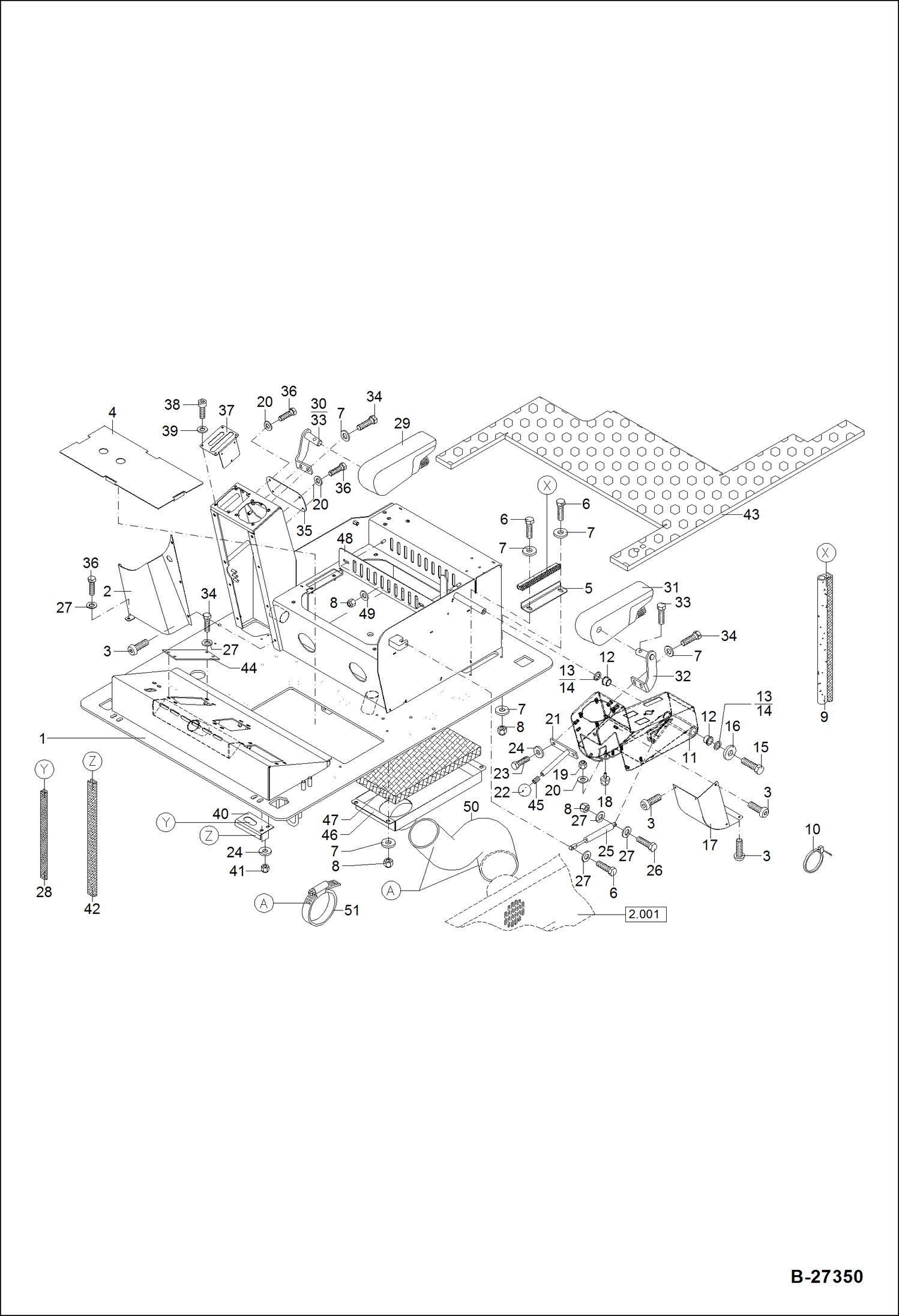

Запчасти Bobcat ZX75 FLOOR FRAME S/N XXXX/2842 & Abv MAIN FRAME

1

6207526002

FRAME, FLOOR

2

6207526030

COVER, CONSOLE

3

1125907909

BOLT M 5X16

4

6190026045

COVER

5

0202508020

BRACKET SUPPORT

6

1008707618

BOLT M 8X30

7

1343707057

WASHER 8,4

8

1212251011

NUT M 8

9

7023313

SEALING SECTION - A

10

5653093560

BINDER 4,8X200

11

6190026020

ARMREST

12

0191114138

BUSHING

13

1309412411

SHIM 20X28X1

14

1309412124

SHIM 20X28X2

15

1008707423

BOLT M 10X16

16

1307707020

WASHER 10,5

17

6190026029

COVER

18

5101290955

STOP

19

1212251009

NUT M 6

20

1290707014

WASHER 6,4

21

6209026060

ROD W/Ref. 22,45

22

1541930627

BALL KNOB

23

1008707513

BOLT M 6X25

24

1343707055

WASHER 6,4

25

5696636551

GAS PRESSURE SPR.

26

1008707019

BOLT M 8X40

27

1290707018

WASHER 8,4

28

5354600010

RUBBER PROFILE

29

5305661702

ARMREST, RIGHT

30

0190026050

BRACKET

31

5305661701

ARMREST, LEFT

32

0190026054

BRACKET

33

5305661749

BOLT

34

1008707318

BOLT M 8X25

35

6190026058

COVER

36

1008707912

BOLT M 6X16

37

6190026040

ANGLE PLATE

38

1045707909

BOLT M 5X16

39

1290707012

WASHER 5,3

40

6190026057

COVER

41

1210707009

NUT M 6

42

5354600000

EDGE PROTECTION

43

0234011105

FLOOR MAT

44

6154506022

COVER

45

5666660925

SLEEVE

46

6234026035

SUCTION BOX

47

5501661034

FILTER ELEMENT

48

6190026090

AIR BAFFLE

49

1307707018

WASHER 8,4

50

5367628917

HOSE

51

5660095500

CLAMP
