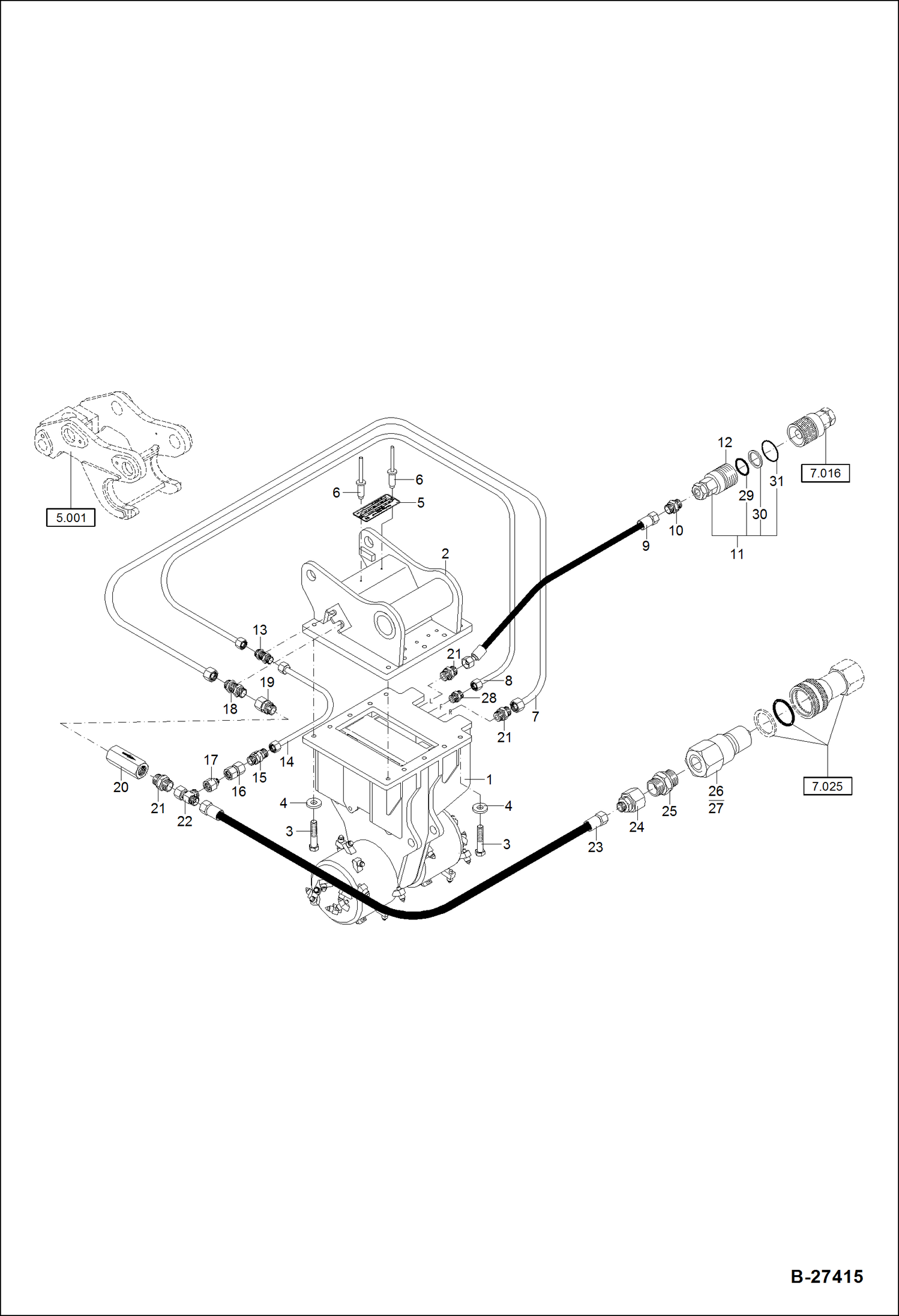

Запчасти Bobcat ZX75 TRANSVERSE CUTTING UNIT W/Hydraulic Installation ACCESSORIES & OPTIONS

1

6389590000

TRANSVERSE CUTTING UNIT WS30

2

6190252002

CUTTING UNIT BRACKET

3

1007907441

BOLT M 16X60

4

1990707029

WASHER 17X30,7X3,2

5

PLATE, NAME NLA

6

1940000939

RIVET 4,8X16,5

7

0190252056

TUBING

8

0190252058

TUBING

9

4266121404

HOSE

10

1915060566

FITTING

11

5260301140

COUPLING SOCKET W/Ref. 29-31

12

5260301147

COVER NUT

13

1913060153

FITTING

14

0209252010

TUBING

15

1915991796

CHECK VALVE 1BAR

16

1915060159

FITTING

17

1934060163

FITTING

18

1913060155

FITTING

19

1938060175

FITTING

20

5167659828

CHECK VALVE 10BAR

21

1915060470

FITTING

22

1919060355

FITTING

23

4266150403

HOSE

24

1934060176

FITTING

25

1915060891

FITTING

26

5000105100

COUPLING PLUG

27

5000106000

DUST CAP

28

1915060261

FITTING

29

1970956629

O-RING 28X3

30

5260301146

BACK UP RING

31

1970956830

O-RING 36X3X42
