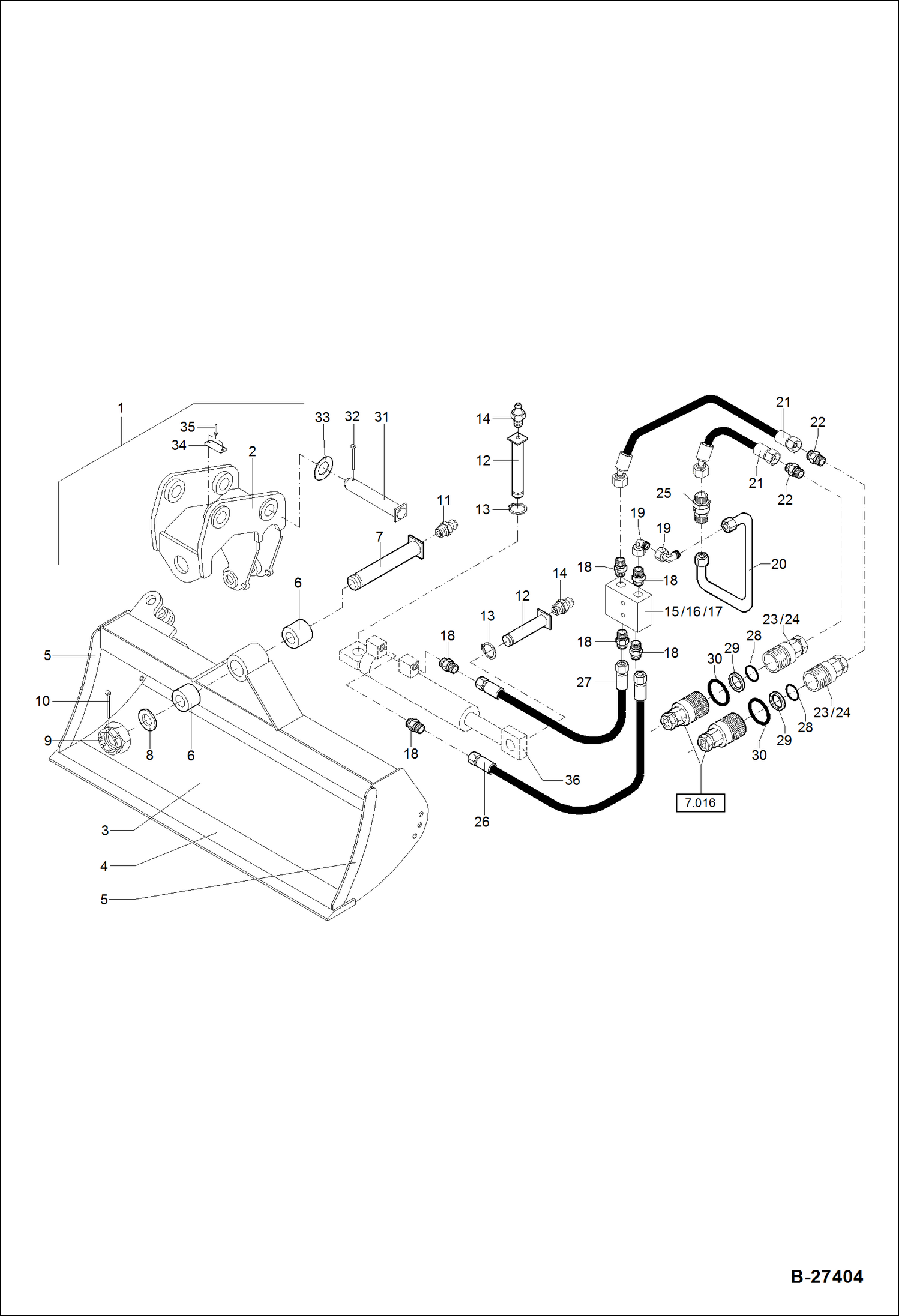

Запчасти Bobcat ZX75 SWIVELLING BUCKET - 1500MM ACCESSORIES & OPTIONS

1

6190246500

BUCKET Ref. 2-27

2

5018001037

PIVOT MOUNT

3

5018001038

SWILLING BUCKET CMP

4

5018001039

CUTTING EDGE

5

5018001028

CUTTING EDGE

6

5018001005

CLAMPING BUSH

7

5018001006

PIN

8

1290707076

SHIM 92X50X8

9

1218251840

CASTLE NUT M 48X3

10

1395707838

COTTER PIN 8X90

11

1607003010

GREASE NIPPLE M 10X1

12

5018001007

PIN

13

5018001008

CIRCLIP

14

1607003008

GREASE NIPPLE M 8X1

15

5018001040

VALVE

16

5018001015

BOLT M 6X50

17

1307707014

WASHER 6.4

18

5018001017

FITTING

19

5018001018

FITTING

20

5018001041

TUBELINE

21

5018001020

HYDR. HOSE

22

5018001021

FITTING

23

5260301140

COUPLING SOCKET

24

5260301147

COVER NUT

25

5018001024

FITTING

26

5018001025

HYDR. HOSE

27

5018001026

HYDR. HOSE

28

1970956629

O-RING

29

5260301146

BACK UP RING

30

1970956830

O-RING

31

0211005045

PIN

32

1395707642

COTTER PIN 10X80

33

1309412430

WASHER 50X75X2,5

34

PLATE, NAME NLA

35

1940000939

RIVET

36

CYLINDER, SWIVELLING BUCKET See Illustration HYDRAULIC CYLINDER - SWIVELLING BUCKET/ B27483
