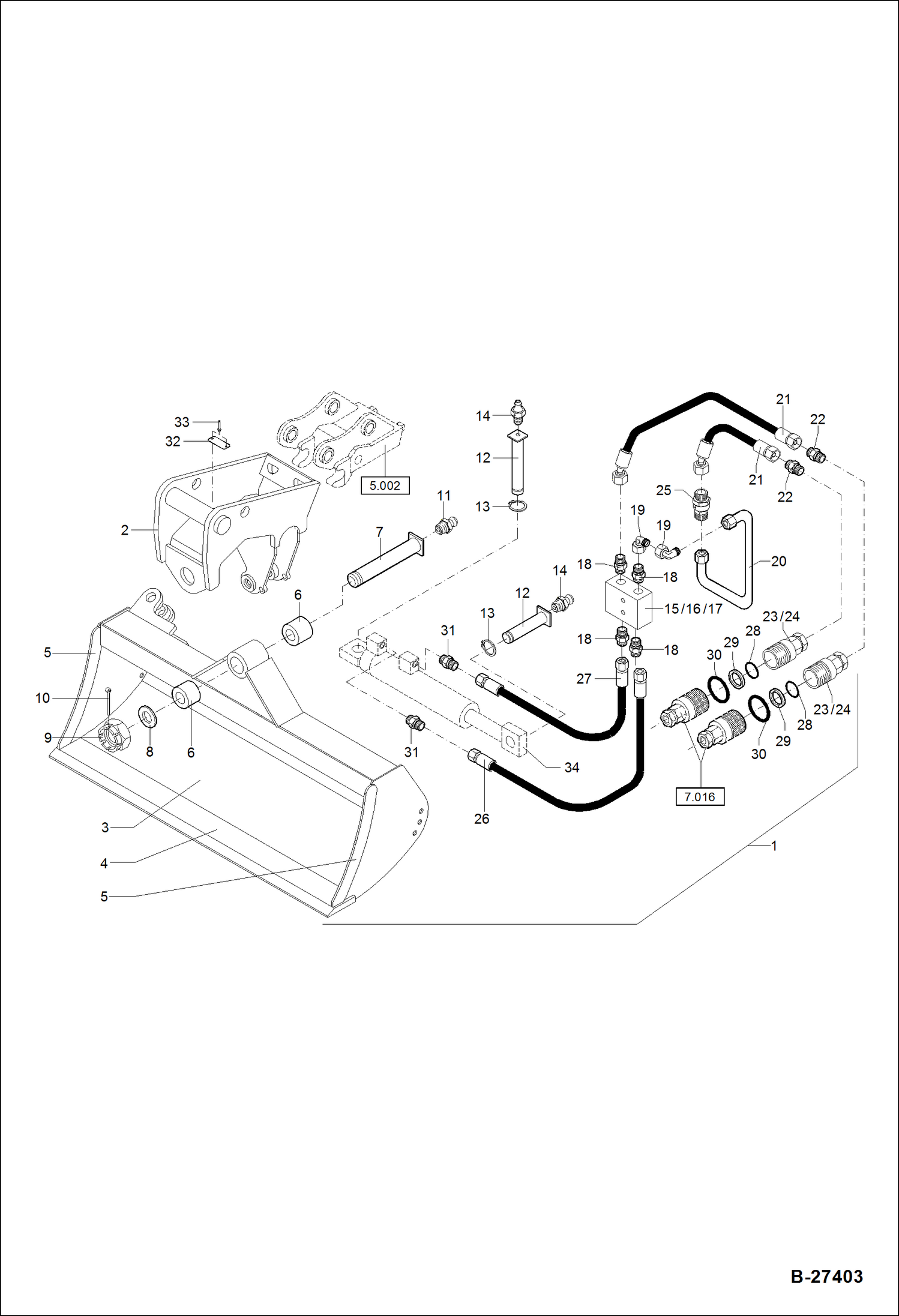

Запчасти Bobcat ZX75 SWIVELLING BUCKET - 1500MM - MSO8 ACCESSORIES & OPTIONS

1

6190246700

BUCKET

2

5018001001

SWING ADAPTER

3

5018001071

SWIVEL BUCKET

4

5018001039

CUTTING EDGE

5

5018001028

CUTTING EDGE

6

5018001005

CLAMPING BUSH

7

5018001006

PIN

8

1290707076

SHIM 92X50X8

9

1218251840

CASTLE NUT M 48X3

10

1395707838

COTTER PIN 8X90

11

1607003010

GREASE NIPPLE M 10X1

12

5018001007

PIN

13

5018001008

CIRCLIP

14

1607003008

GREASE NIPPLE M 8X1

15

5018001040

VALVE

16

5018001015

BOLT M 6X50

17

1307707014

WASHER 6.4

18

5018001017

FITTING

19

5018001018

FITTING

20

5018001072

TUBELINE

21

5018001073

HOSE

22

5018001021

FITTING

23

5260301140

COUPLING SOCKET

24

5260301147

COVER NUT

25

5018001024

FITTING

26

5018001025

HYDR. HOSE

27

5018001026

HYDR. HOSE

28

1970956629

O-RING

29

5260301146

BACK UP RING

30

1970956830

O-RING

31

5018001027

FITTING

32

PLATE, NAME NLA

33

1940000939

RIVET

34

CYLINDER, SWIVELLING BUCKET See Illustration HYDRAULIC CYLINDER - SWIVELLING BUCKET/ B27483
