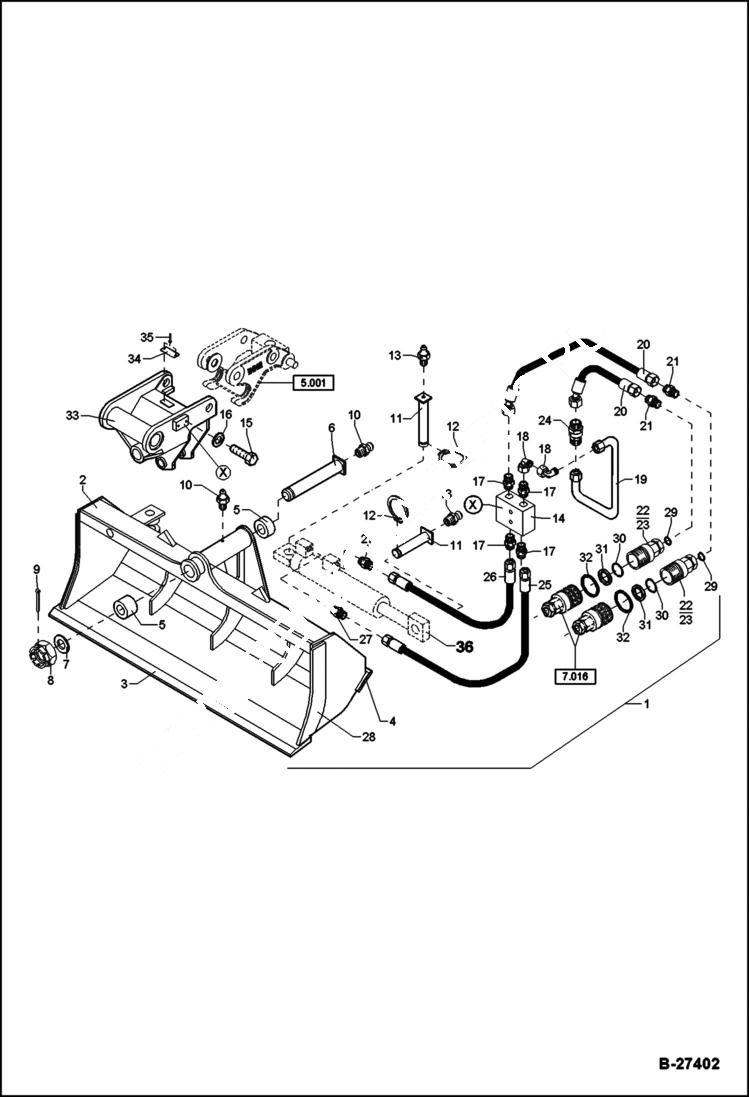

Запчасти Bobcat ZX75 SWIVELLING BUCKET - 1500MM ACCESSORIES & OPTIONS

1

6190246000

SWIVELLING BUCKET Ref. 2-35

2

5018001002

BUCKET W/Ref. 3,4

3

5018001003

CUTTING EDGE

4

5018001004

CUTTING EDGE

5

5018001005

CLAMPING BUSH

6

5018001006

PIN

7

1290707076

SHIM 92X50X8

8

1218251840

CASTLE NUT M 48X3

9

1395707838

COTTER PIN 8X90

10

1607003010

GREASE NIPPLE M 10X1

11

5018001007

PIN

12

5018001008

CIRCLIP

13

1607003008

GREASE NIPPLE M 8X1

14

5018001014

VALVE

15

5018001015

BOLT M 6X50

16

5018001016

WASHER 6.4

17

5018001017

FITTING

18

5018001018

FITTING

19

5018001019

HYDR. PIPE

20

5018001020

HYDR. HOSE

21

5018001021

FITTING

22

5260301140

COUPLING SOCKET

23

5260301147

COVER NUT

24

5018001024

FITTING

25

5018001060

HOSE

26

5018001061

HOSE

27

5018001017

FITTING

28

5018001028

CUTTING EDGE

29

1970956719

O-RING

30

1970956629

O-RING

31

5260301146

BACK UP RING

32

1970956830

O-RING

33

5018001001

SWING ADAPTER

34

PLATE, NAME NLA

35

1940000939

RIVET

36

CYLINDER, SWIVELLING BUCKET See Illustration HYDRAULIC CYLINDER - SWIVELLING BUCKET/ B27483
