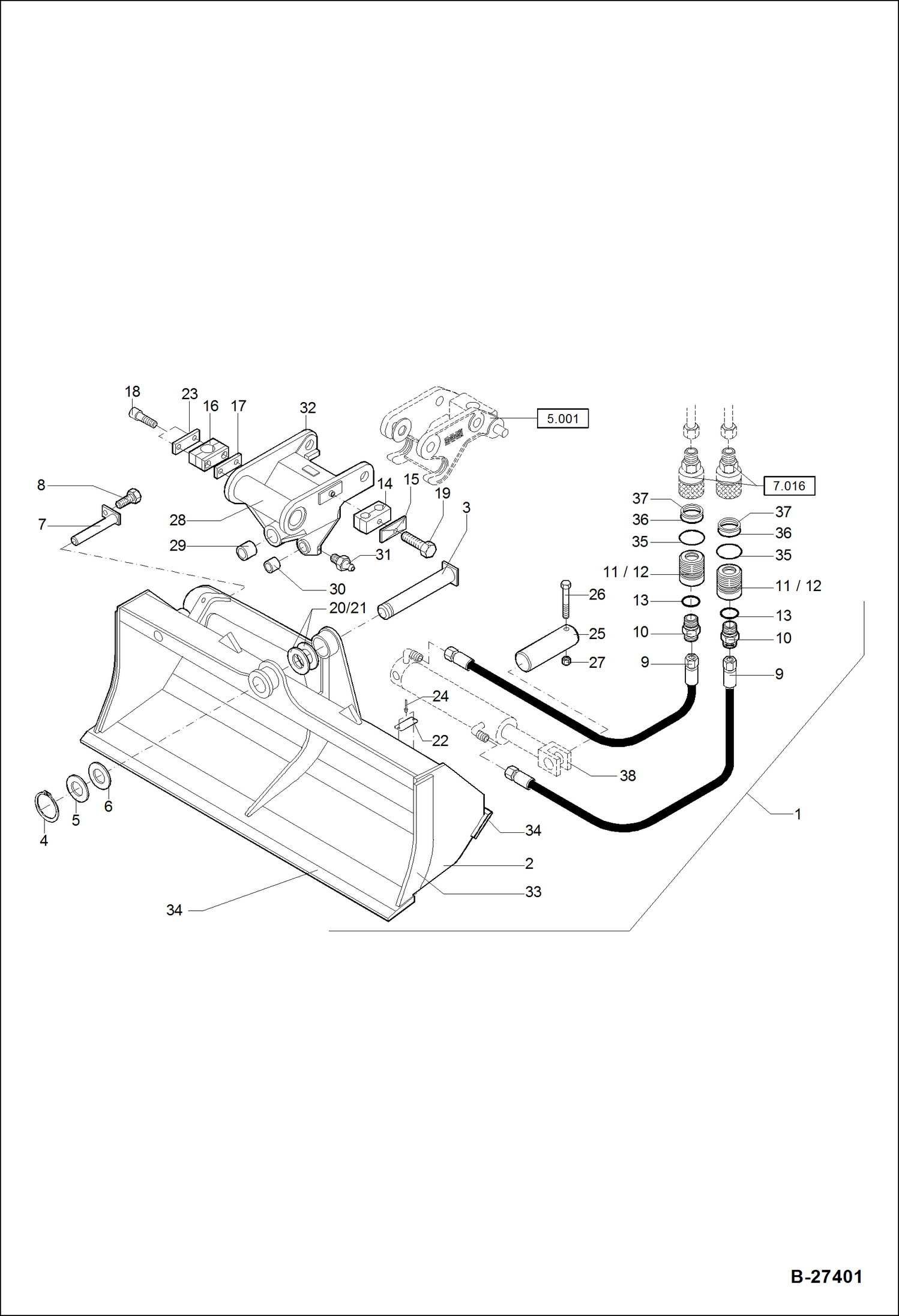

Запчасти Bobcat ZX75 SWIVELLING BUCKET - 1250MM ACCESSORIES & OPTIONS

1

6190245000

SWIVELLING BUCKET 1250 MM

2

6223331101

BUCKET 1250 MM

3

0210951040

PIN

4

1455622750

SNAP RING

5

1309412425

SHIM

6

1309412434

SHIM

7

0223246010

PIN, BUCKET

8

1008707817

BOLT M 8X16

9

4260222355

HOSE

10

6223241004

THROTTLE

11

5260301140

COUPLING SOCKET W/Ref. 37-39

12

5260301147

COVER NUT

13

1970956719

O-RING

14

5660199788

HOSE CLIP

15

5660200230

COVER PLATE

16

5660199791

HOSE CLIP

17

5660199807

PLATE

18

1007707214

BOLT M 6X45

19

1007707319

BOLT M 8X45

20

1309412926

SHIM

21

1309412934

SHIM

22

PLATE, NAME NLA

23

5660200130

COVER

24

1940000739

RIVET

25

0502045021

PIN

26

1007707120

BOLT M 8X80

27

1212251011

NUT M 8

28

6223340102

SLEW DEVICE

29

5557313800

BUSHING

30

0223330119

BUSHING

31

1607003006

GREASE NIPPLE

32

5660199789

WELDING PLATE

33

6223332018

CUTTING EDGE

34

6223331005

CUTTING EDGE 150X16X1250

35

1970956830

O-RING

36

1970956629

O-RING

37

5260301146

BACK UP RING

38

CYLINDER, SWIVELLING BUCKET See Illustration HYDRAULIC CYLINDER - SWIVELLING BUCKET/ B27482
