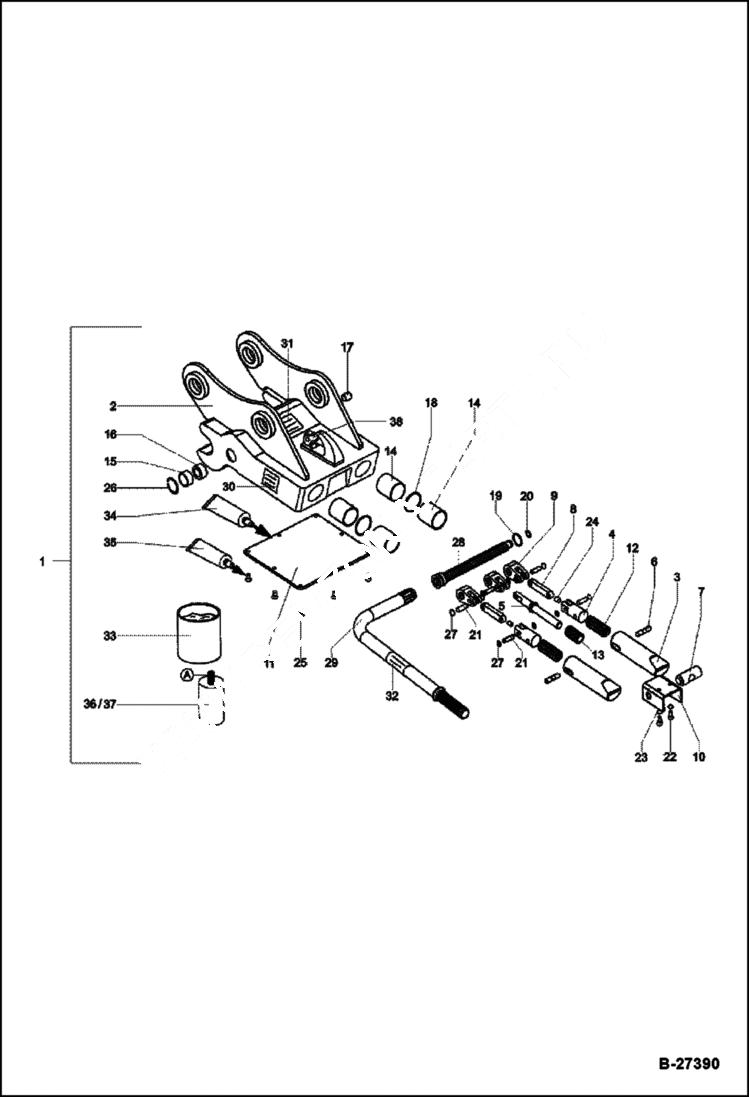

Запчасти Bobcat ZX75 QUICK MOUNT HITCH - MS08 ACCESSORIES & OPTIONS

1

6190130000

QUICK MOUNT HITCH Ref. 2-32

2

MOUNT, HITCH QUICK NLA - Order Ref. 1

3

5455660483

PIN

4

5455660484

PIN

5

5455660485

PIN

6

5455660486

PIN

7

5455660487

PIN

8

5455660488

REVERSING LEVER

9

5455660489

CATCH

10

5455660490

BRACKET

11

COVER NLA

12

5455660491

SPRING

13

5455660492

SPRING

14

5455660493

BUSHING

15

5455660494

BUSHING

16

5455660495

BUSHING

17

5455660496

BUSHING

18

5455660497

O-RING

19

5455660498

O-RING

20

5455660499

O-RING

21

5455660500

PIN

22

5455660501

BOLT

23

5455660502

SPRING WASHER

24

5455660503

STUD

25

1062707817

BOLT M8x16

26

5455660504

CIRCLIP

27

5455660505

CIRCLIP

28

5455660482

SHAFT

29

5455660506

TUBUL BOX WRENCH

30

5455660520

DECAL

31

PLATE, NAME NLA

32

5455660521

DECAL

33

4315005053

GREASE, TUBE 5KG

34

MCS001041A

SEAL JOINT

35

MCS001035A

GLUE

36

MCS005003A

SPRAY

37

MCS005002A

CLEANER, MOUNT QUICK

38

5455700037

KIT, REPAIR hook
