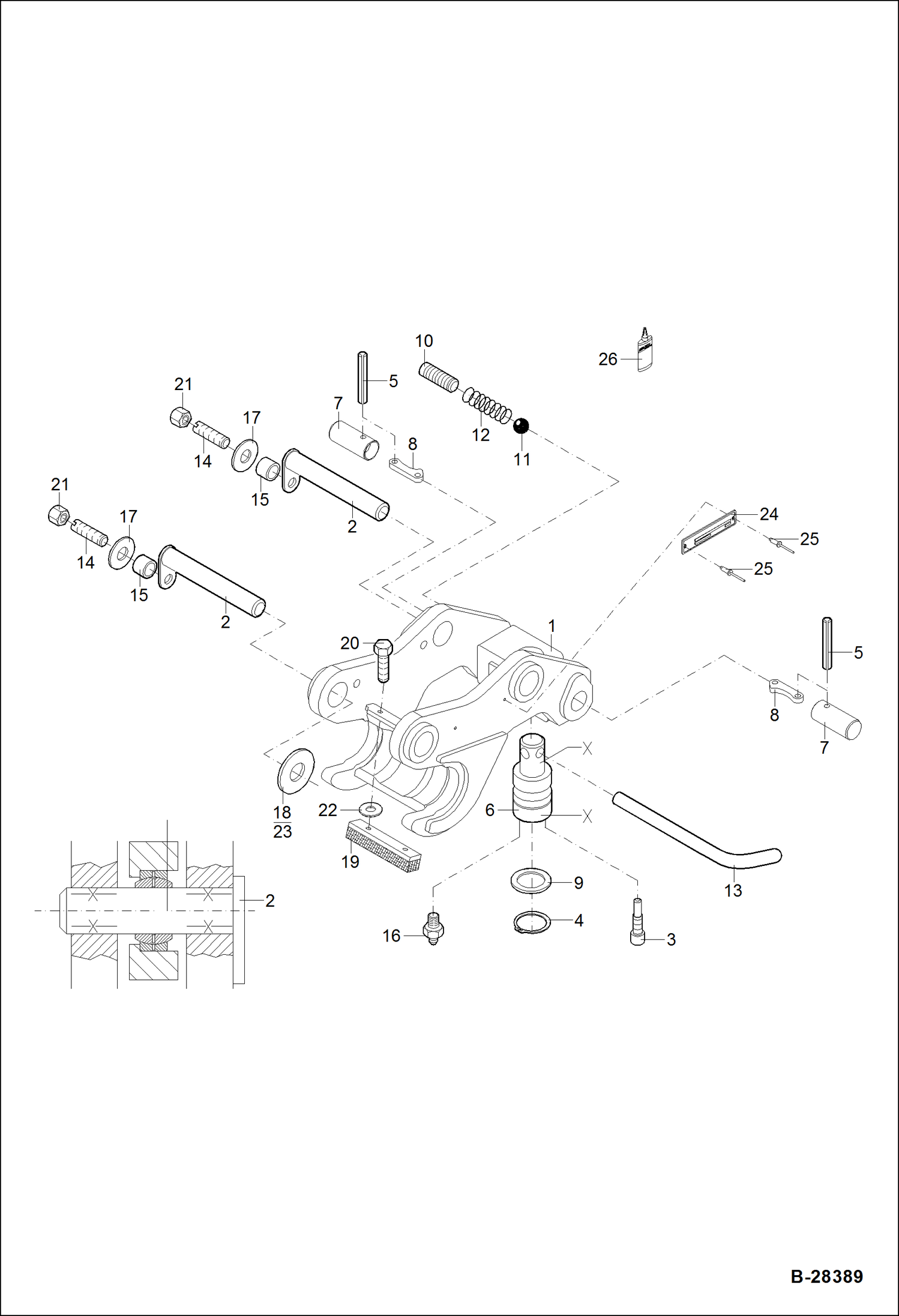

Запчасти Bobcat ZX75 QUICK MOUNT HITCH - STANDARD ACCESSORIES & OPTIONS

1

6203130002

QUICK MOUNT HITCH

2

0151703030

PIN

3

0155203109

PIN

4

1456622857

CIRCLIP

5

1380622641

PIN ROLL 10X36

6

0151703735

SCREW BOLT

7

0203130136

PIN

8

0203130137

FLAP

9

1309412434

SHIM 50X62X3

10

1133311041

STUD

11

1516638242

STEEL BALL

12

5064248405

SPRING

13

0151703641

LEVER

14

1124707529

BOLT M 12X25

15

0203130033

BUSHING

16

1607003010

GREASE NIPPLE M10X1

17

1307707022

WASHER

18

0194019025

WASHER 50,5X100X2

19

0203130013

RUBBER RAIL

20

1008707318

BOLT M 8X25

21

1212251014

NUT M 12

22

1307707018

WASHER 13

23

0194002226

WASHER 50,5X100X3

24

PLATE, NAME NLA

25

1940120941

RIVET 4,8X25,5

26

MCS001035A

GLUE
