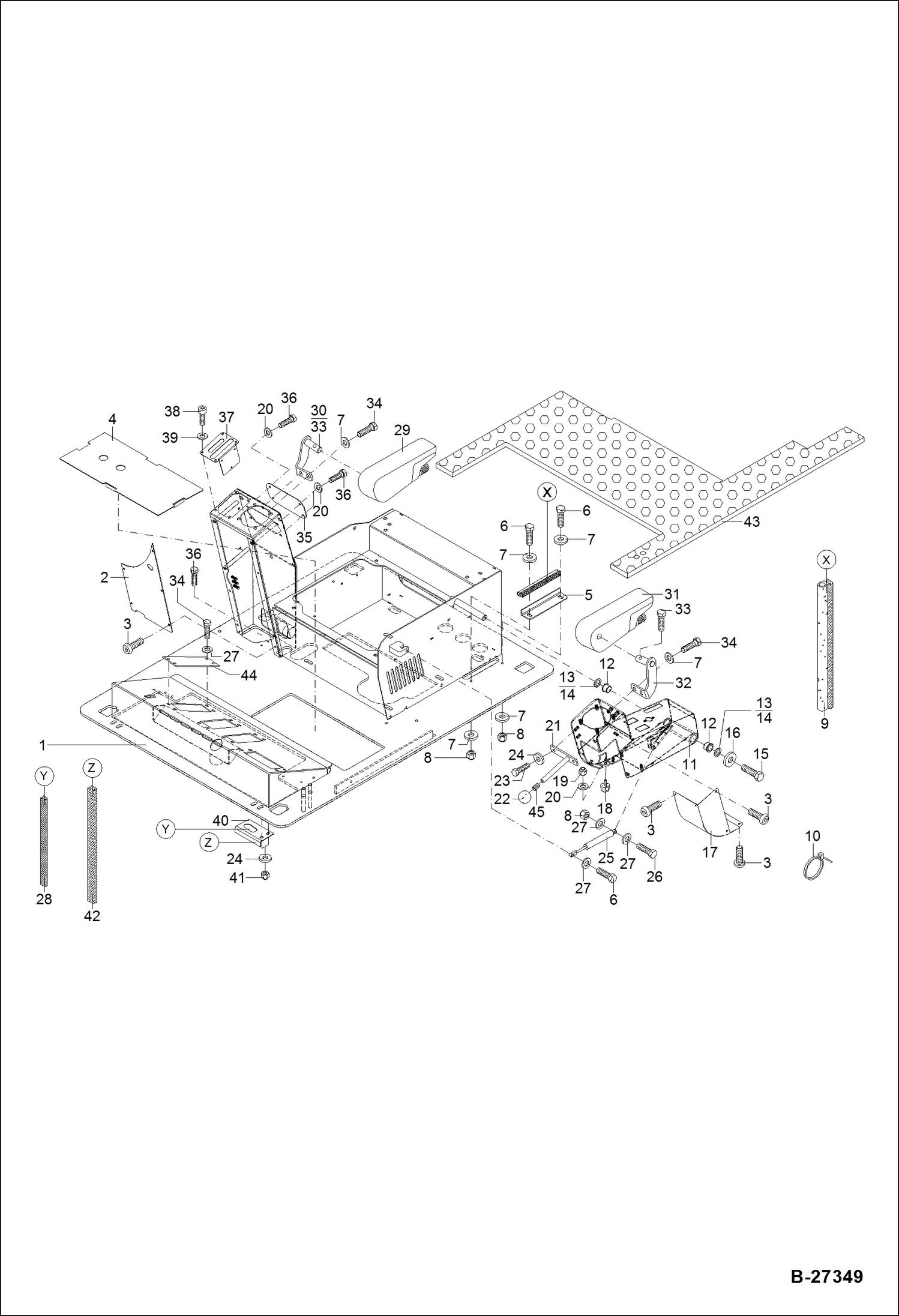

Запчасти Bobcat ZX75 FLOOR FRAME S/N XXXX/2841 & Bel MAIN FRAME

1

6234026002

FLOOR FRAME

2

6190026030

COVER

3

1125907909

BOLT M 5X16

4

6190026045

COVER

5

0202508020

BRACKET SUPPORT

6

1008707618

BOLT M 8X30

7

1343707057

WASHER 8,4

8

1212251011

NUT M 8

9

7023313

SEALING SECTION - A

10

5653093560

BINDER 4,8X200

11

6234026020

ARM REST

12

0191114138

BUSHING

13

1309412411

SHIM 20X28X1

14

1309412124

SHIM 20X28X2

15

1008707423

BOLT M 10X16

16

1307707020

WASHER 10,5

17

6190026029

COVER

18

5101290955

STOP

19

1212251009

NUT M 6

20

1290707014

WASHER 6,4

21

6209026060

ROD W/Ref. 22,45

22

1541930627

BALL KNOB

23

1008707513

BOLT M 6X25

24

1343707055

WASHER 6,4

25

5696636551

GAS PRESSURE SPR.

26

1008707019

BOLT M 8X40

27

1290707018

WASHER 8,4

28

5354600010

RUBBER PROFILE

29

5305661702

ARMREST, RIGHT

30

0190026050

BRACKET

31

5305661701

ARMREST, LEFT

32

0190026054

BRACKET

33

5305661749

BOLT

34

1008707318

BOLT M 8X25

35

6190026058

COVER

36

1008707912

BOLT M 6X16

37

6190026040

ANGLE PLATE

38

1045707909

BOLT M 5X16

39

1290707012

WASHER 5,3

40

6190026057

COVER

41

1210707009

NUT M 6

42

5354600000

EDGE PROTECTION

43

0190111005

FLOOR MAT

44

6154506022

COVER

45

5666660925

SLEEVE
