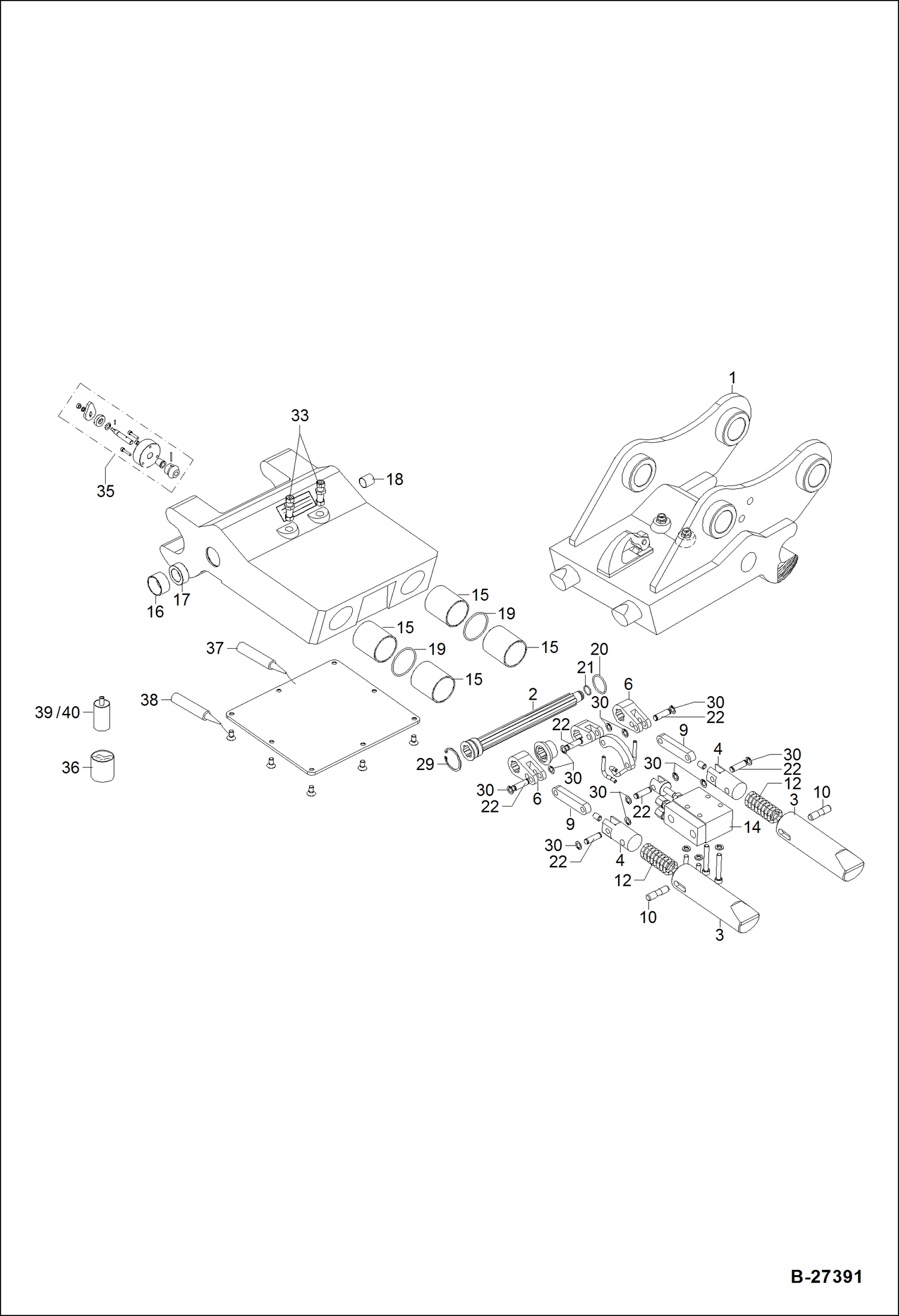

Запчасти Bobcat ZX75 HYDRAULIC QUICK MOUNT HITCH - HM08 ACCESSORIES & OPTIONS

1

MOUNT, HITCH QUICK NLA - HM08

2

5455660482

SHAFT

3

5455660483

PIN

4

5455660484

PIN

6

5455660489

CATCH

9

5455660488

REVERSING LEVER

10

5455660486

PIN

12

5455660491

SPRING

14

5455660766

HYDRAULIC CYLINDER

15

5455660493

BUSHING

16

5455660494

BUSHING

17

5455660495

BUSHING

18

5455660496

BUSHING

19

5455660497

O-RING

20

5455660498

O-RING

21

5455660499

O-RING

22

5455660500

PIN

29

5455660504

CIRCLIP

30

5455660505

CIRCLIP

33

5455660767

FITTING

35

5455660768

MECHANICAL INDICATOR

36

4315005053

GREASE, TUBE 5KG

37

MCS001041A

SEAL JOINT

38

MCS001035A

GLUE

39

MCS005003A

SPRAY

40

MCS005002A

CLEANER, MOUNT QUICK
