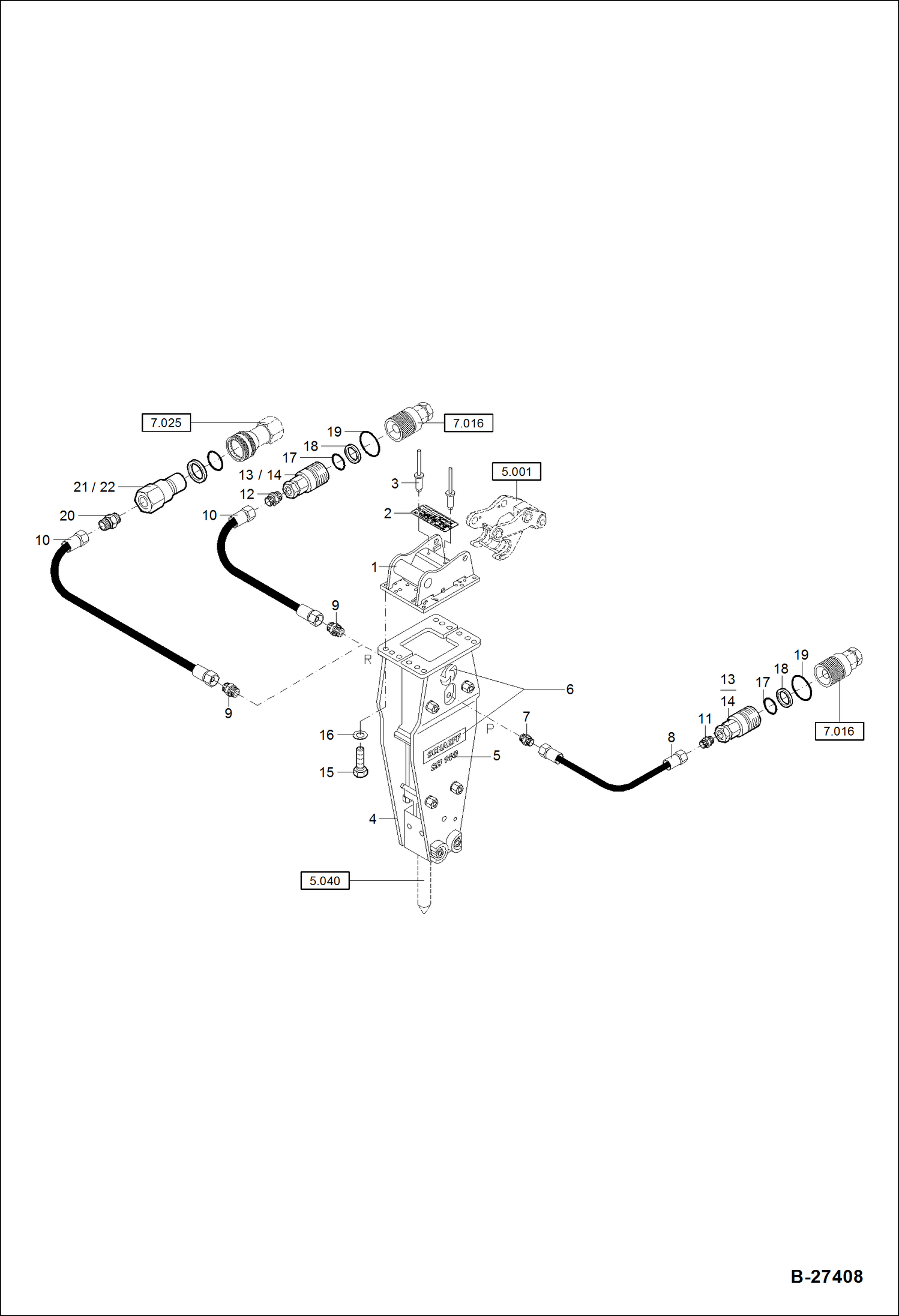

Запчасти Bobcat ZX75 HYDRAULIC HAMMER WITH HYDRAULIC INSTALLATION SH 140 ACCESSORIES & OPTIONS

1

6203250002

BRACKET

2

PLATE, NAME NLA

3

1940000939

RIVET

4

5523655682

HYDRAULIC HAMMER SH 140

5

5358608802

LABEL SH 140

6

5358608799

LABEL SCHAEFF SCHAEFF-LOGO

7

5000009105

FITTING

8

4266150403

HOSE

9

1915000235

FITTING

10

4270150409

HOSE

11

1915060566

FITTING

12

1915060667

FITTING

13

5260301140

COUPLING SOCKET W/Ref. 17-19

14

5260301147

COVER NUT

15

1008707752

BOLT M 20X50

16

1290707033

WASHER 21X37X3

17

1970956629

O-RING

18

5260301146

BACK UP RING

19

1970956830

O-RING

20

5000009100

HOSE CONNECTOR

21

5000105100

COUPLING PLUG

22

5000106000

DUST CAP
