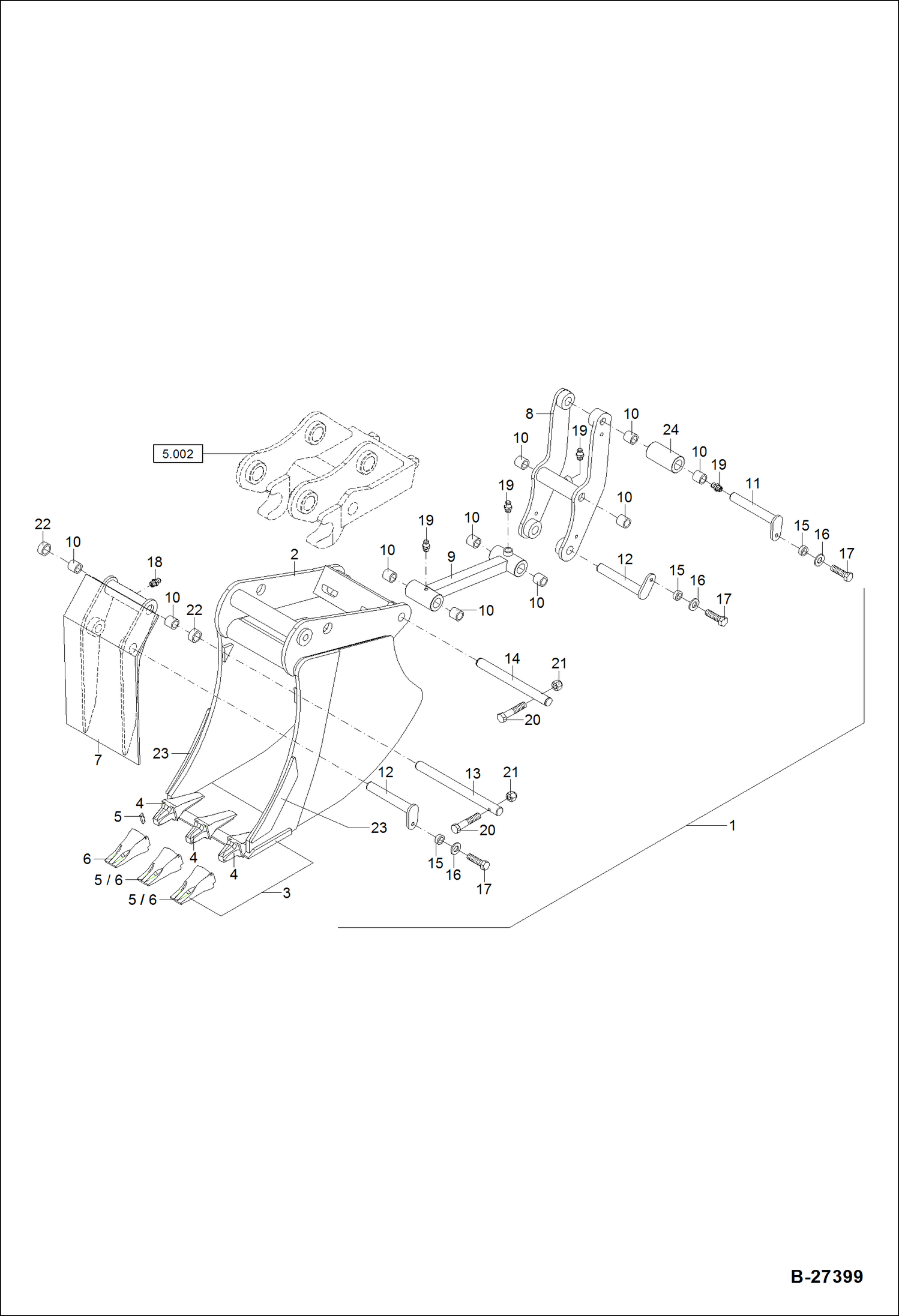

Запчасти Bobcat ZX75 BUCKET WITH SCRAPER - MS08 ACCESSORIES & OPTIONS

1

6190290700

BUCKET CPL 400 MM -

2

5018001074

BUCKET 400 MM - W/ Ref. 3, 23

3

5018001075

CUTTING EDGE 400 MM

4

5455660446

BRACKET

5

5455660447

LOCK

6

5455660445

TOOTH, BUCKET

7

5018001079

EJECTOR 400 MM

8

5018001080

BUCKET LINK

9

5018001081

ROD

10

5018001082

BUSHING

11

5018001083

PIN

12

5018001083

PIN

13

5018001084

PIN

14

5018001085

PIN

15

5018001086

BUSHING

16

1290707020

WASHER 10,5

17

1008707923

BOLT M 10X25

18

1609010008

GREASE ZERK

19

1607010008

GREASE ZERK

20

1007707919

BOLT M 8X70

21

1212251011

NUT M 8

22

5018001090

BUSHING

23

5018001089

CUTTING EDGE

24

5018001088

BUSHING
