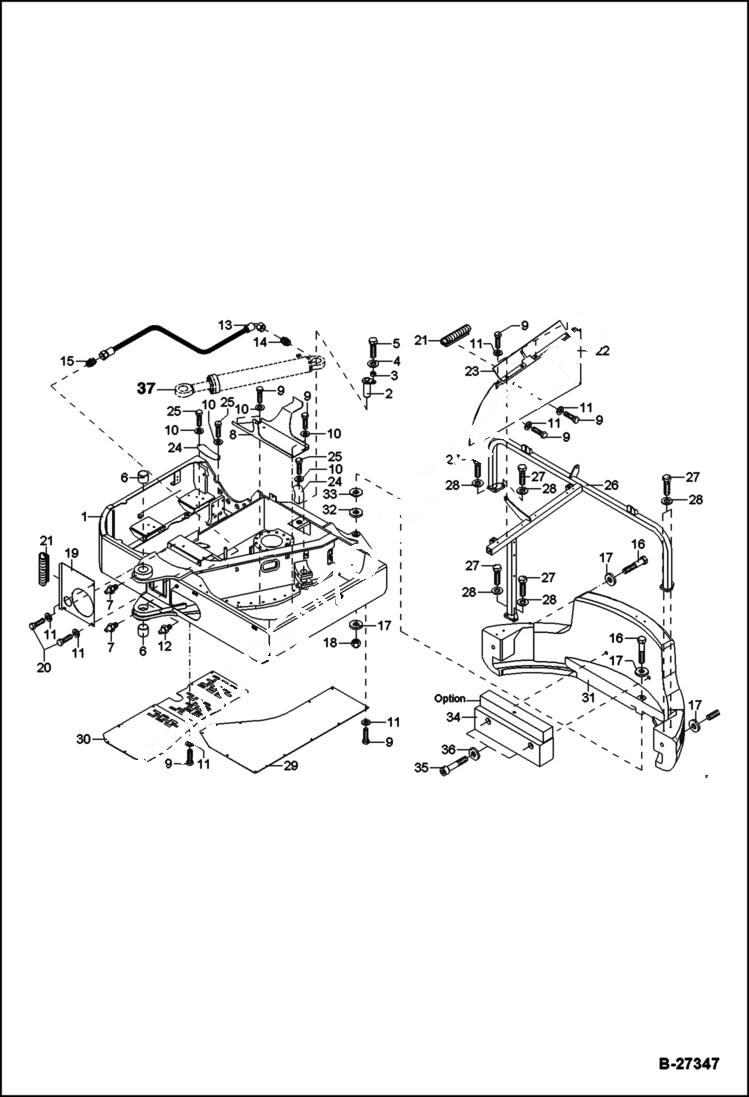

Запчасти Bobcat ZX75 UPPER CARRIAGE MAIN FRAME

1

0234005001

UPPERCARRIAGE

2

0154624120

PIN

3

0156029033

SPACER

4

1343707061

WASHER 13

5

1008707829

BOLT M 12X30

6

5809625676

BUSHING

7

1607003006

GREASE NIPPLE M 6X1

8

6190006120

BATTERY BRACKET

9

1008707018

BOLT M 8X20

10

1290707018

WASHER 8,4

11

1343707057

WASHER 8,4

12

1607003010

GREASE NIPPLE M 10X1

13

0190006009

HOSE

14

1915060582

ADAPTER

15

1915060551

FITTING

16

1007707355

BOLT M 20X180

17

1343707069

WASHER 21X44X8

18

1212251018

NUT M 20

19

6234006030

COVER

20

1008707618

BOLT M 8X30

21

7025098

SEAL, BULK/MTR - A

22

6190006034

PLATE

23

6190006036

PLATE

24

6190006025

PLATE

25

1008707817

BOLT M 8X16

26

0234528050

FRAME

27

1008707030

BOLT M 12X35

28

1343707059

WASHER 10,5X25X4

29

6190028071

COVER

30

6190028173

COVER

31

0190147010

COUNTERWEIGHT

32

0209006046

WASHER 25X60X2,99

33

6209006047

WASHER 25X60X2

34

6190128020

COUNTERWEIGHT

35

1045707143

BOLT M 16X160

36

1343707065

WASHER 17

37

CYLINDER, ARTICULATION See Illustration HYDRAULIC CYLINDER - ARTICULATION/ B27476
