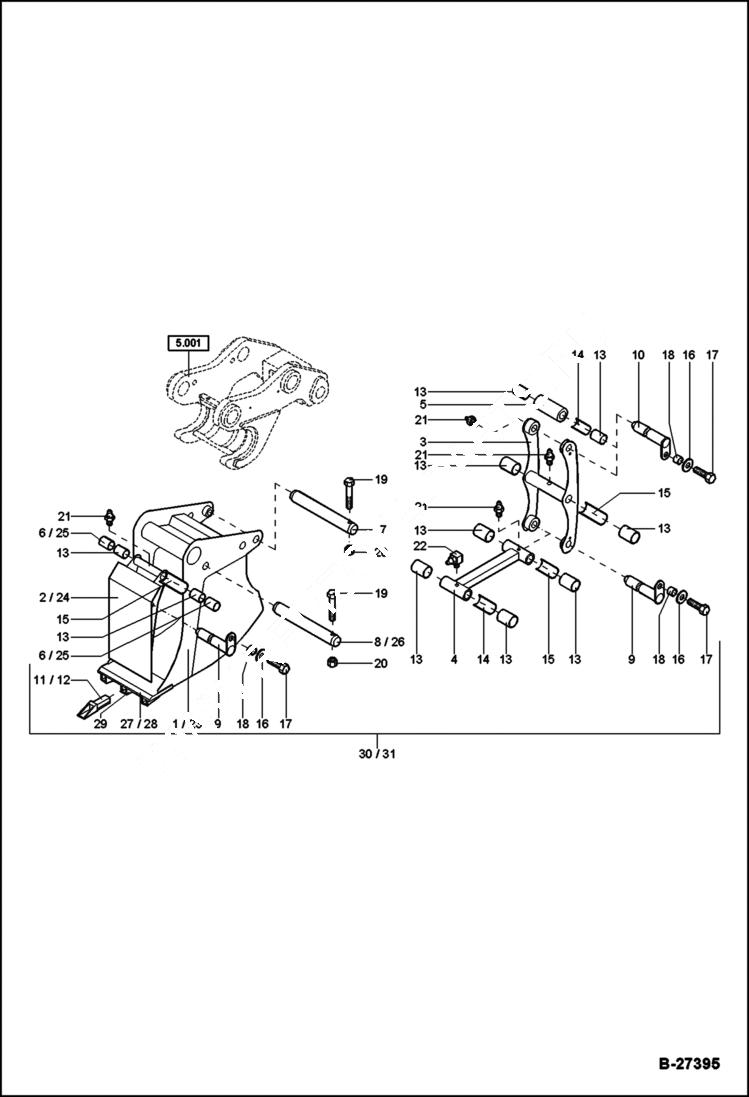

Запчасти Bobcat ZX75 BUCKET WITH SCRAPER, 350, 450 MM ACCESSORIES & OPTIONS

1

6223268002

BUCKET - 350MM 350 MM

2

6223268005

EJECTOR 350 MM

3

6151720006

BUCKET LINK

4

6151720107

LINKAGE

5

6151720008

BUSHING

6

6223268008

BUSHING 350 MM

7

0151720014

PIN

8

0223268014

PIN 350 MM

9

0151720015

PIN

10

0151720018

PIN

11

5455197000

TOOTH

12

5455700096

TOOTH CUP Was 5455205000 - A

13

5557203105

BUSHING

14

6223268010

SPACER

15

6223268011

BUSHING

16

1343707061

WASHER

17

1008707529

BOLT

18

0333023033

SPACER BUSHING

19

1007707020

BOLT

20

1212251011

NUT

21

1607003010

GREASE NIPPLE

22

1609003010

GRAESE NIPPLE

23

6223264002

BUCKET 450 MM

24

6223264005

EJECTOR 450 MM

25

6223264008

BUSHING 450 MM

26

6151721014

PIN 450 MM

27

6223268035

BLADE 350 MM

28

6151721036

BLADE 450 MM

29

5455197100

SLEEVE

30

6223268000

BUCKET 350 MM - Ref. 1-22,27,29,

31

6223264000

BUCKET 450 MM - Ref. 3-5,7,9-26,28,29
