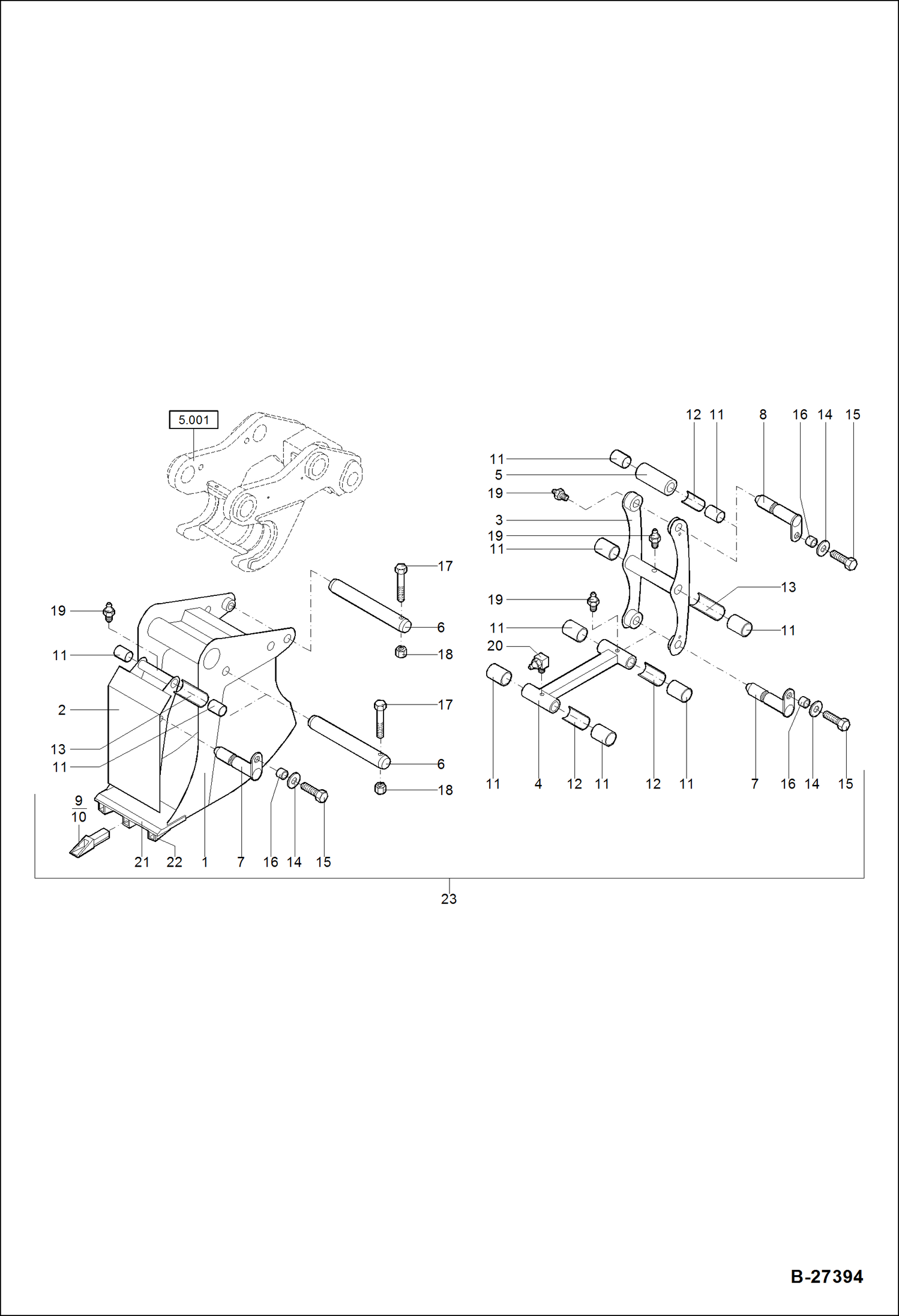

Запчасти Bobcat ZX75 BUCKET WITH SCRAPER ACCESSORIES & OPTIONS

1

6223263002

BUCKET - 290MM 290 MM

2

6223263005

EJECTOR

3

6151720006

BUCKET LINK

4

6151720107

LINKAGE

5

6151720008

BUSHING

6

0223263014

PIN

7

0151720015

PIN

8

0151720018

PIN

9

5455197000

TOOTH

10

5455700096

TOOTH CUP Was 5455205000 - A

11

5557203105

BUSHING

12

6223268010

SPACER

13

6223268011

BUSHING

14

1343707061

WASHER

15

1008707529

BOLT

16

0333023033

SPACER BUSHING

17

1007707020

BOLT

18

1212251011

NUT

19

1607003010

GREASE NIPPLE

20

1609003010

GRAESE NIPPLE

21

6151720024

BLADE

22

5455197100

SLEEVE

23

6223263000

BUCKET 290 MM - Ref. 1-22
